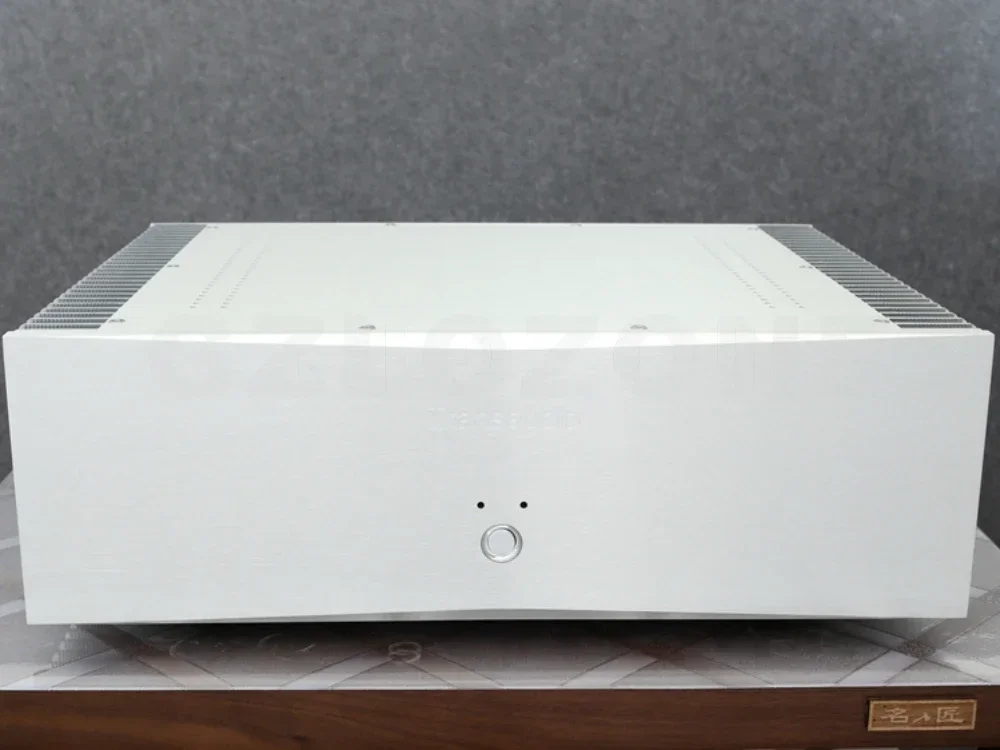

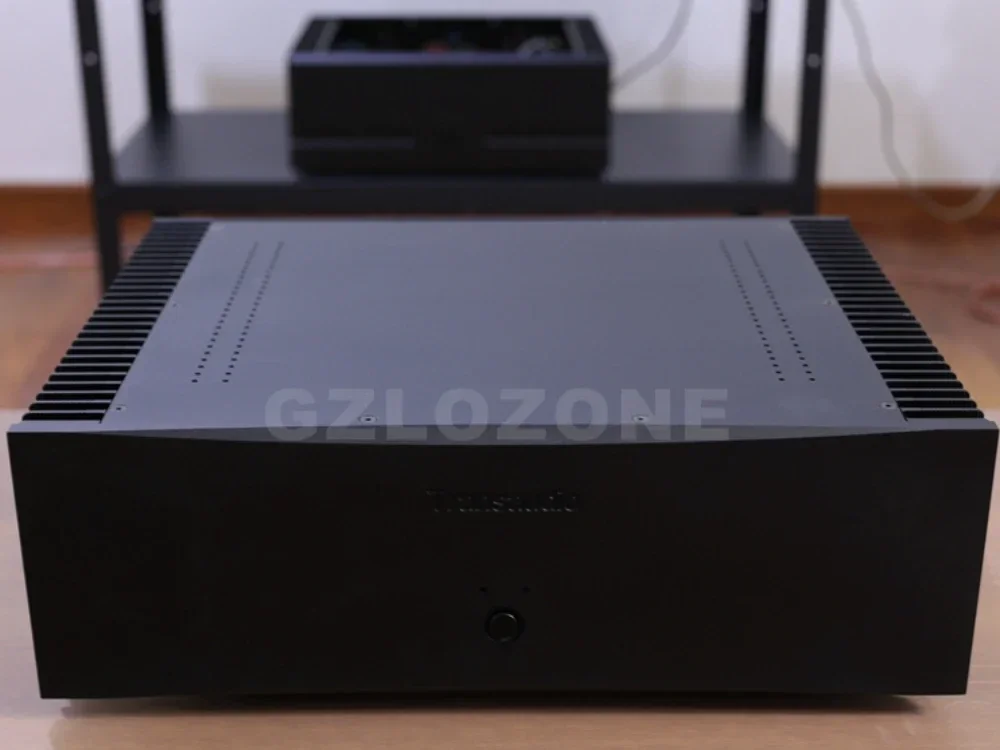

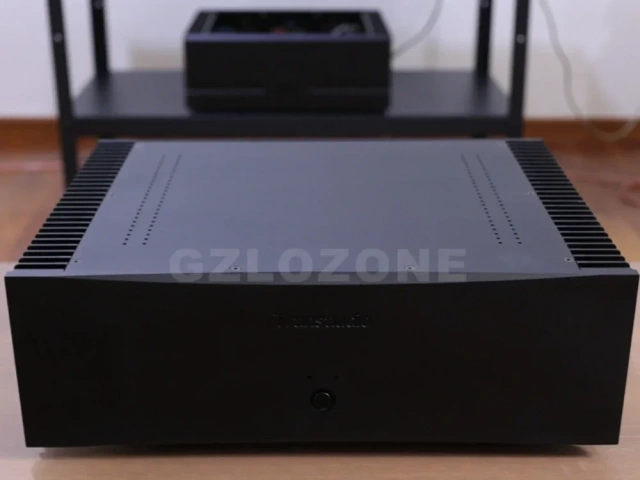

Balanced Version FM801 Circuit HiFi Audiophile Level Dual Channel Pure Power Amplifier Supports XRL Input 250W+250W

Name: Balanced Version FM801 Circuit HiFi Audiophile Level Dual Channel Pure Power Amplifier Supports XRL Input 250W+250W
Brand: FYFAUDIO
SKU: 传声-FM801线路 250W*2 发烧级双声道纯后级功放
Price: 562 USD
Availability: InStock

0.0 (0)

$562.00 ~~$665.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

Compared with FM711, FM801 has larger output power, better control, and improvements
1. Increased to 1200w Nippon Steel Transformer
2. Larger case, three-dimensional big circle
3. The output power reaches 250w/8 ohms
4. Single-ended/balanced input switching (added in version 2022)

Features

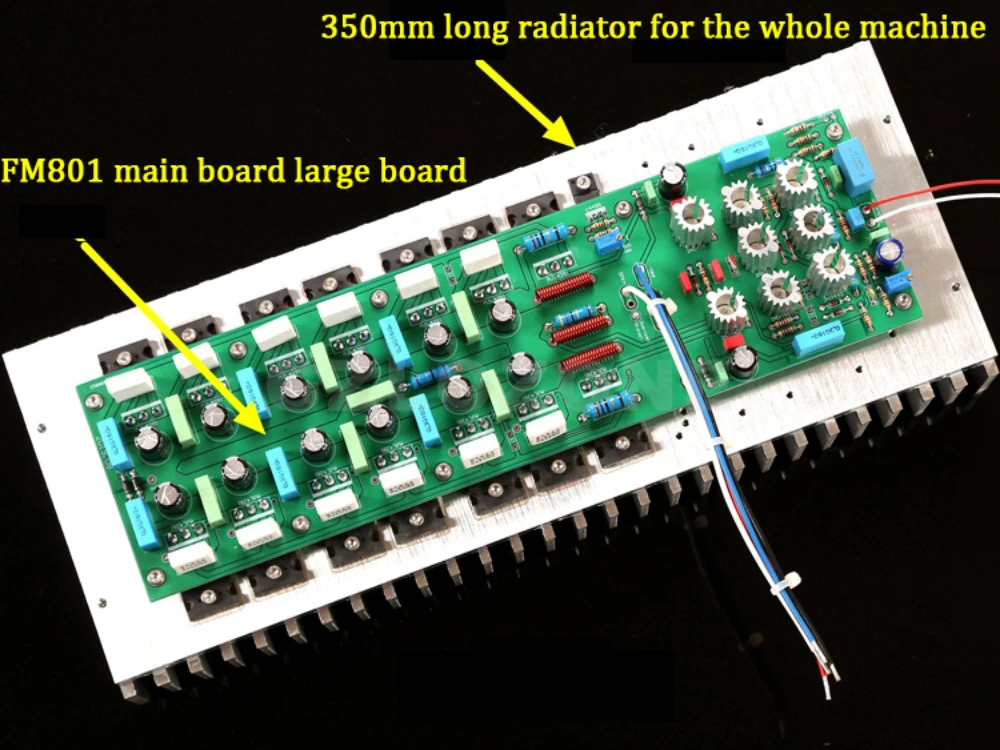

FM original parameter core line.
Left and right channels are completely independent with no electrical connection.
Beyond the layout of the original machine, the whole machine is super stable without any noise.

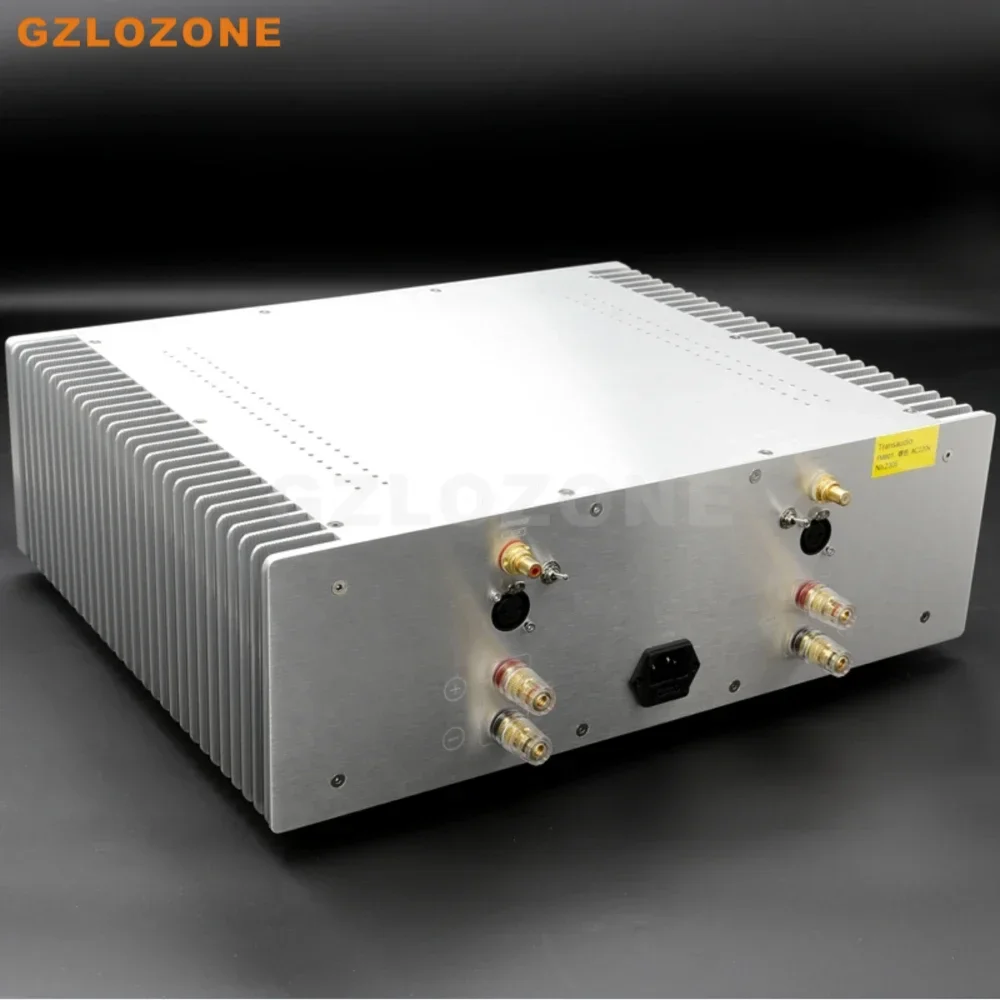

This machine has a single-ended, balanced 2-way input, which can be connected to 2 pre-stages, using relay switching.

Material production
16 new test pairs (<1%) gold sealed tubes 2N3440/5416 produced in recent years.
Test paired with a group of 28 (<1%) of the brand new Toshiba 5200 made in Japan, which needs to be selected among thousands.
Each large tube is connected in parallel with decoupling capacitors and decoupling electrolytic capacitors.

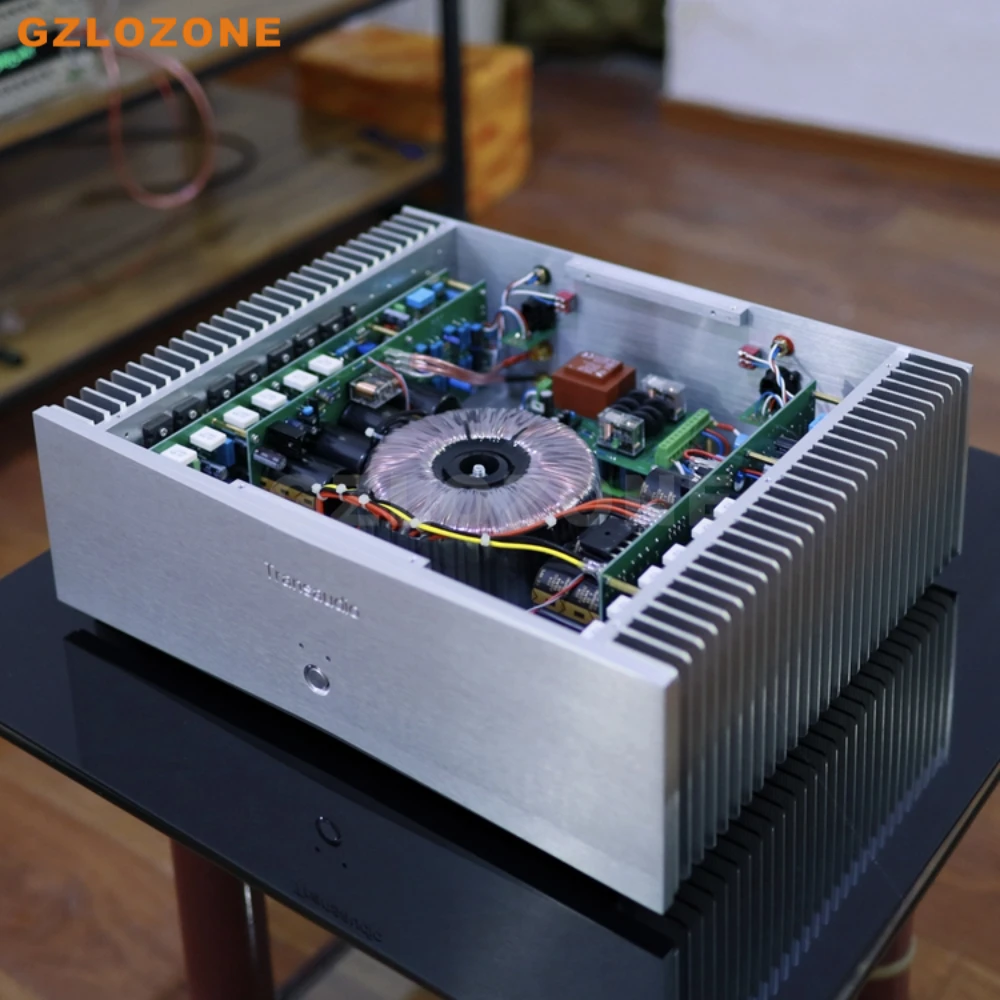

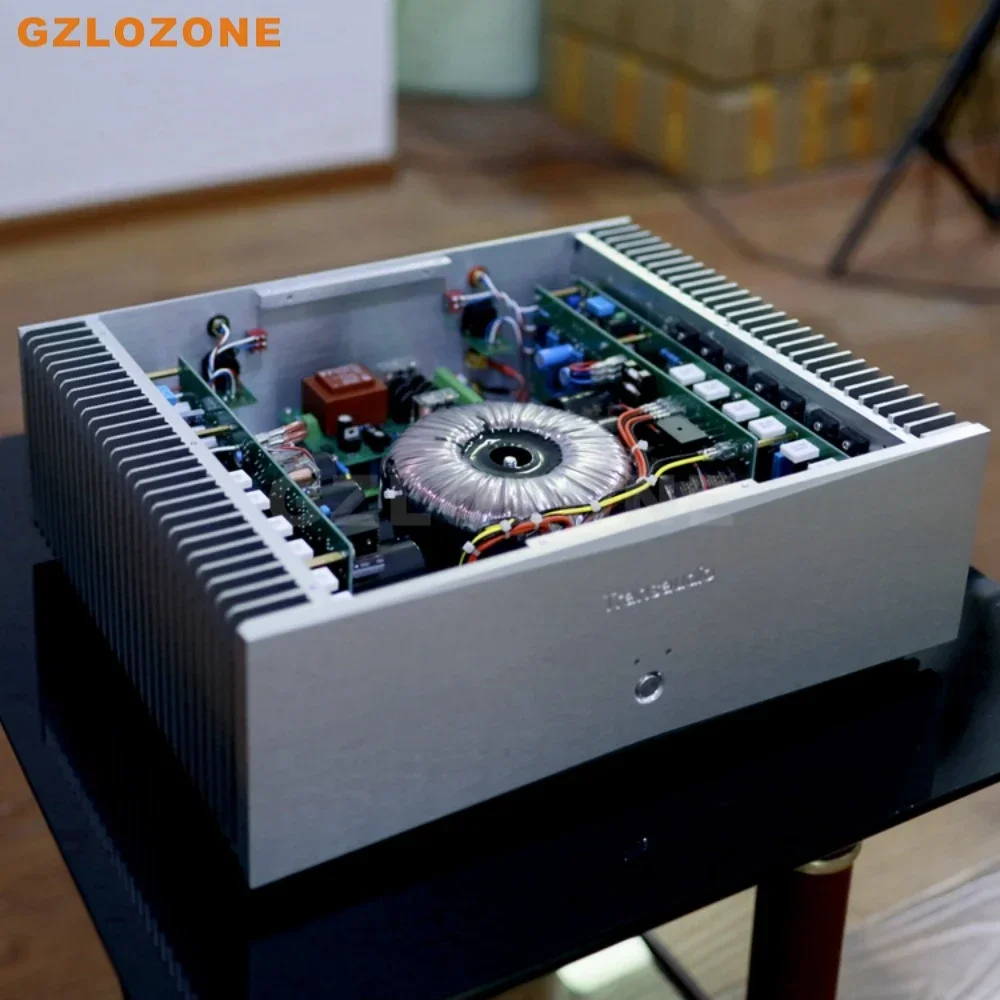

1200w high quality Nippon Steel transformer, independent winding for left and right channels.
80000uF ELNA FOR AUDIO high quality capacitor.
Boot soft start and perfect horn protection circuit.

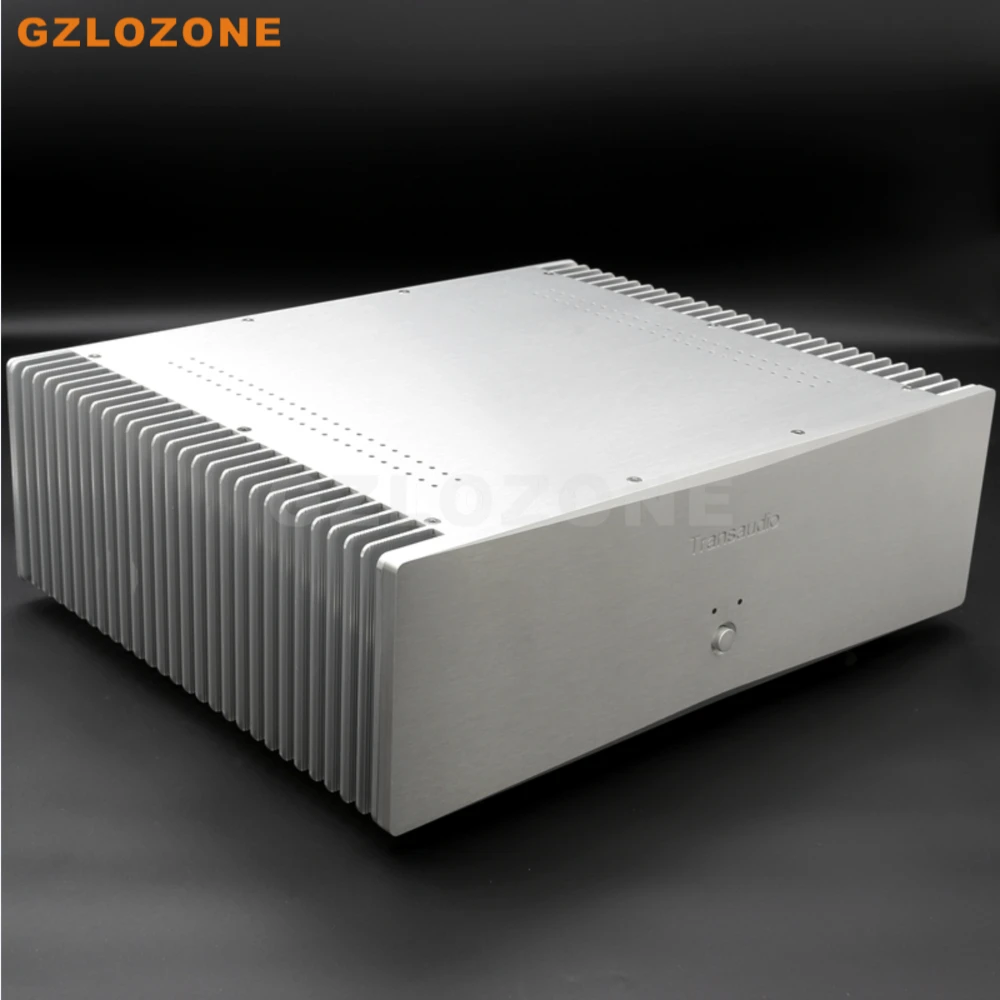

CNC precision CNC machine tool processing all aluminum chassis 450*155*362mm.
AC110V or AC220V, silver or black optional.

Index parameter
Machine weight: 22KG
Output power: 250w/8 ohms, 500W/4 ohms RMS power, full power long-term stable output.
Static power consumption: 110w
Output midpoint: 1mV
Output noise: 0.2mV SNR: 120DB super low, the lowest among our power amplifiers.
