Balanced Version JV15 128 Steps Relay Remote Volume Controller + Dual Display

Name: Balanced Version JV15 128 Steps Relay Remote Volume Controller + Dual Display
Brand: FYFAUDIO
SKU: 小海-JV15继电器50K128级平衡版本散件
Price: 68 USD
Availability: InStock

0.0 (0)

$68.00 ~~$85.00~~ (20% OFF)

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

Note:
If you choose the "DIY kit" all the parts will need yourself to solder and test.
If you choose the :Assembled board" we will solder and test it well before shipping.

This is the Balanced version. Support 4 way inputs. one way output.

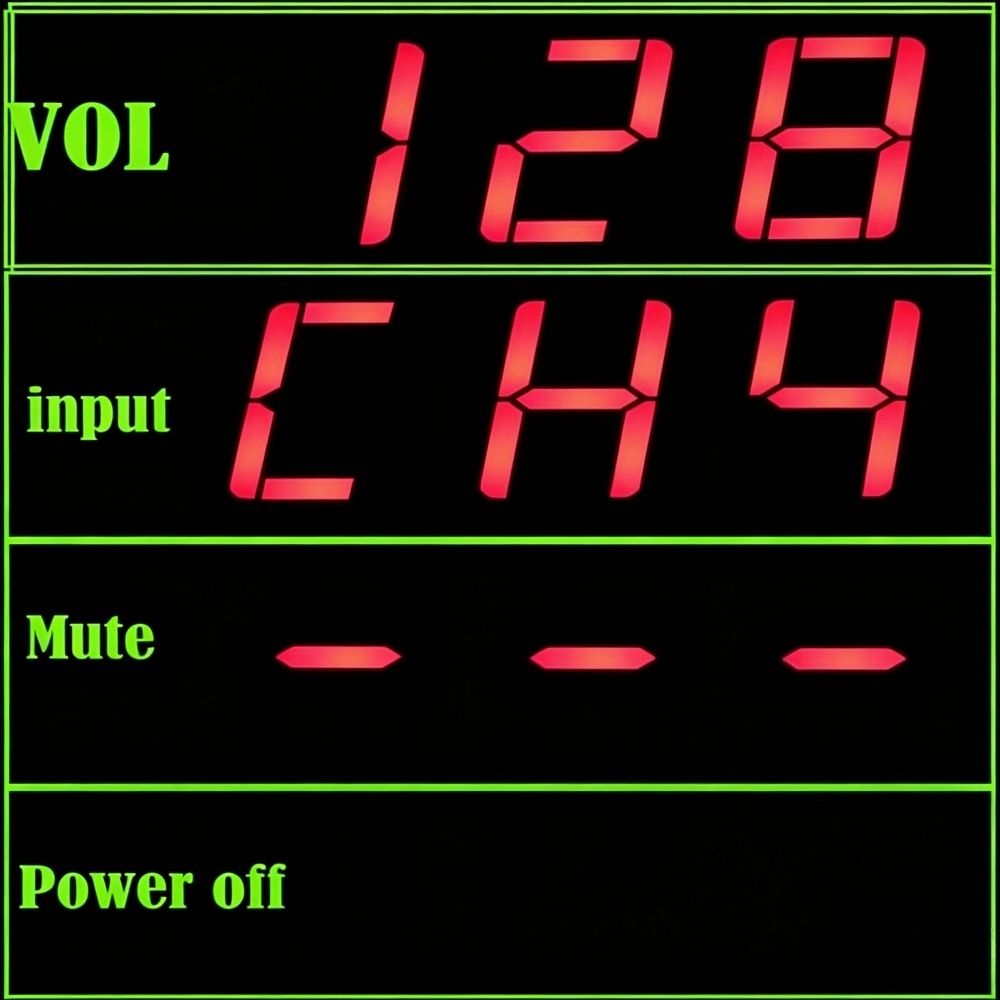

Display Text color: Red
Works voltage: AC12V
Constant input impedance 50K;
With memory function,
4 relays for 4 inputs, 7 relay for 128 volume, stepping 0.5dB, the total attenuation 63.5dB;
(Balanced version Construct by 2 of the relay boards)

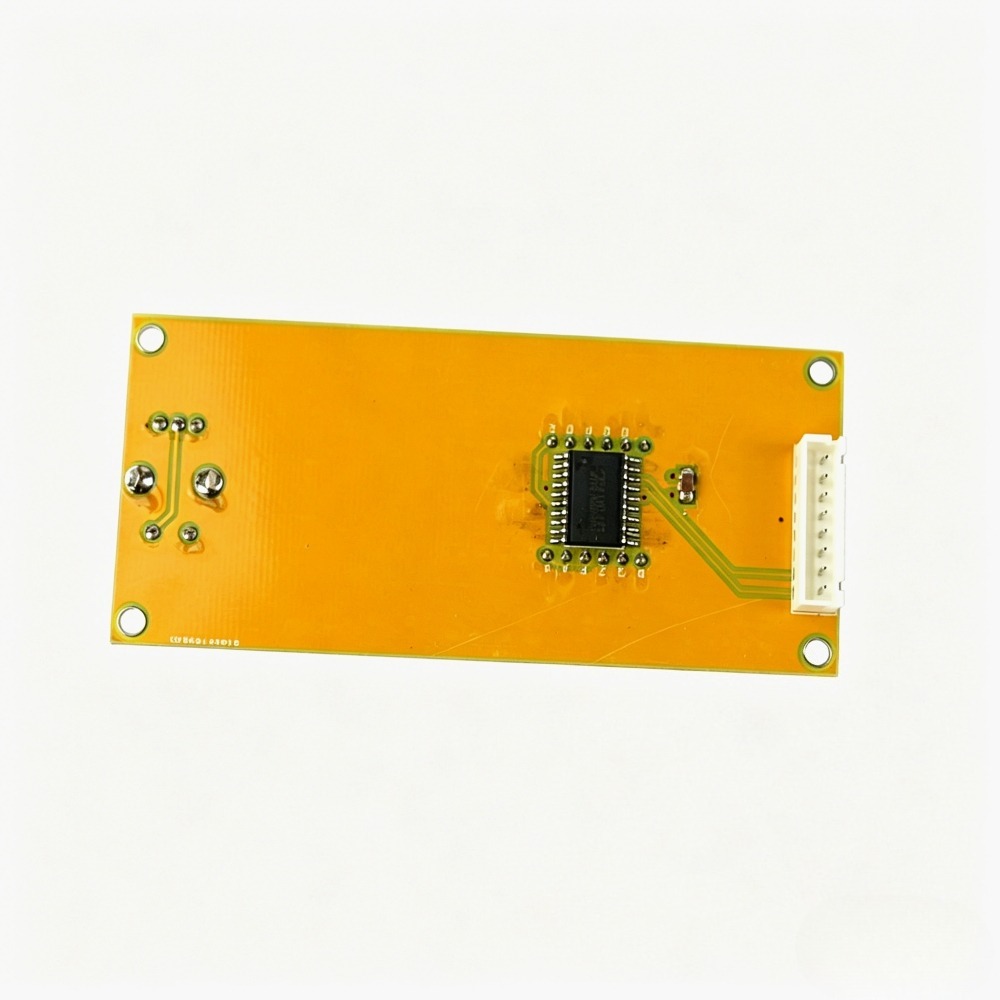

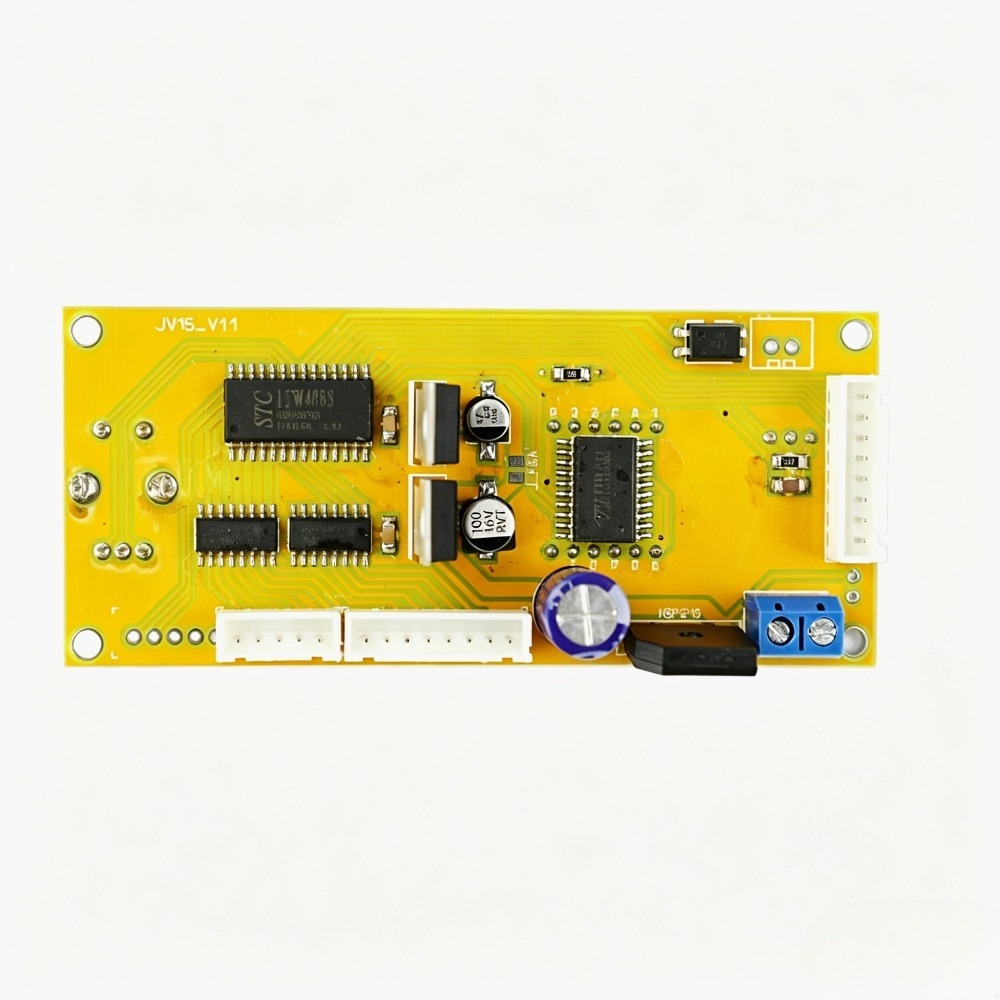

Control board PCB size: 100MM*44MM
Volume board PCB size 100MM * 36MM,
Signal switching board size 55MM * 36MM;

(Default the Volume board PCB and signal switching board are connect at together. it can be
Split)

Volume board only relay and resistors, sound is pure, fresh;

Constant input impedance, the real index type, regulate smooth; use DALE PHILIPS VISHAY resistors + Japan NEC relays, the sound quality is guaranteed;

Taiwan coding switch, rotate left and right to adjust the volume, press choose input Audio, long press to Power ON/OFF

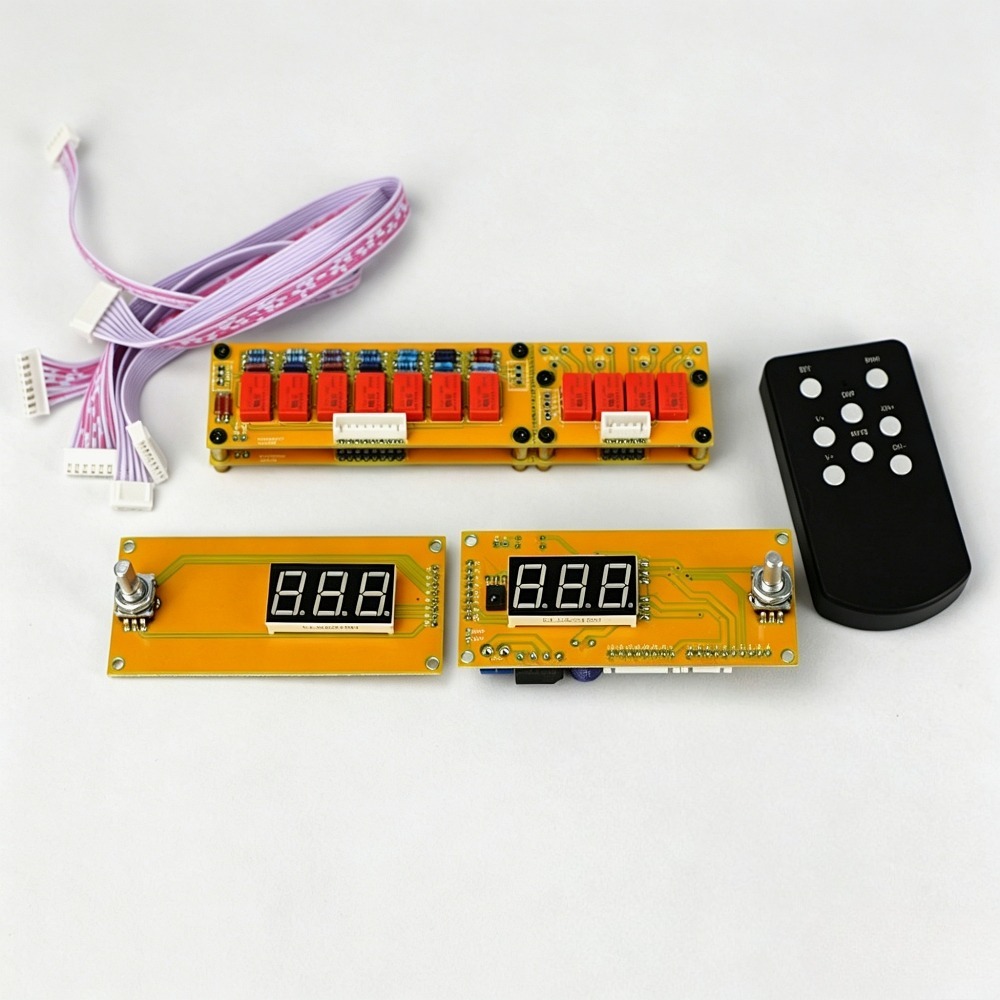

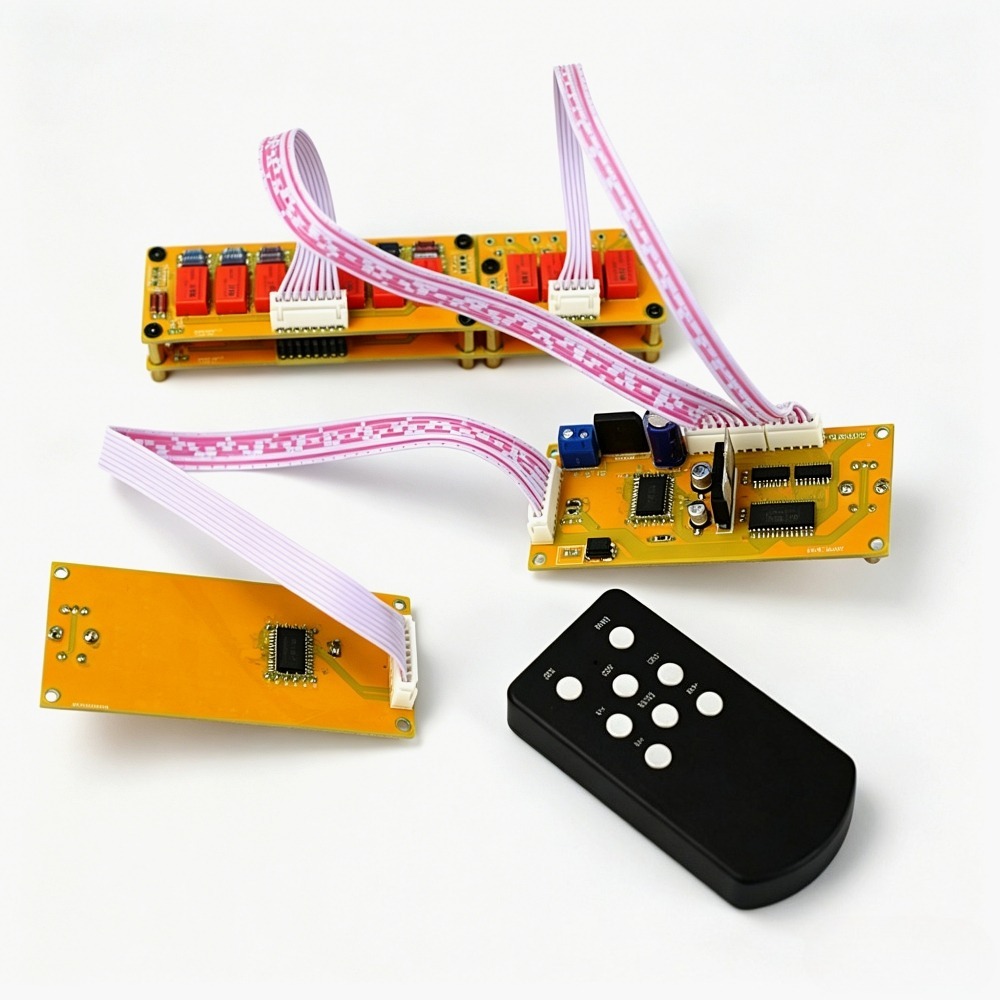

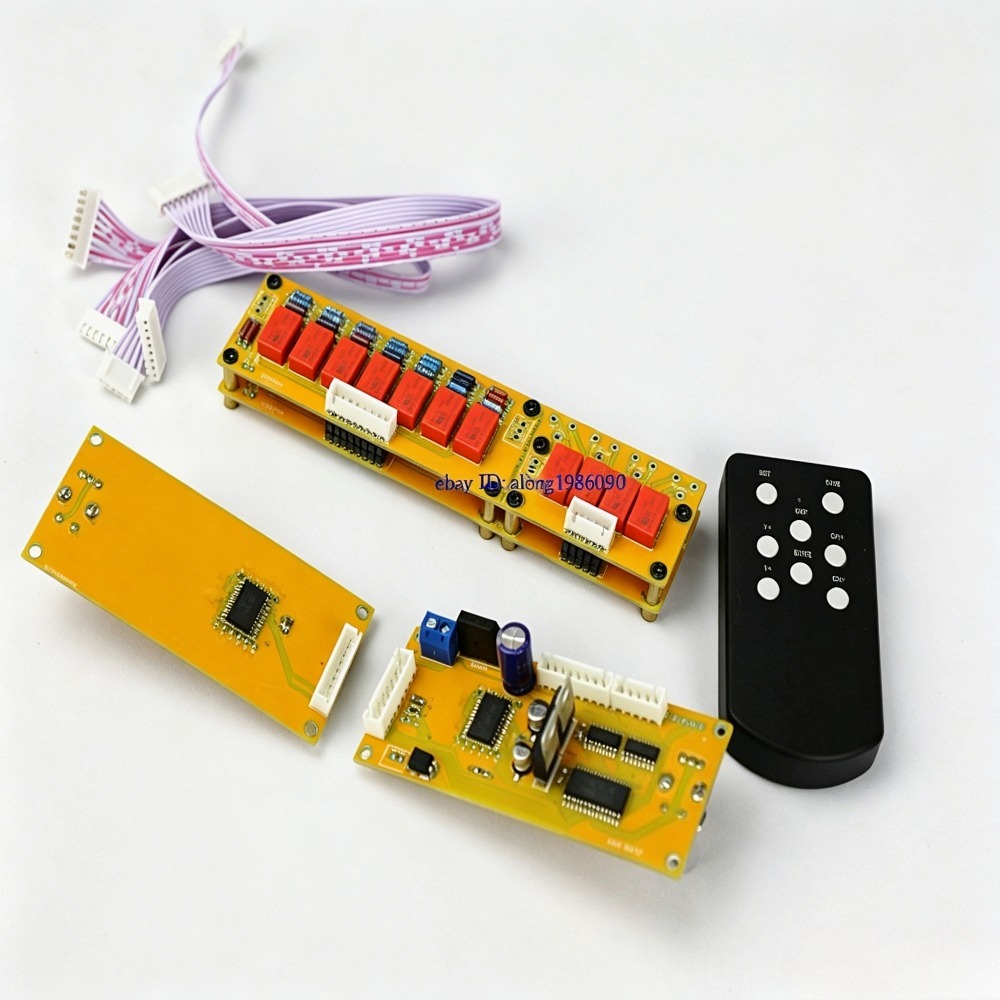

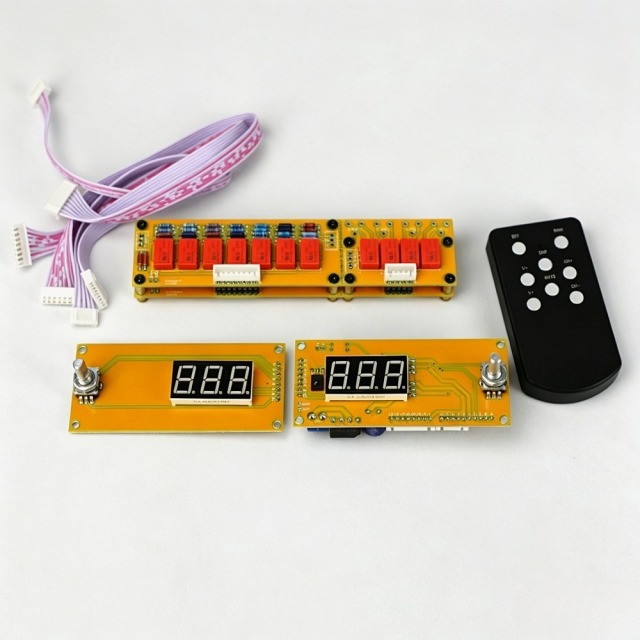

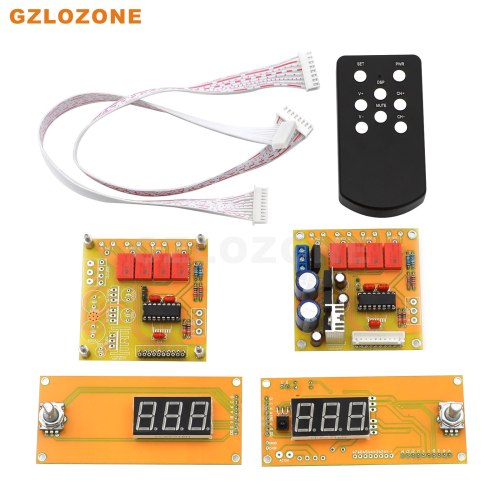

Package included:
Balanced HIFI remote volume board/kit x 1
Aluminum remote x 1(no battery)
Connect wires
