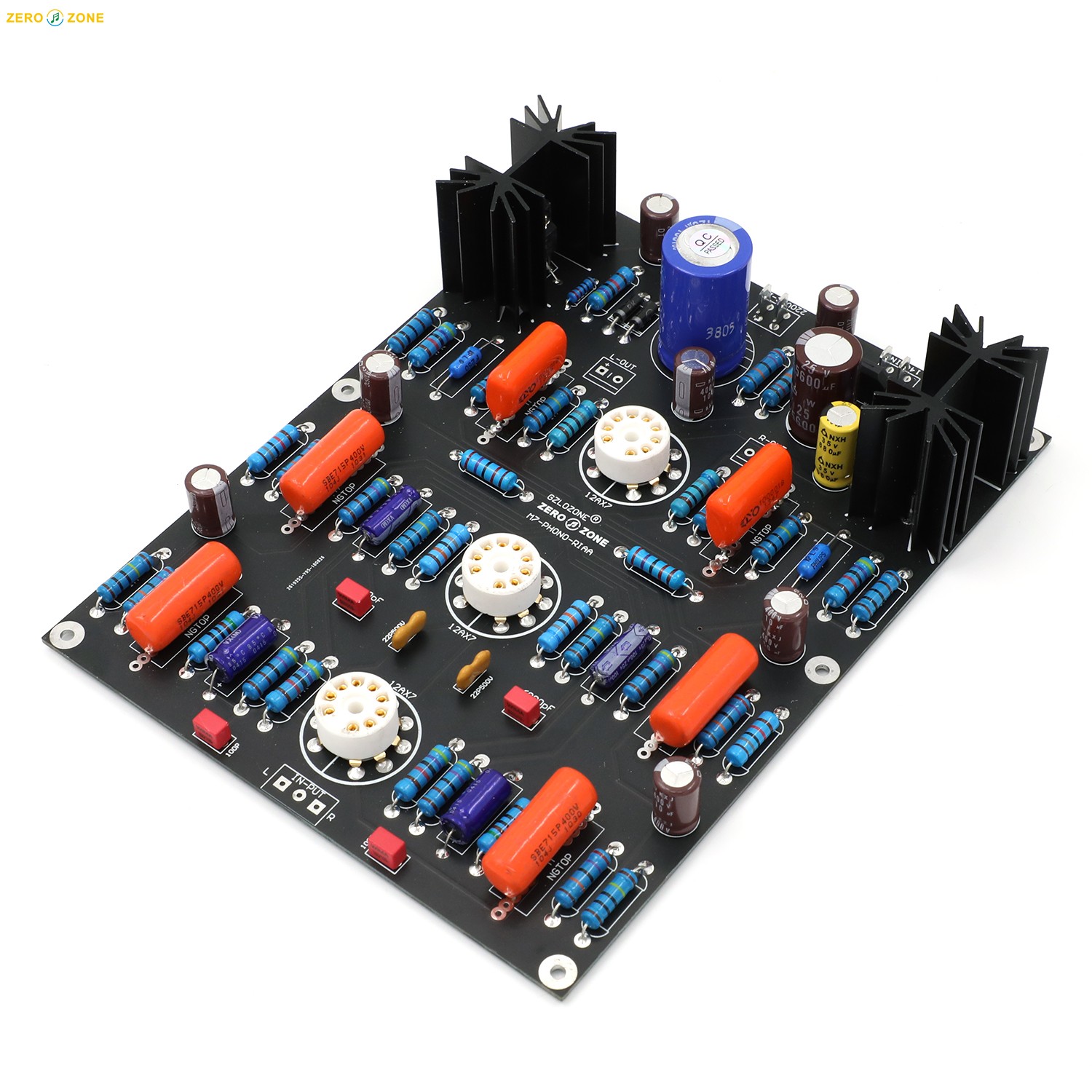

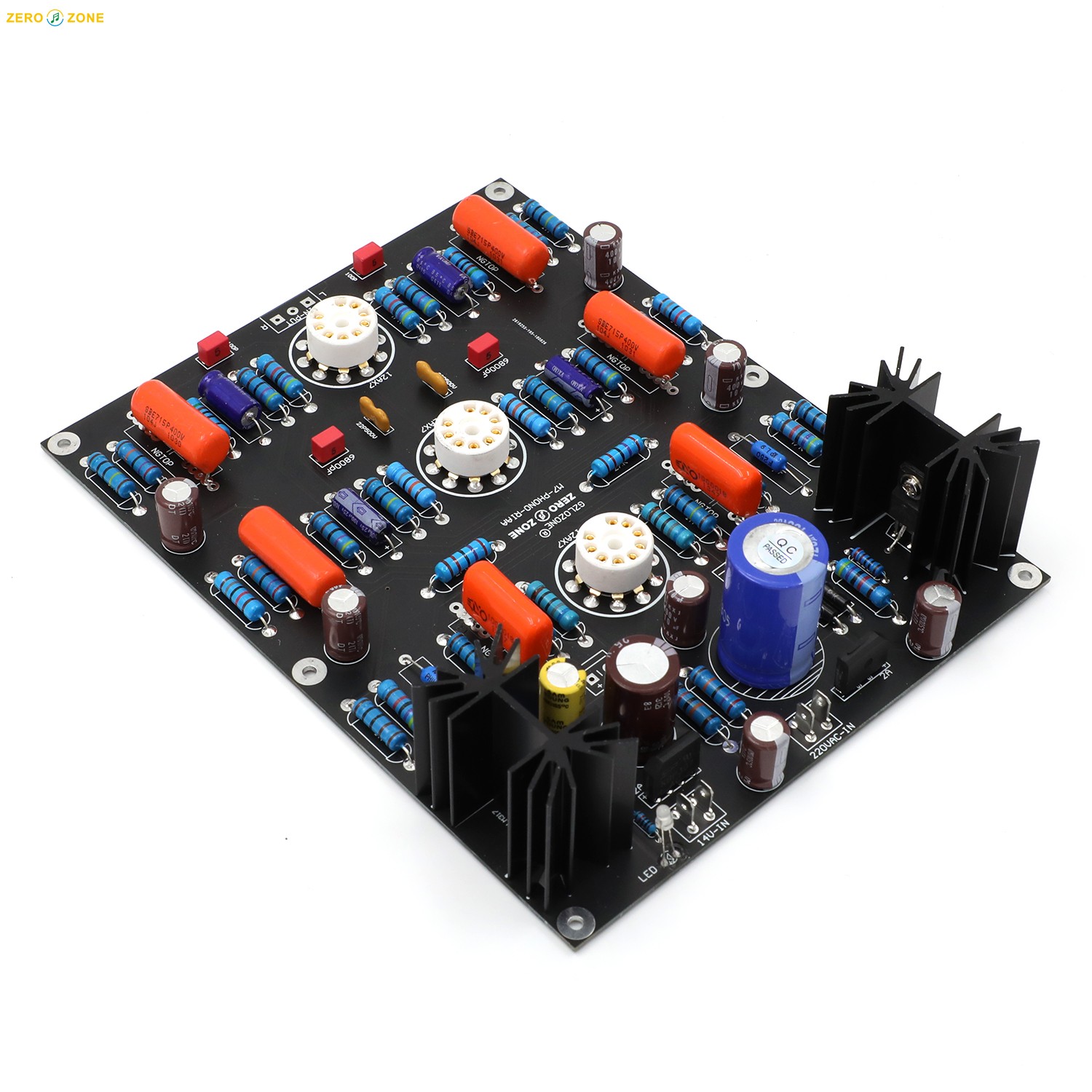

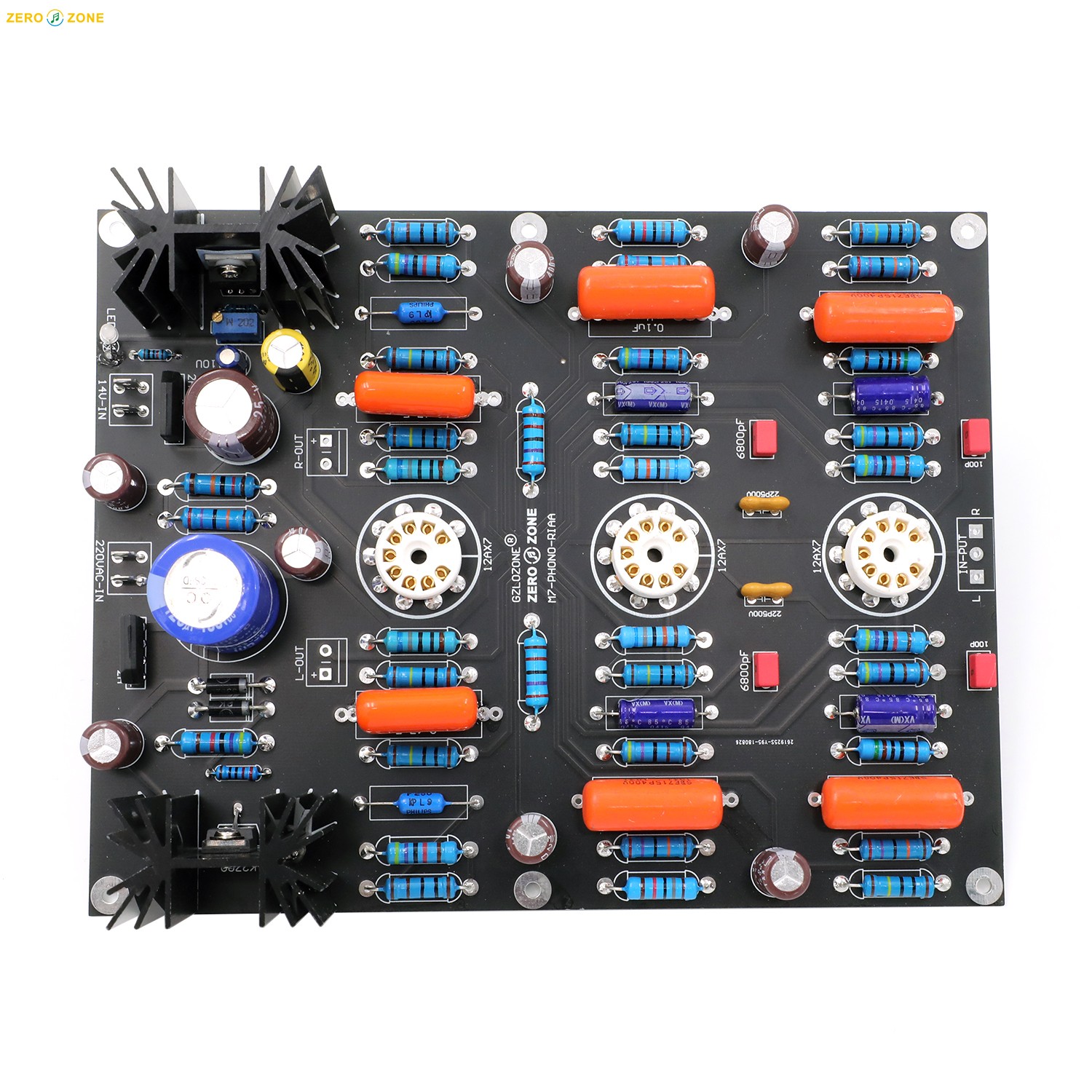

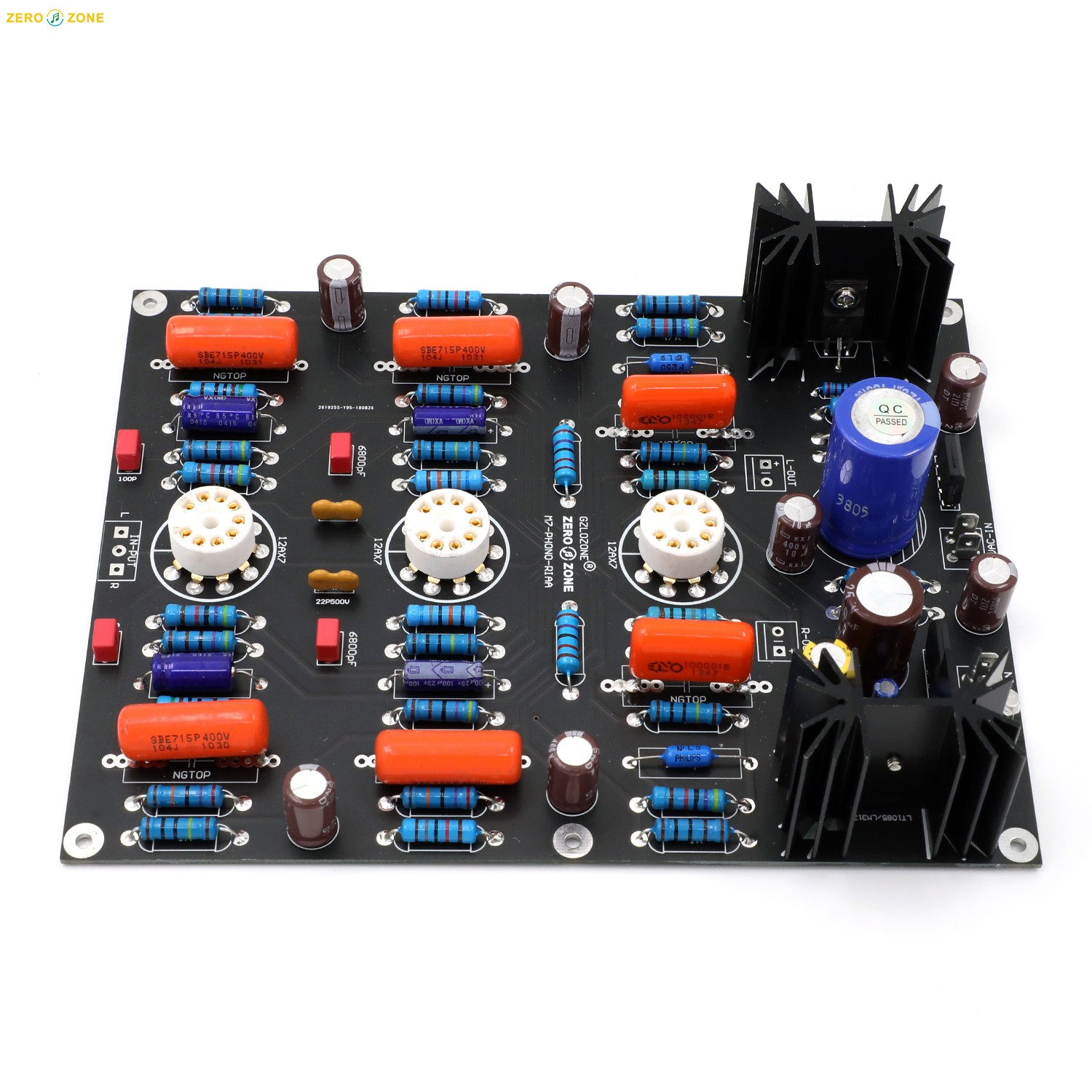

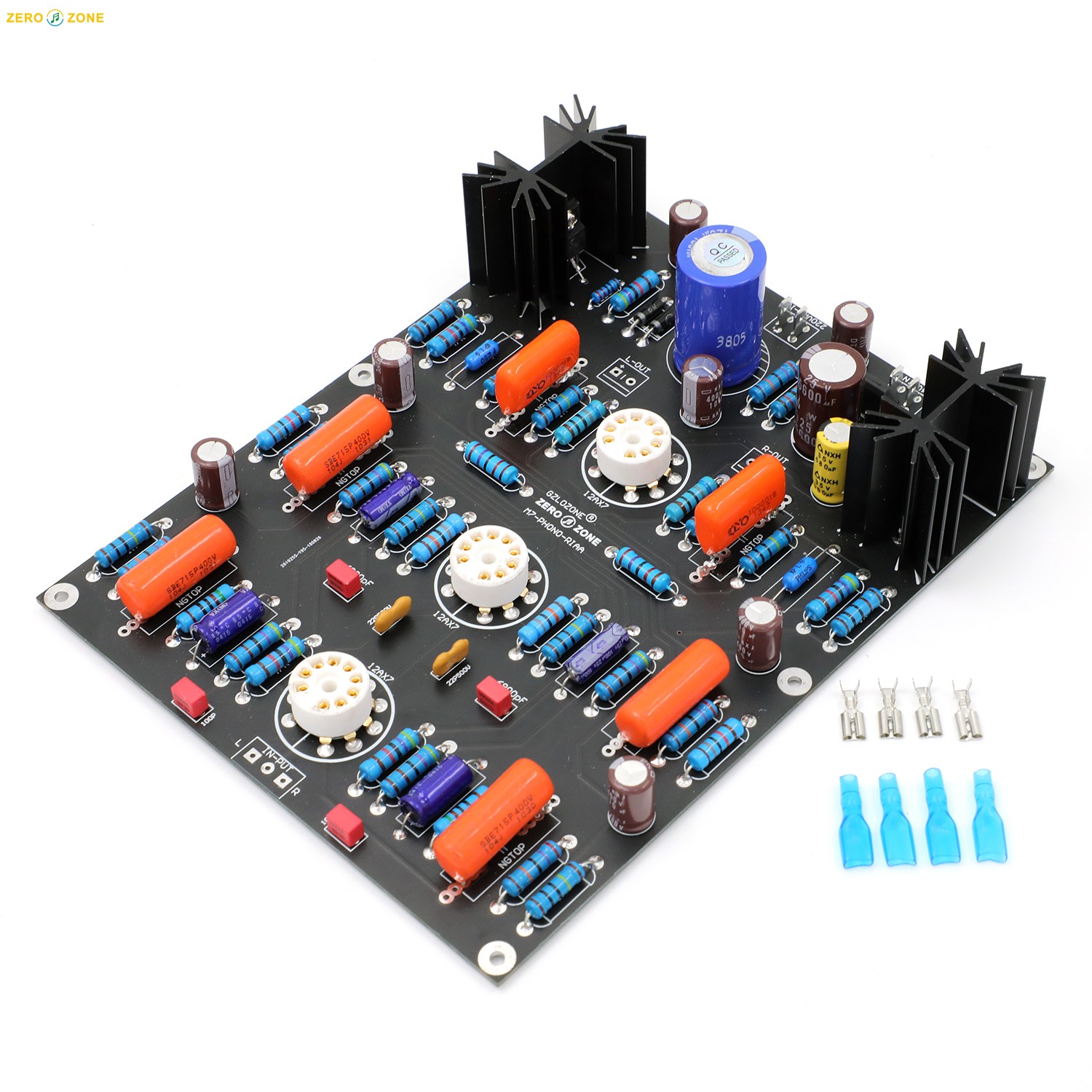

Classic Circuit - Clone Marantz 7 (M7) Hifi MM Tube Phono Amp Bare PCB / Phono Amplifier Kit / Phono Amplifier Board

Name: Classic Circuit - Clone Marantz 7 (M7) Hifi MM Tube Phono Amp Bare PCB / Phono Amplifier Kit / Phono Amplifier Board
Brand: FYFAUDIO
SKU: 零点-黑色M7 唱放套件（不含电子管）
Price: 32 USD
Availability: InStock

0.0 (0)

$32.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

Classic Circuit - Clone Marantz 7 (M7) Hifi MM Tube Phono Amp Bare PCB / Phono Amplifier Kit / Phono Amplifier Board

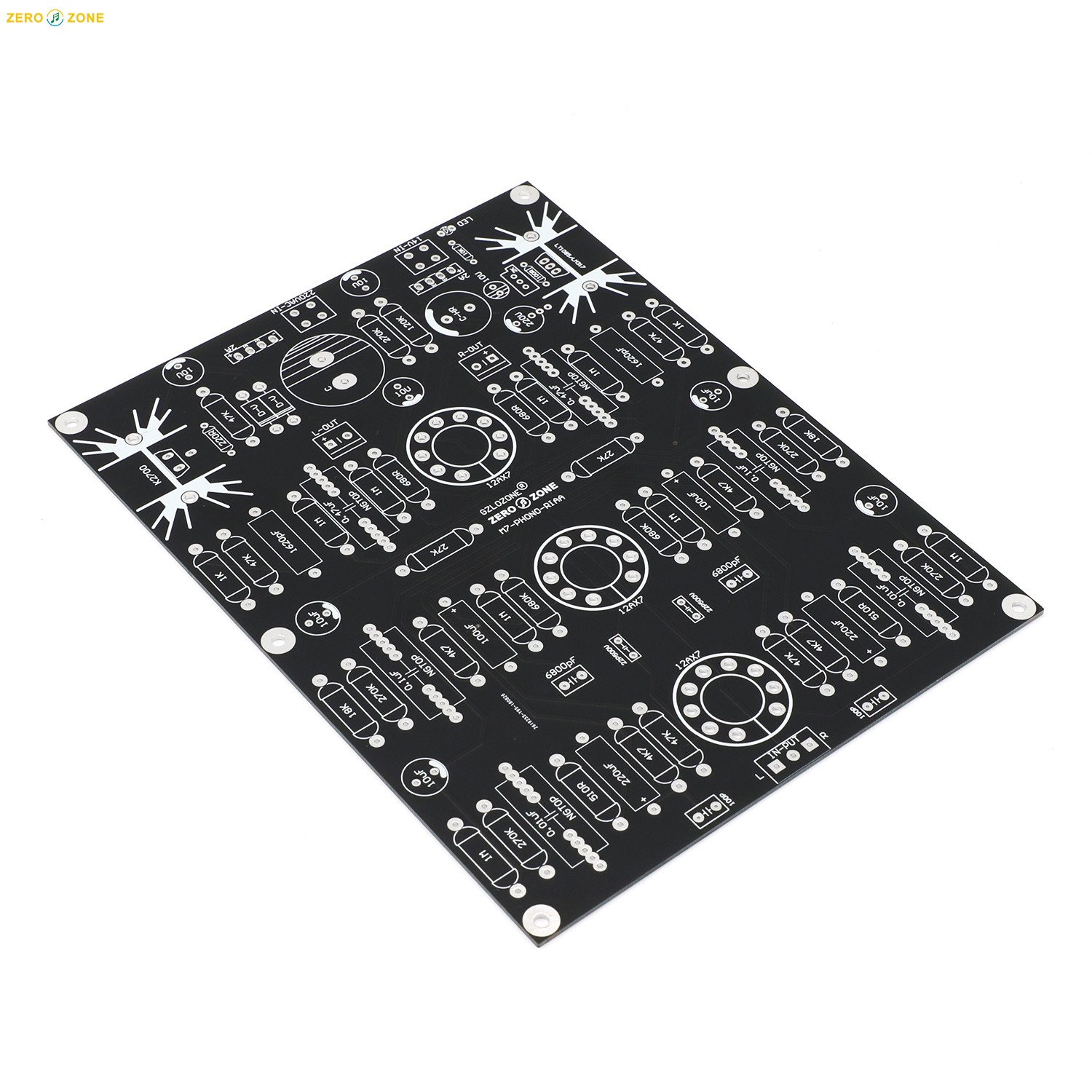

PCB Size: 200*150*1.6MM

Works voltae: 0-AC220V >=20mA (200V-240V all ok)
0-AC14V >=0.8A (12-15V all ok)

This board suitable tube: 3pcs 12AX7 or ECC83

this list is not incldue the tubes!!!

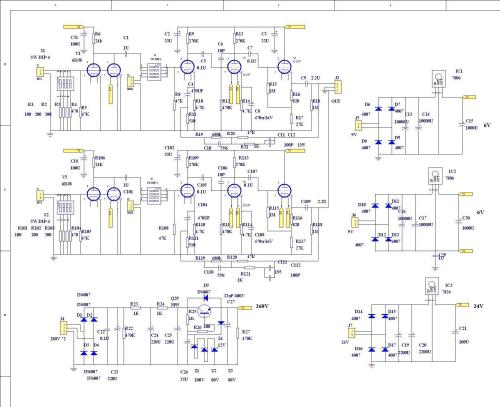

We can provide the BOM and schematic via email.

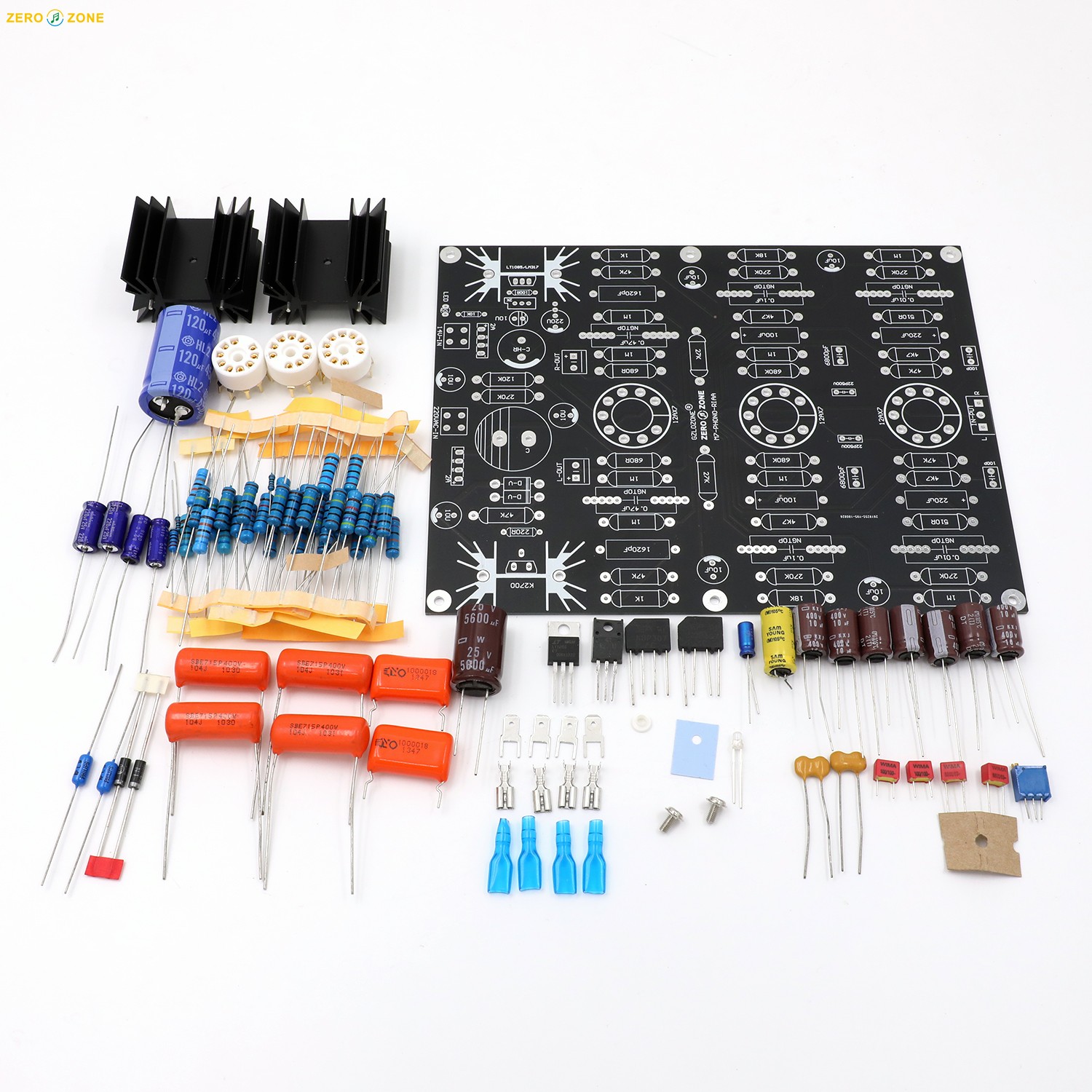

Component configuration:
3W 1% Taiwan metal film resistor,
Hitachi & Chemical high voltage electrolytic capacitors,
SPRAGUE + ERO coupling capacitor,
WIMA electrodeless capacitor,
silver mica small P value capacitor,
VISHAY small capacitor,
RIFA + SPRAGUE feedback capacitor,
gold plated electronic tube holder

Please note this is a MM Phono amplifier kit. not suitable for MC Phono!!!
