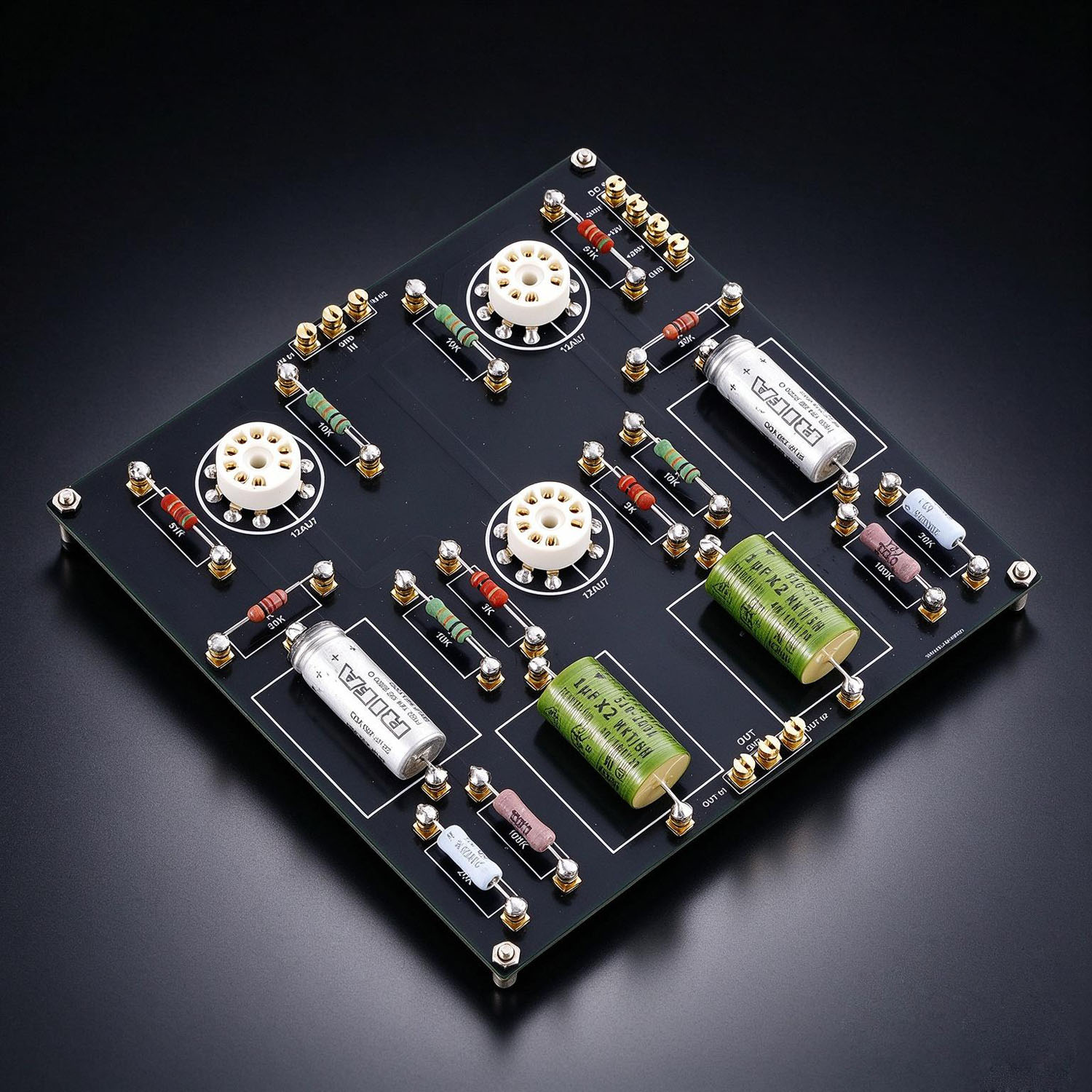

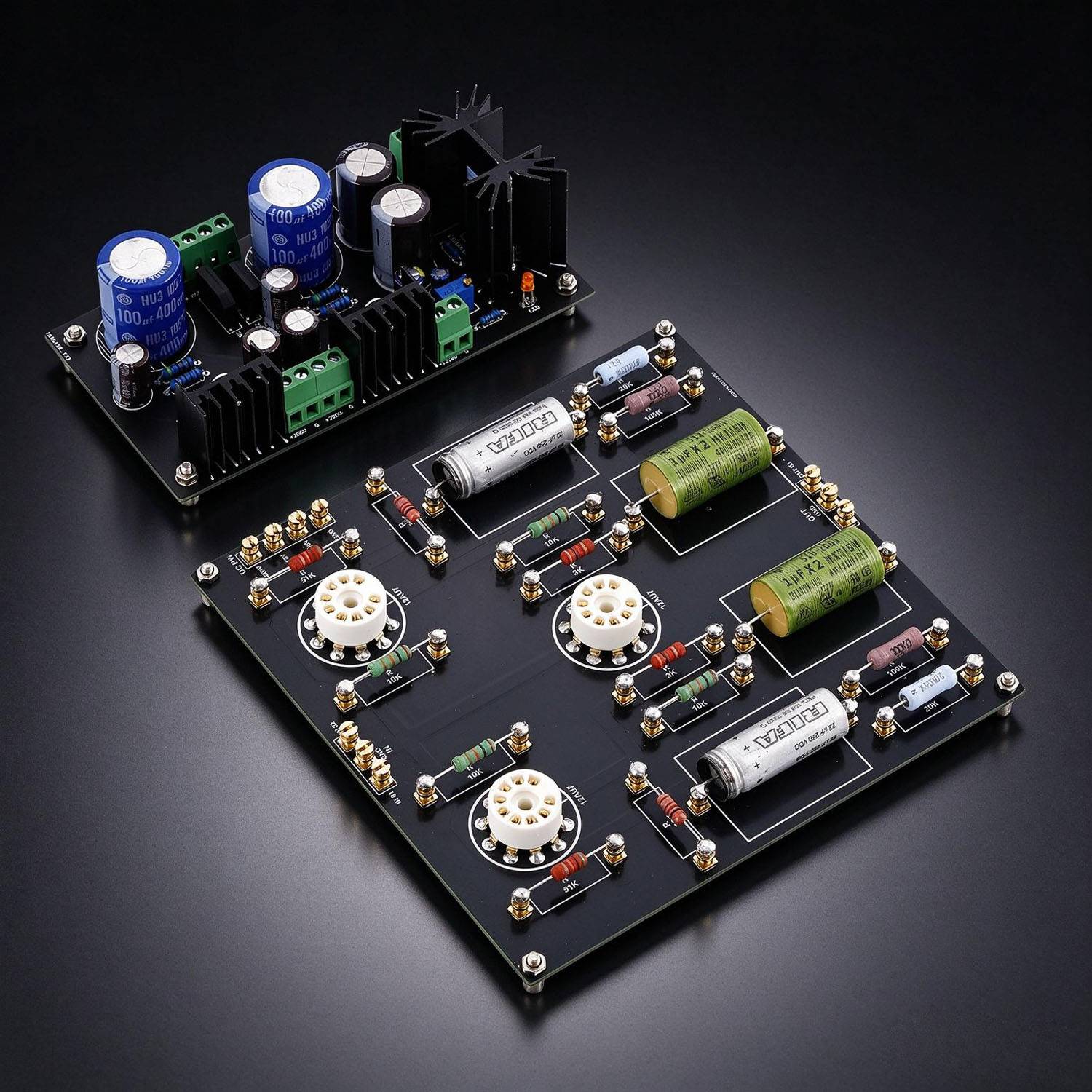

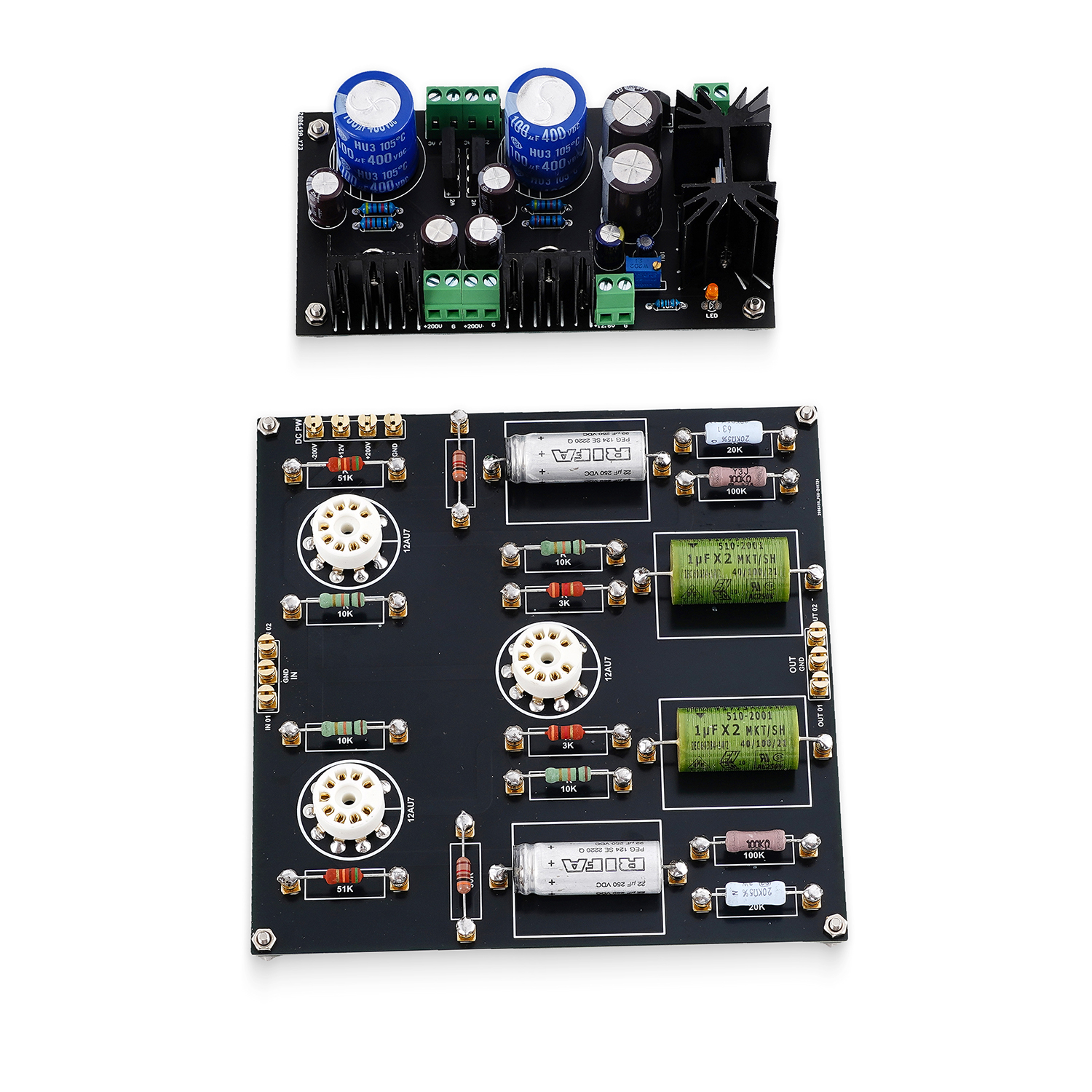

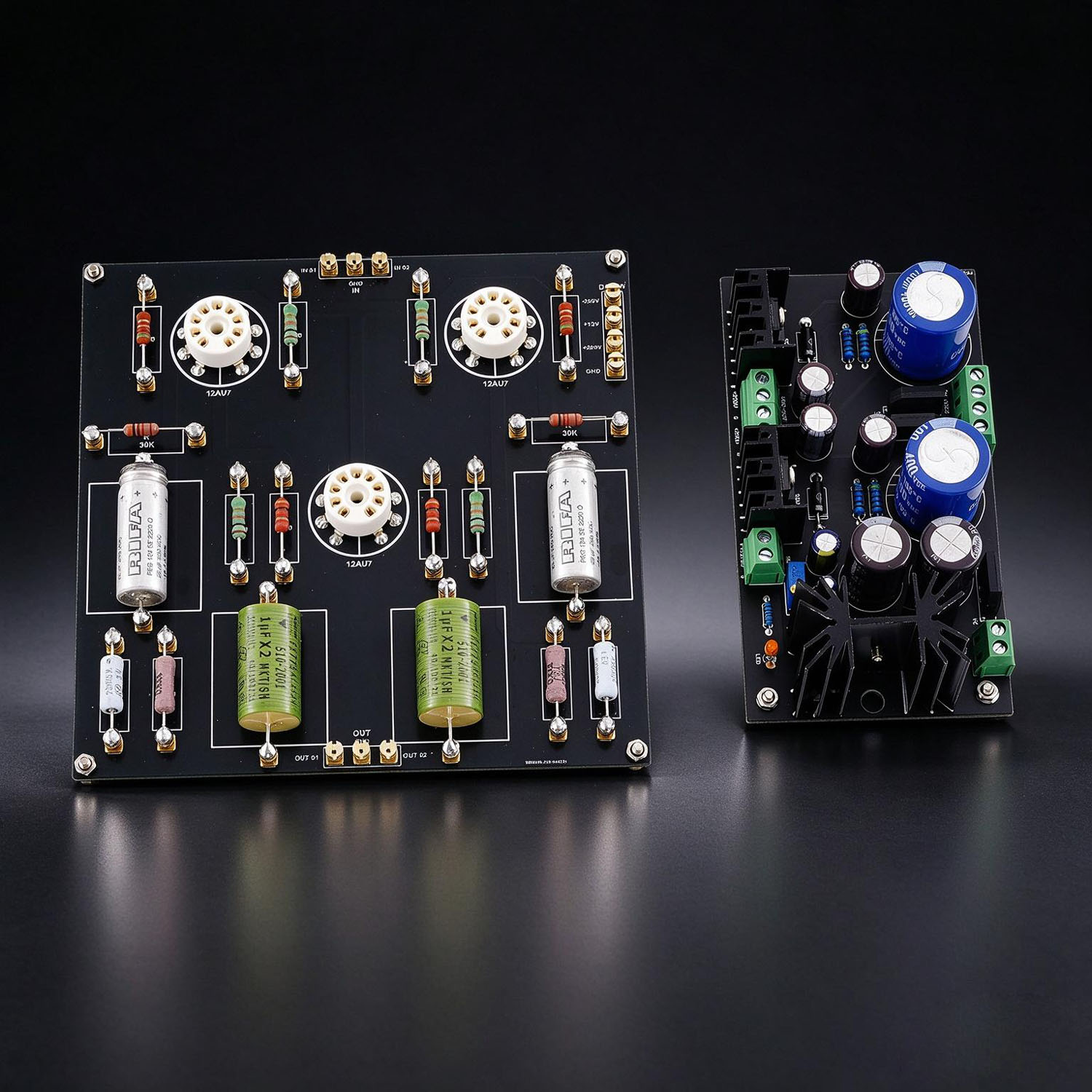

This is Assembled board. the list default price not include power transformer and Tube
Preamp board Works voltage: +DC200V 0 -DC200V and + DC12V
Recommned Transformer voltage: AC220V + AC220V + AC14V
We also have the transformer for this board. if you need, Please check following link.

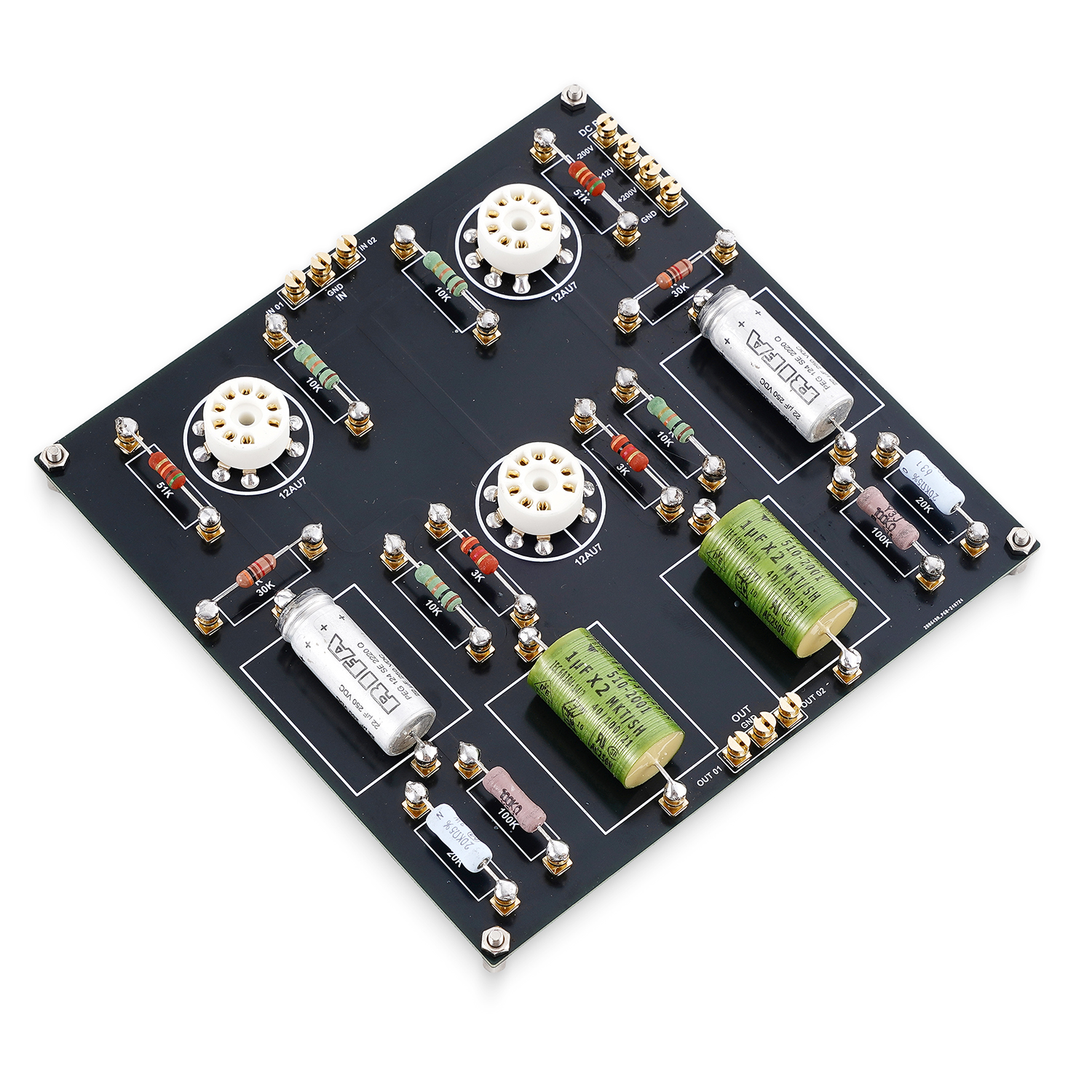

Preamp board PCB Size: 150mm X 150mm, Thickness: 1.6mm,

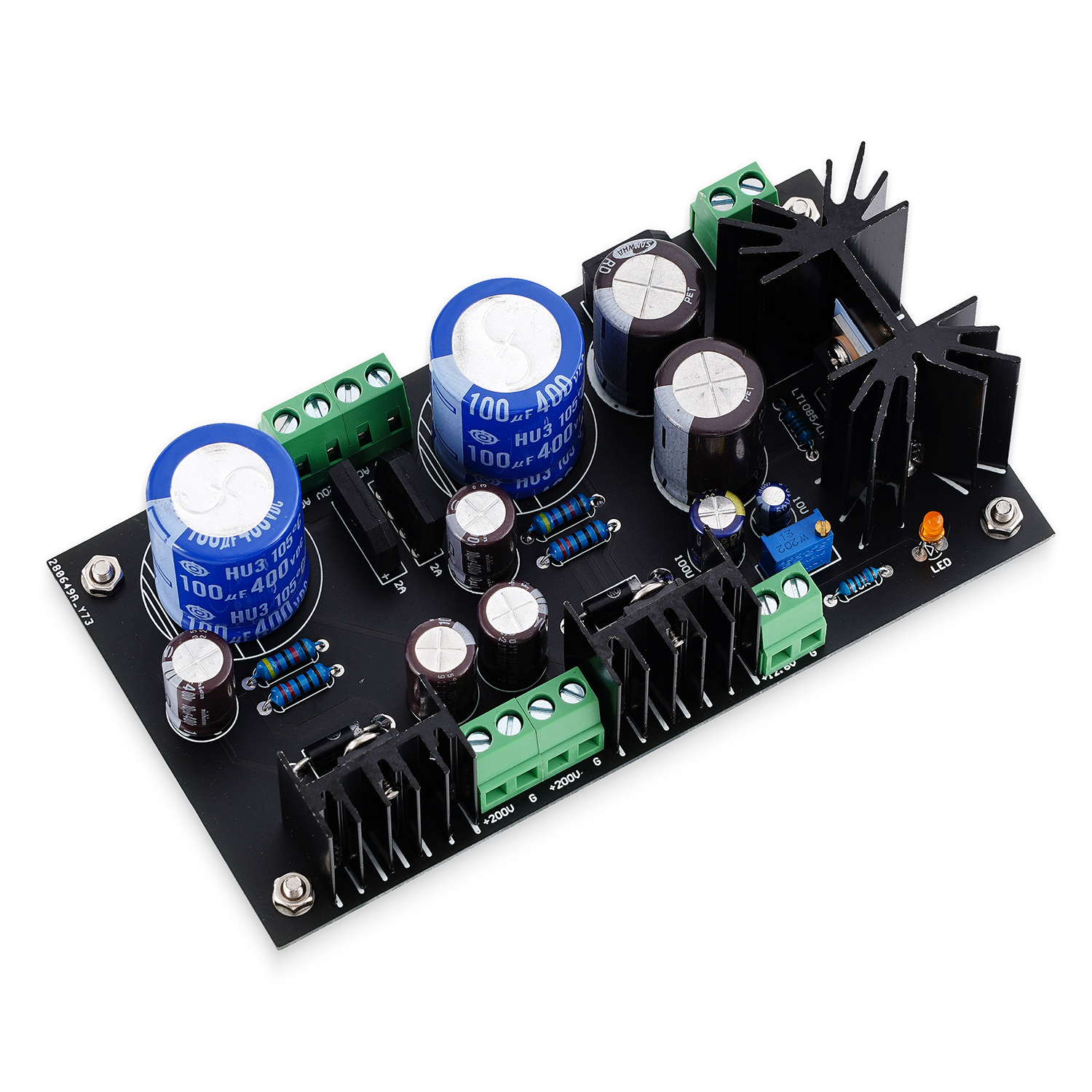

Power supply board PCB Size: 130mm X 70mm Thickness: 1.6mm,
Use Tube: 3pcs ECC82 or 12AU7

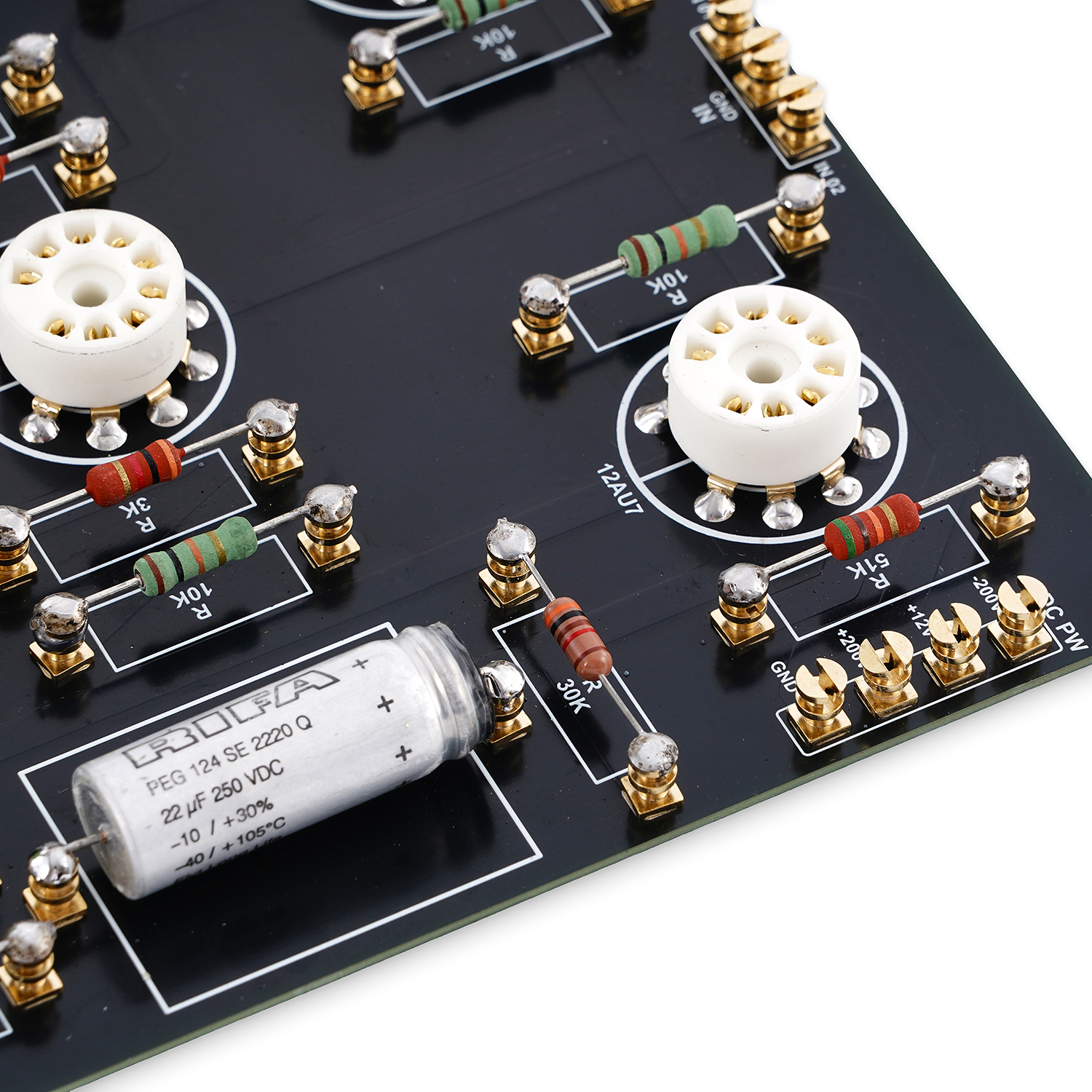

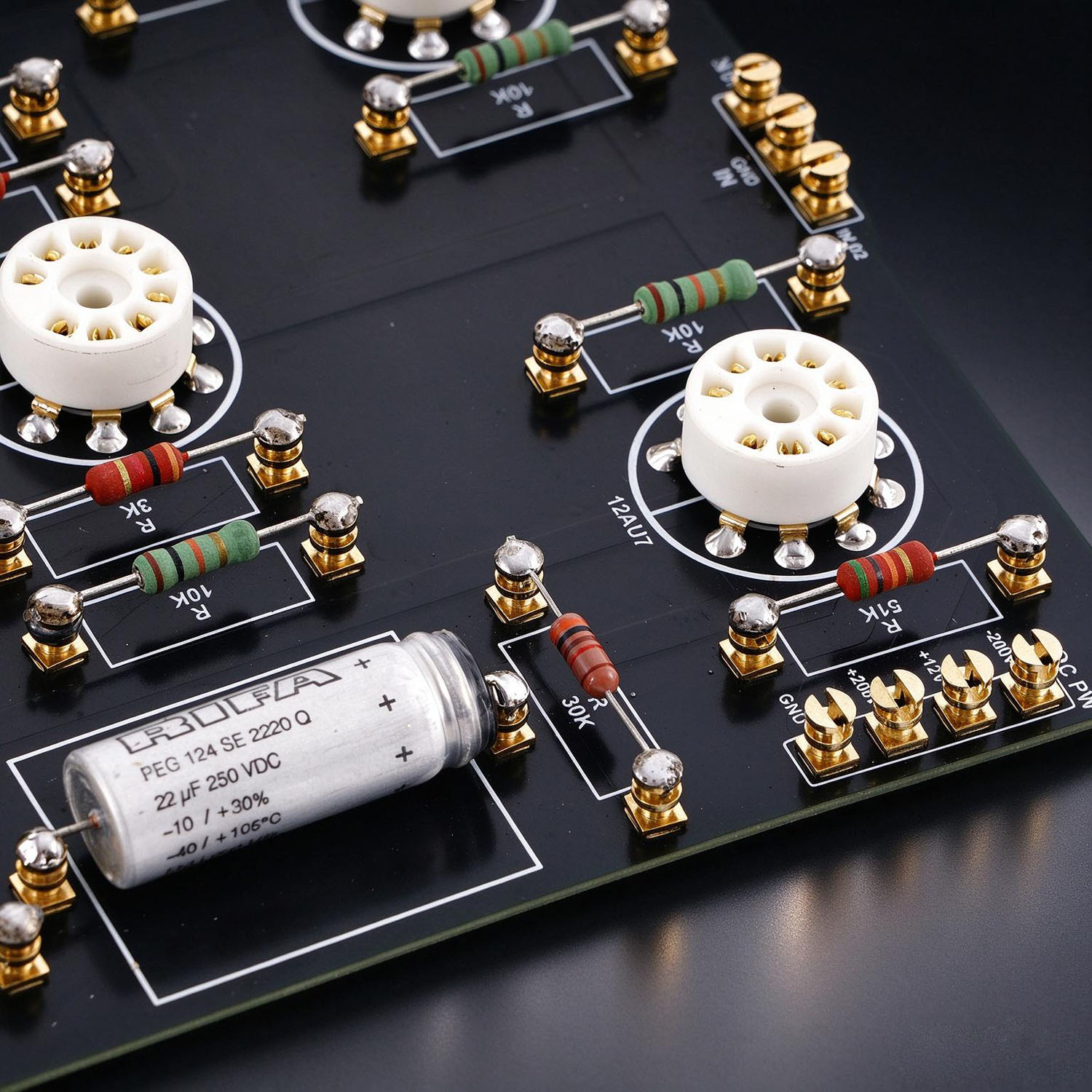

>>RIFA PEG124 series long life 22UF 250V Filter Capacitors

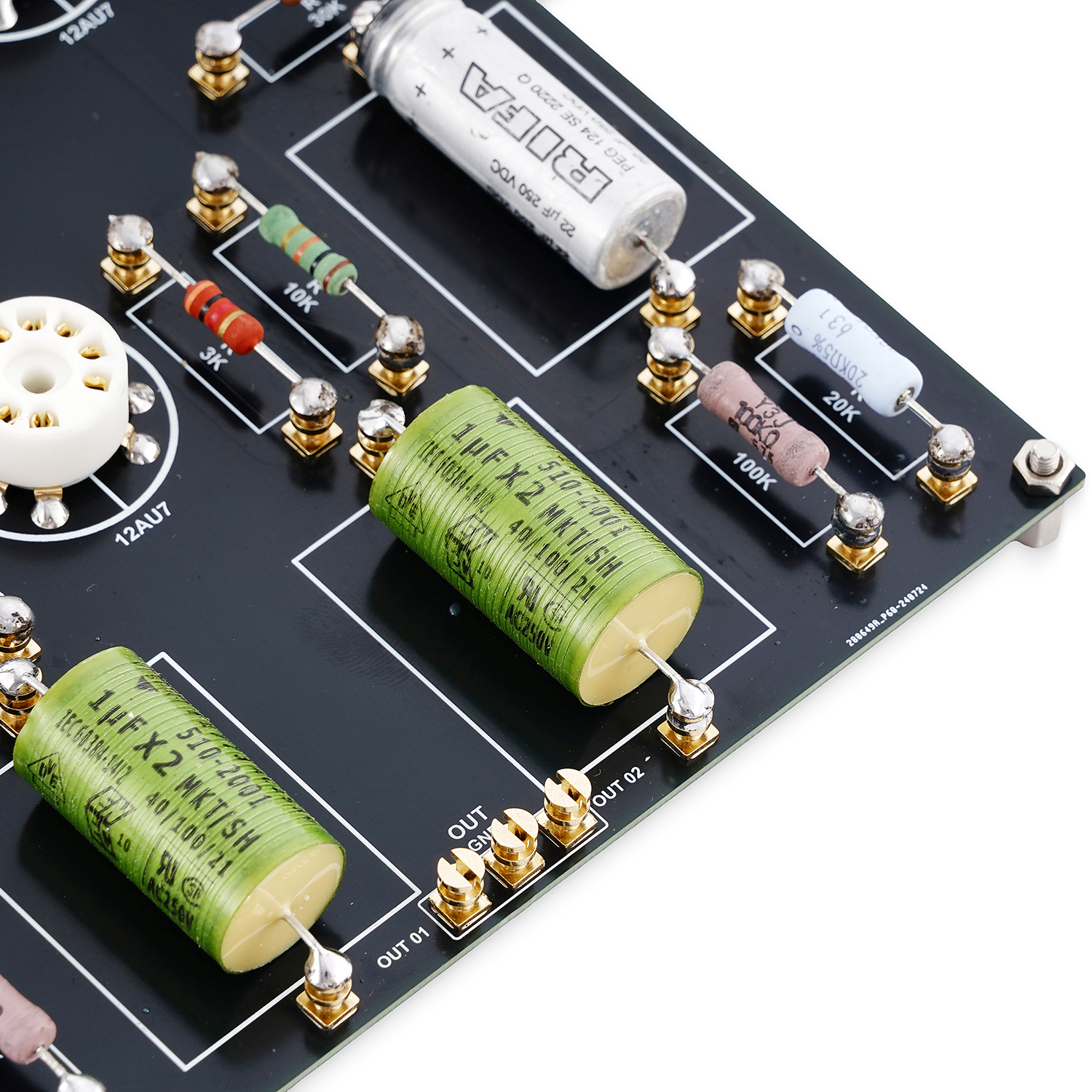

>>Germany Mundorf Mcap EVO coupling capacitors
>>High quality resistors
>>Pure copper gilded ceiling nails
>>Gold plated electronic tube sockets.
Gain: 3~5 times (10~15dB)
Phase: Non-inverting
Frequency Response: 5Hz ~ 200kHz (-3dB)
THD: <0.08% @1kHz, 10Vrms
Input Impedance: 50-100K
Output Impedance: ~1.5kΩ
Max Output: >20Vrms
SNR: >92dB (A-weighted)

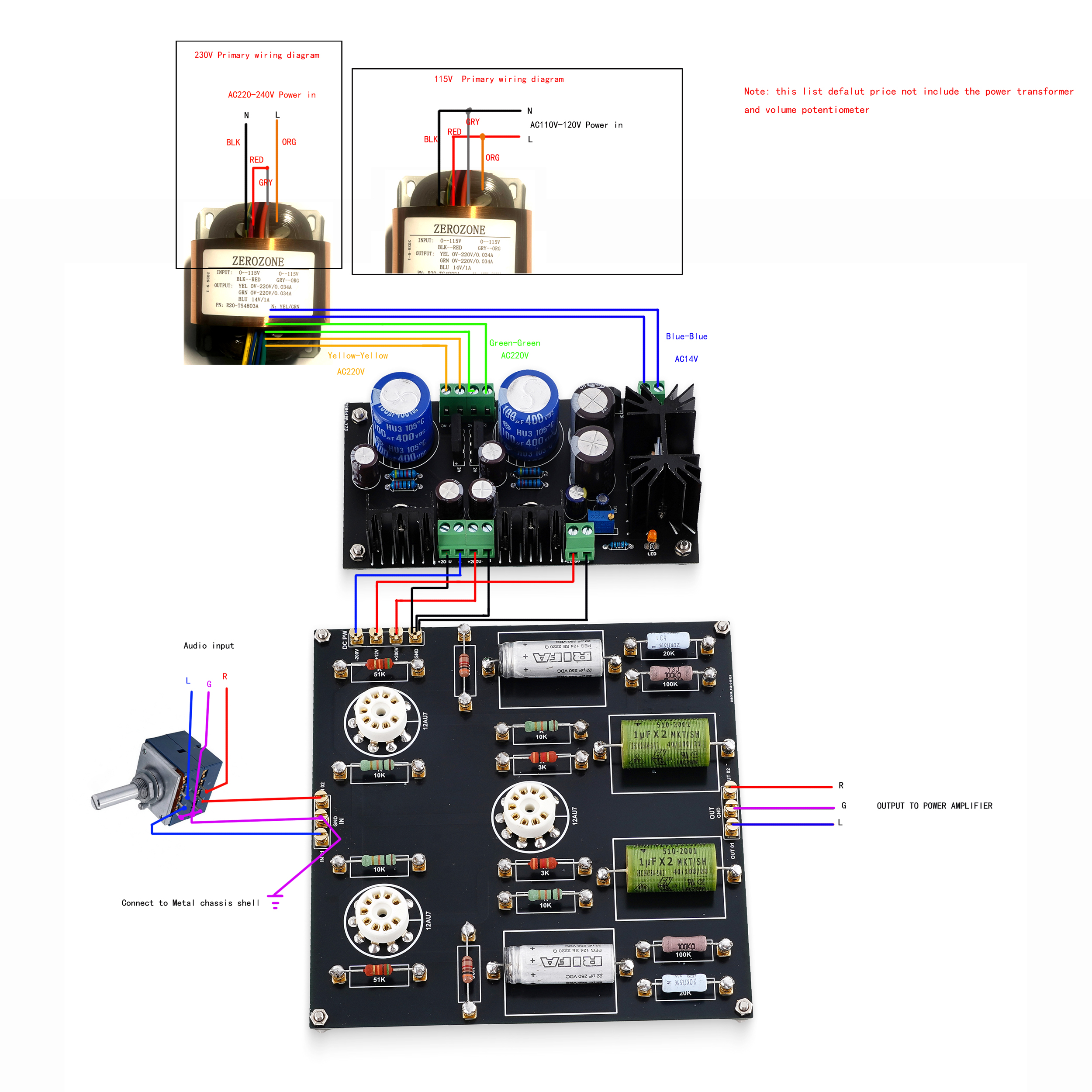

Power transformer link:
Package include:

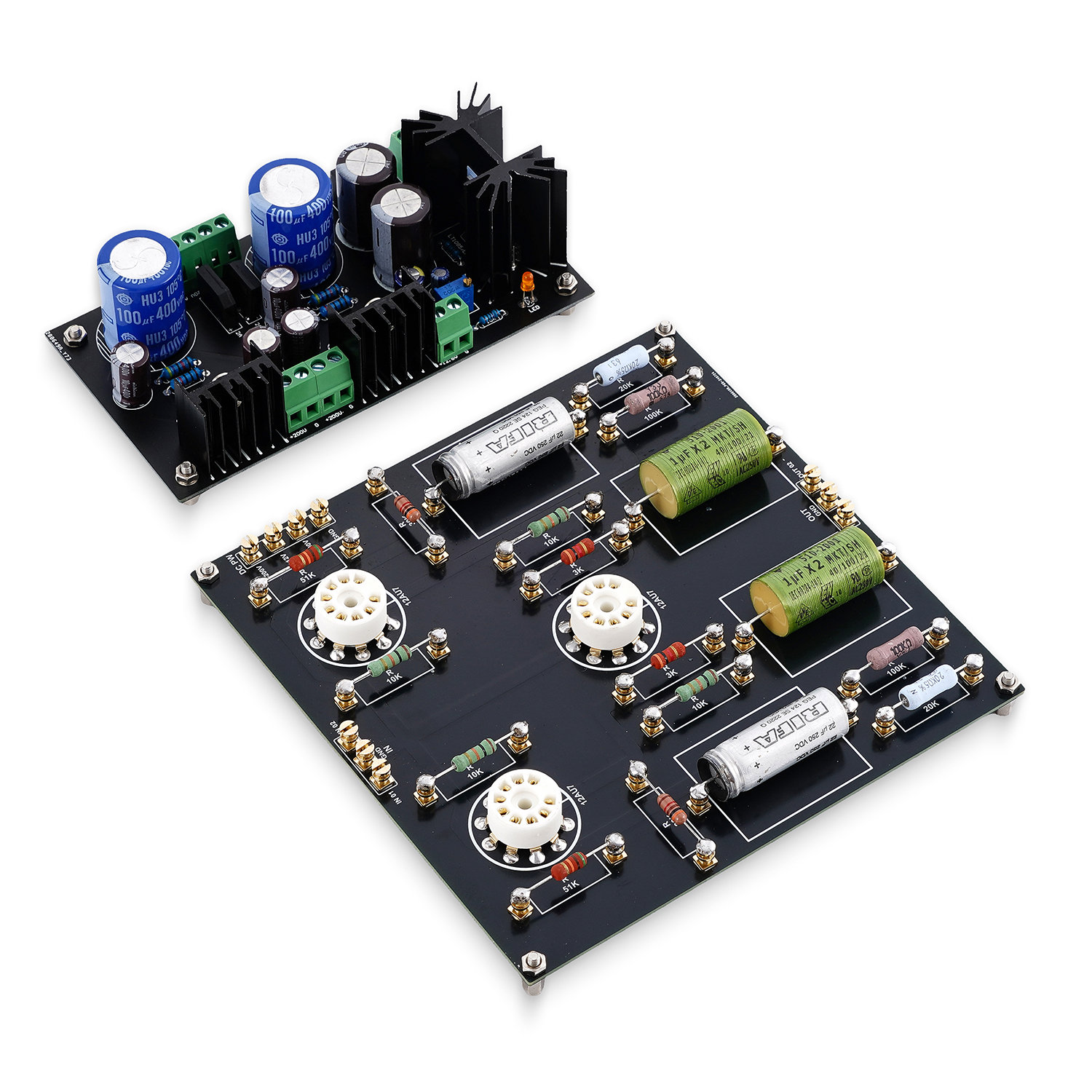

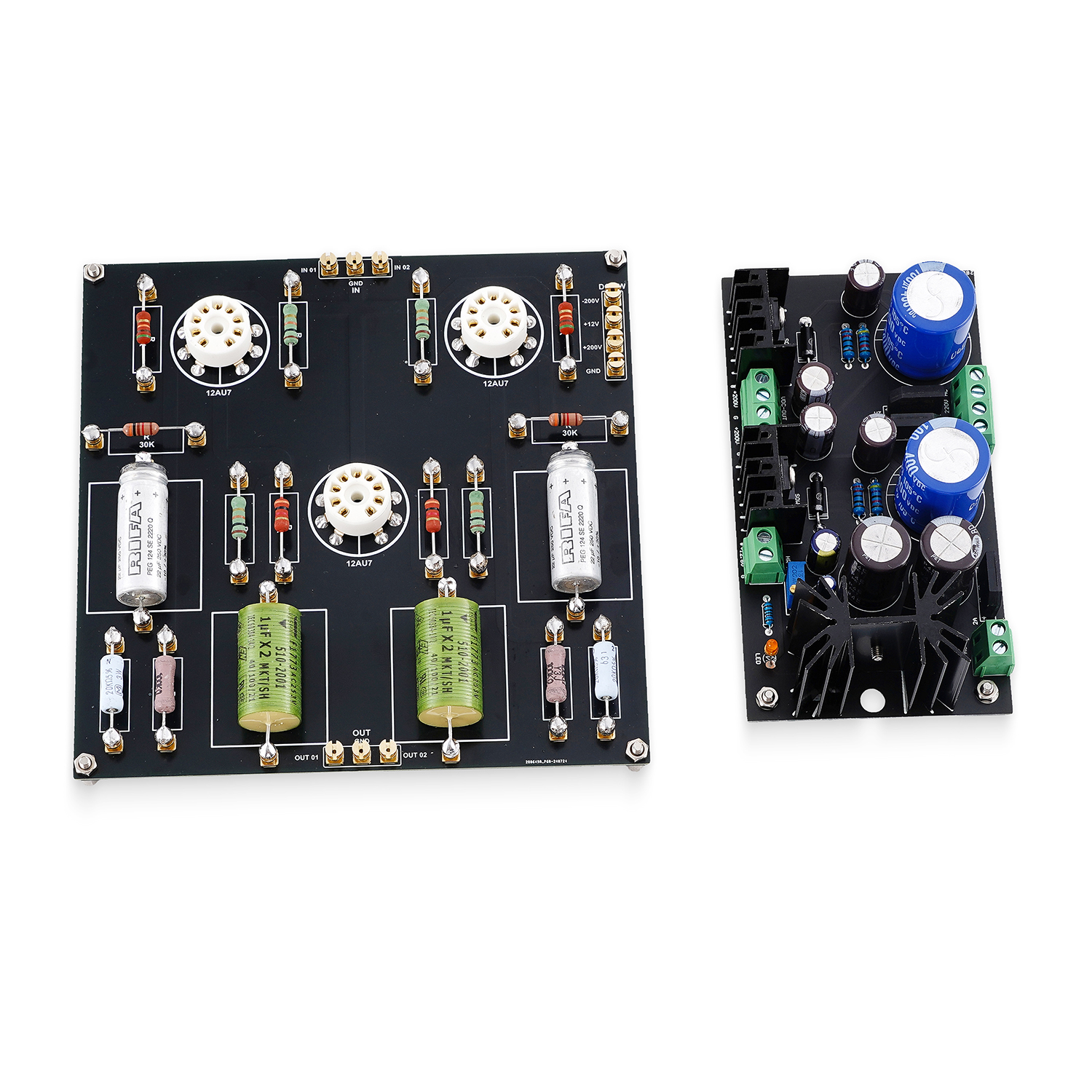

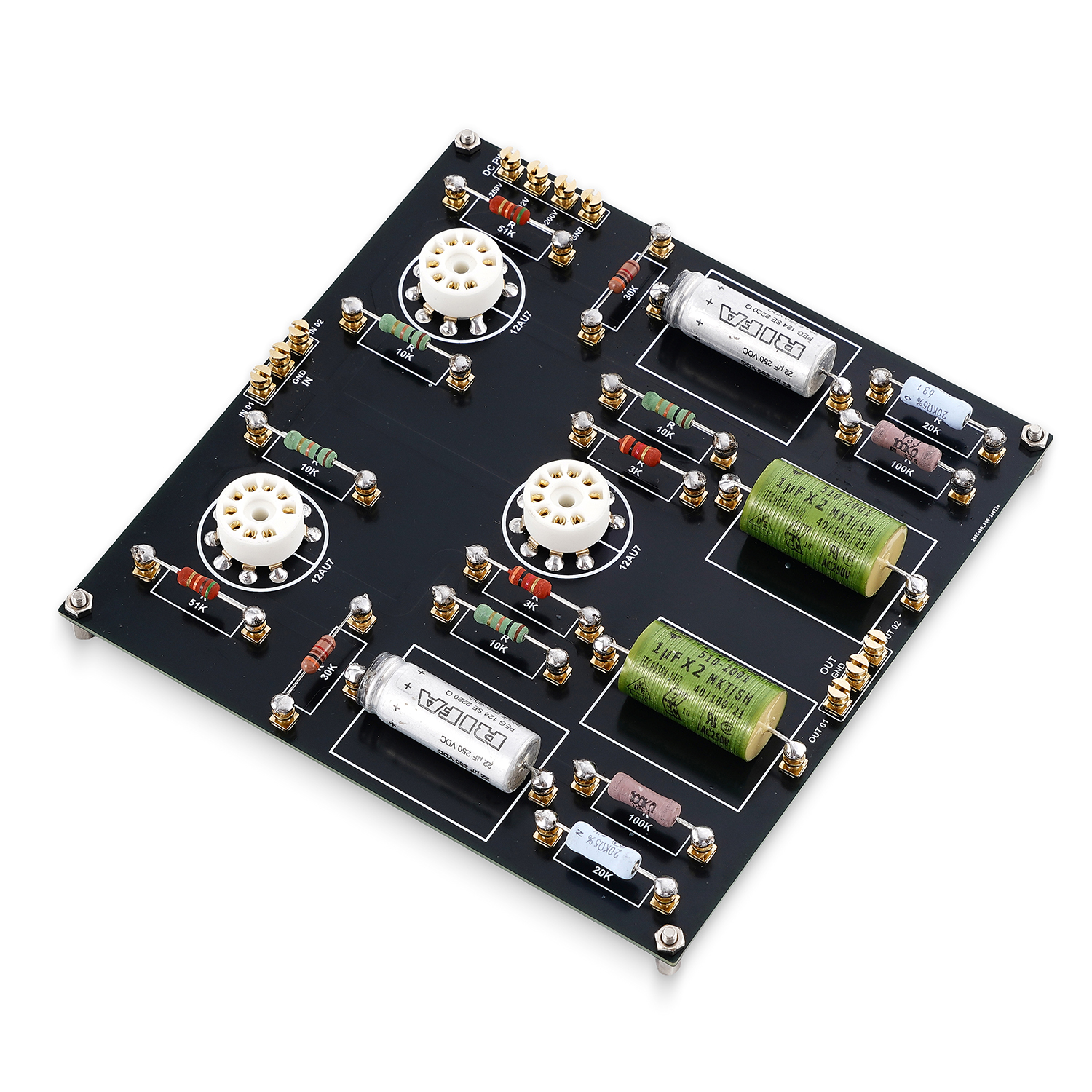

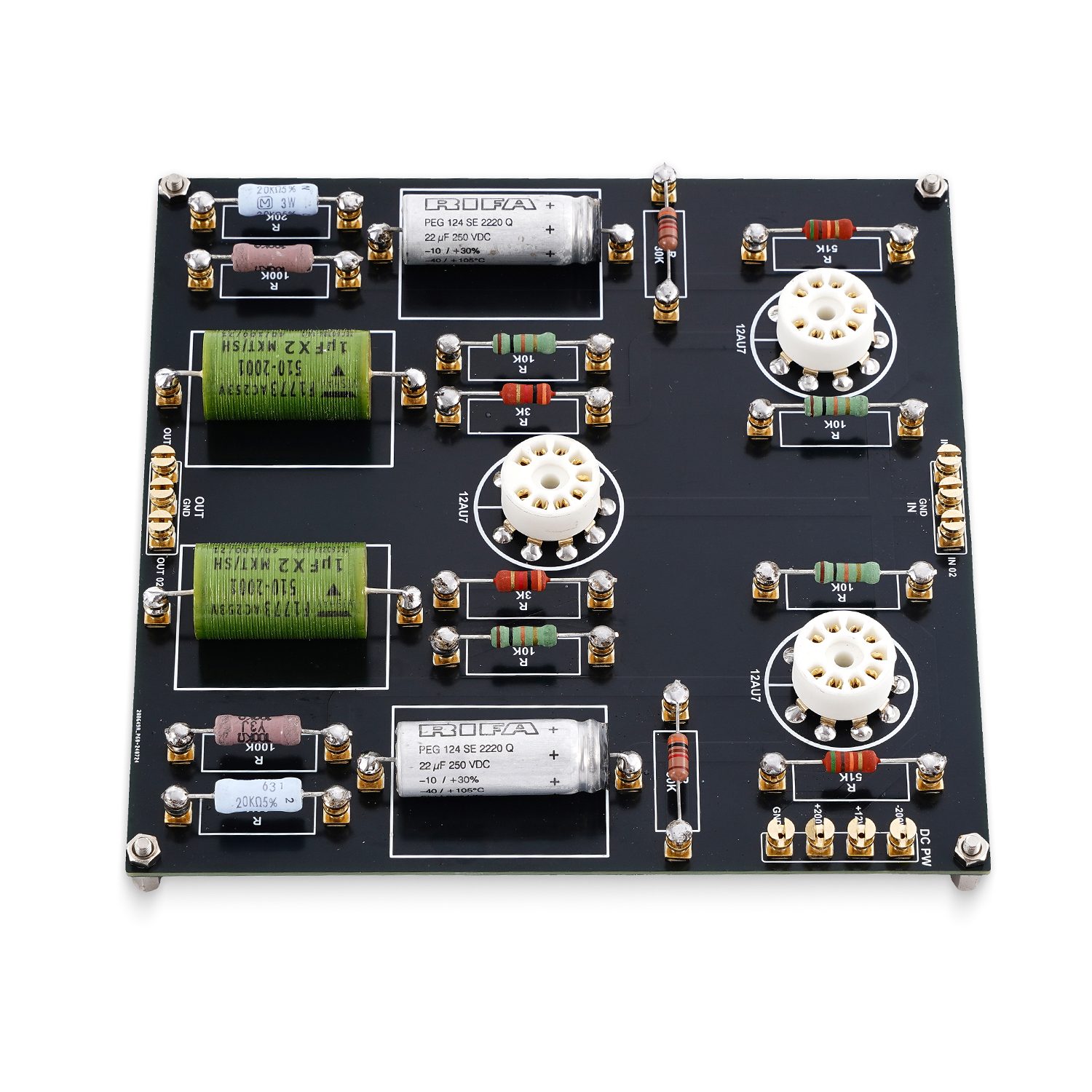

Assembled GG preamp board X 1

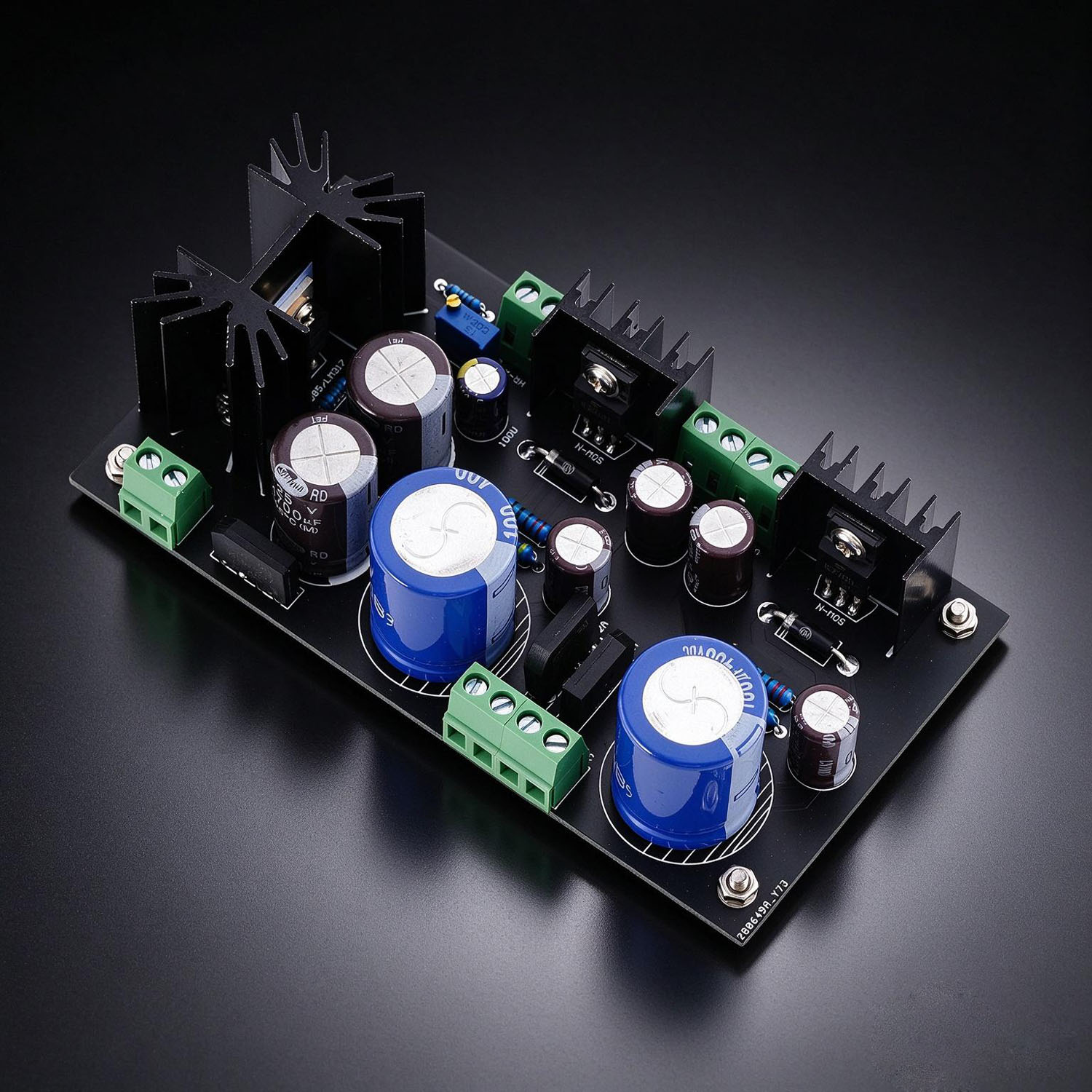

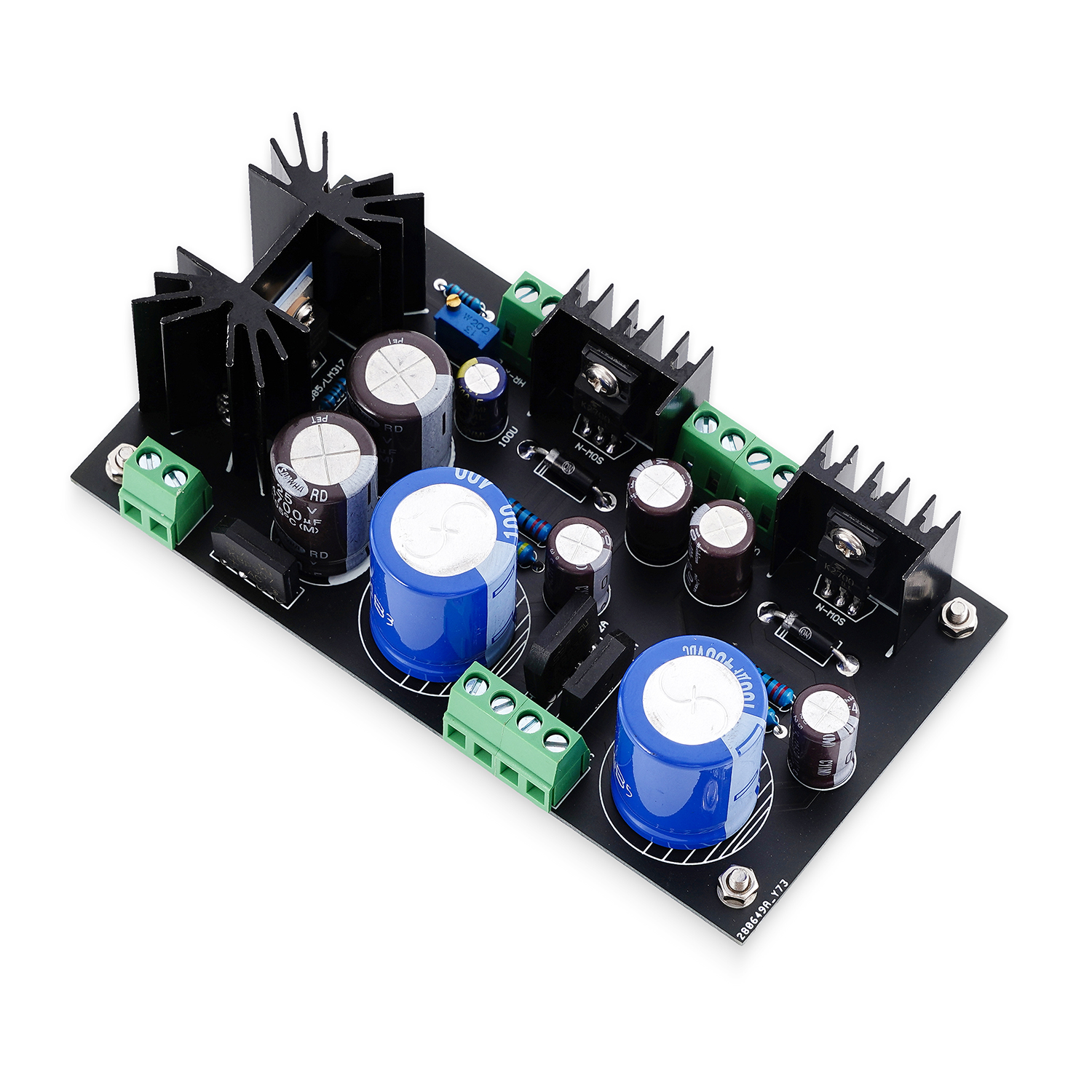

Assembled Power supply board X 1
The Ground Grid (GG, Grounded Grid) preamplifier is a classic triode amplifier circuit originating from early radio RF amplification, now widely adopted in high-fidelity audio.
Different from the common common-cathode tube circuit, its grid is AC-grounded. The audio signal feeds into the cathode, and the amplified signal is taken from the plate. This topology greatly suppresses the Miller effect, bringing outstanding wideband frequency response and excellent transient performance.
Key Features
- Ultra-wide frequency response & superb high-frequency extension The Miller effect is nearly eliminated. The circuit achieves flat response across the whole audio band with excellent transient and detail retrieval.
- Low distortion & quiet noise floor Low inherent distortion and good power supply rejection. It presents a black background and clean sound.
- Non-inverting amplification The signal phase remains unchanged after amplification, simplifying system phase matching.
- Neutral & transparent sound signature Low sonic coloration. It reproduces the original texture of your music rather than adding heavy tube warmth, perfect for revealing the true performance of your DAC or CD transport.
Application
Works perfectly as Hi-Fi line preamplifier between audio sources (DAC, CD player, streamer) and power amplifiers.
