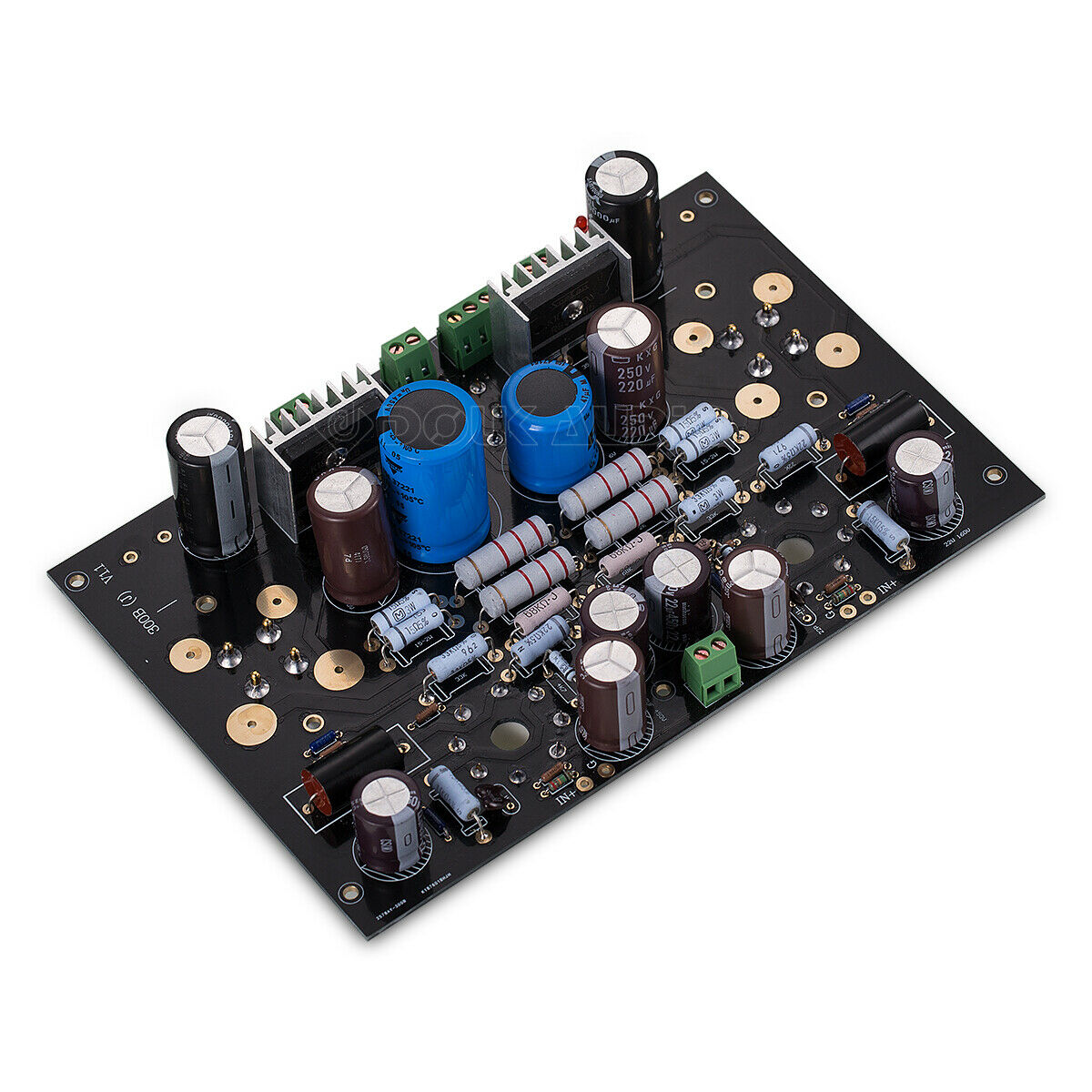

HiFi 300B Vacuum Tube Power Amplifier Board DIY KIT Class A Stereo Audio Amp board

Name: HiFi 300B Vacuum Tube Power Amplifier Board DIY KIT Class A Stereo Audio Amp board
Brand: FYFAUDIO
SKU: 伟良300B 功放套件（R195)
Price: 47 USD
Availability: InStock

0.0 (0)

$47.00

just amp kit/board. not incldue power transformer output transformer ,all tubes also not included.

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

Features

    6SN7+300B single-ended output form design, high signal to noise ratio, background is very quiet. The preamp gain is high and the sound field positioning is better. The circuit is debug-free and easy to assemble.

    High-end and brand new components, such as French SCR coupling capacitors, 24K gold-plated diamond ceramics 300B sockets and so on to ensure the perfect performance of the circuit.

Notice:

1. if you buy the DIY KIT, you need to solder it by yourself, the list are Not including vacuum tubes and transformer, if you want please contact us.

2. Don't turn it on before the output transformer connected to the speaker, no-load will result in damage.

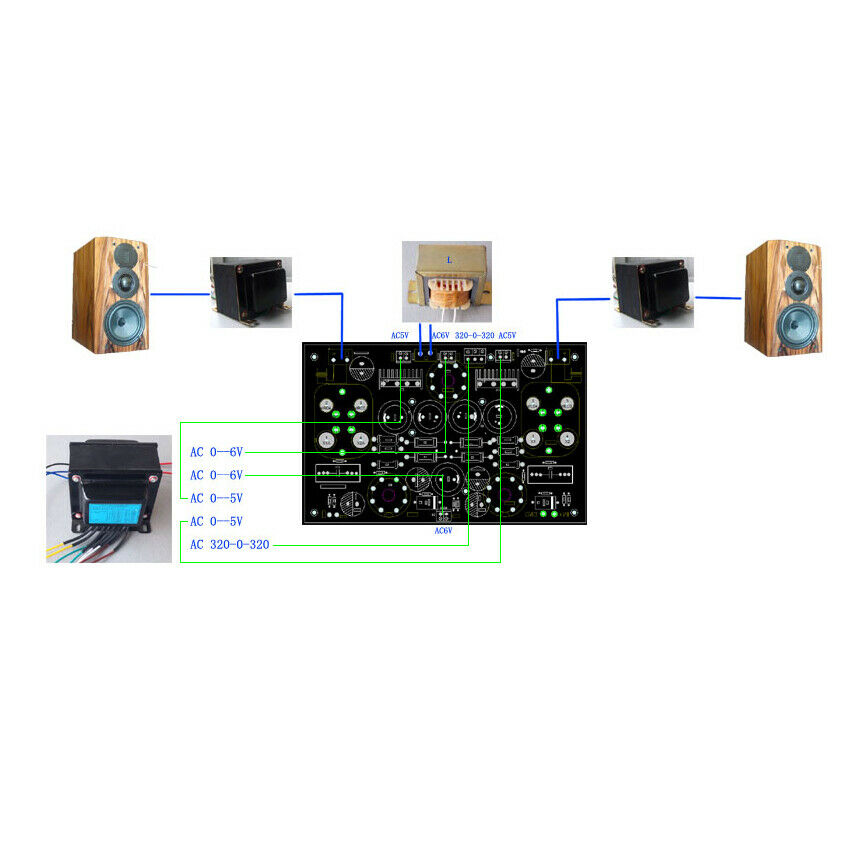

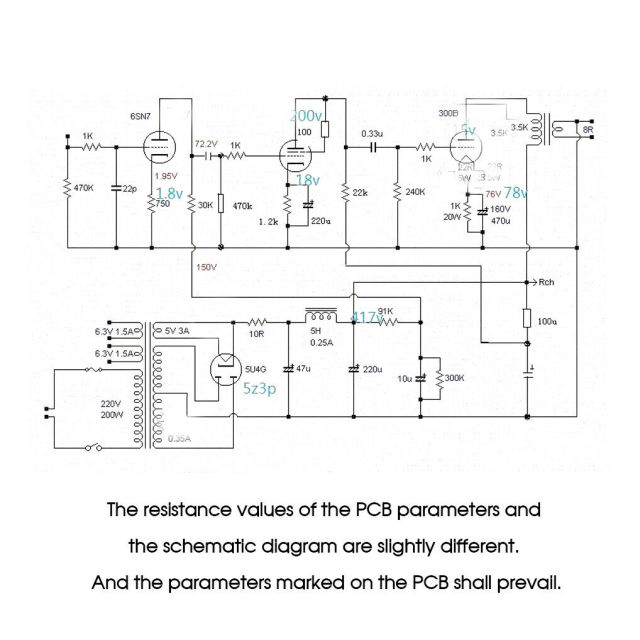

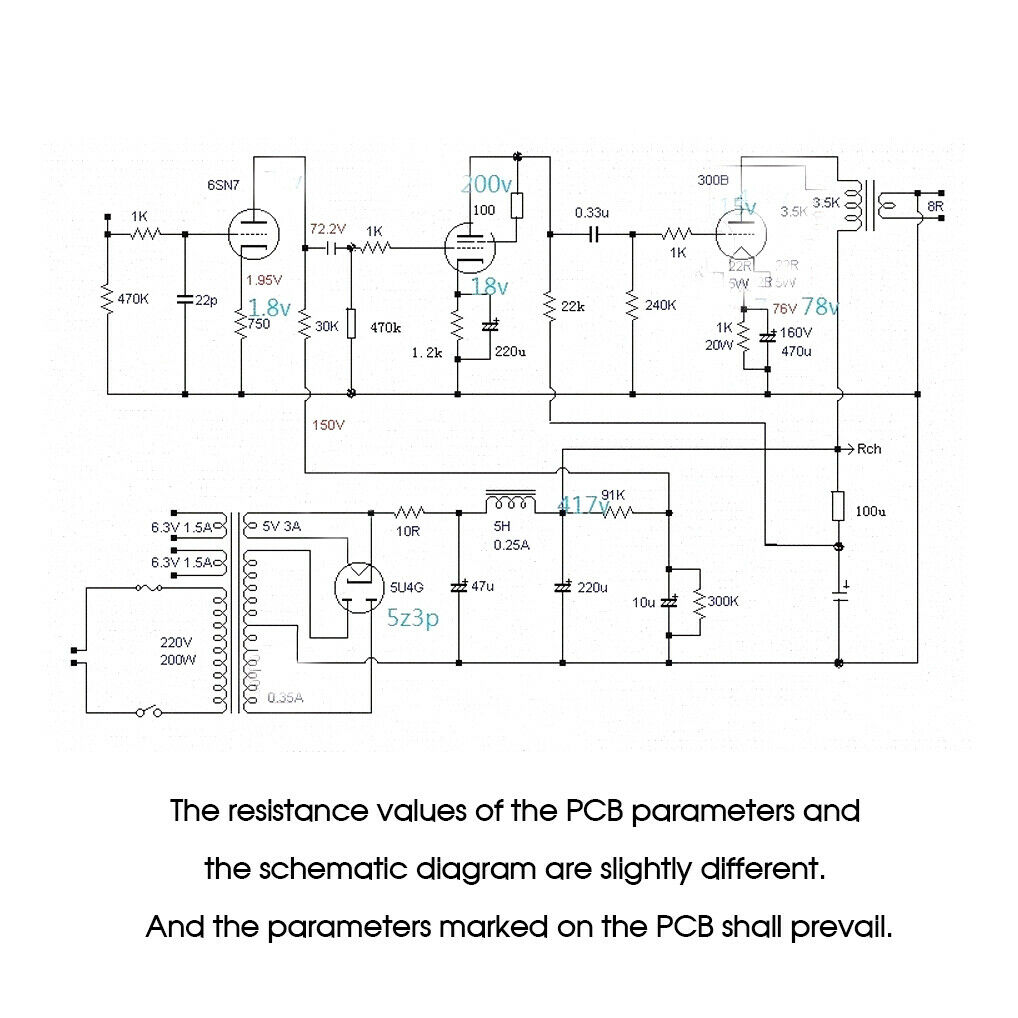

3. Input voltage to the terminal connection must be strictly in accordance with the circuit diagram.the other parameters pls according to the PCB. The 5U4 filament is changed to 5V, and the 2 points that marked "L" are connected to the choke.

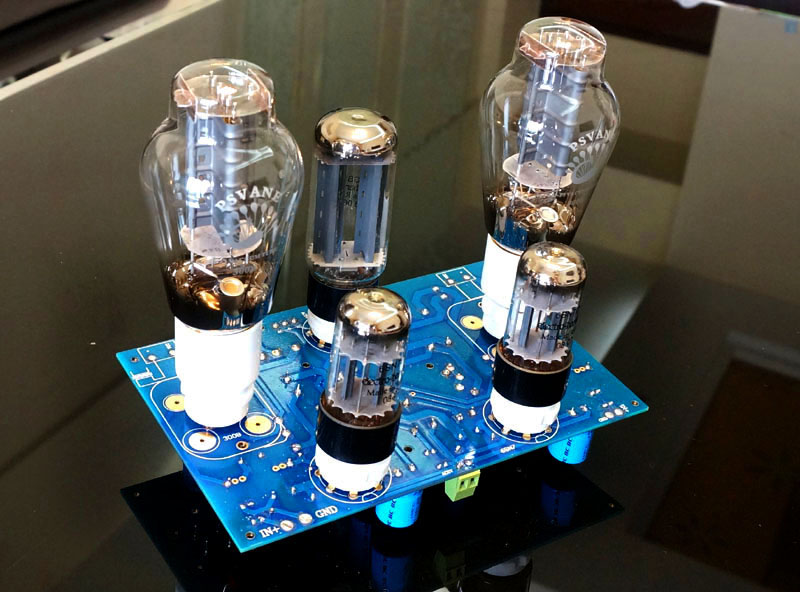

4. After the module is powered on and works normally, then install the vaccum tubes. Don't touch the tubes during its working.

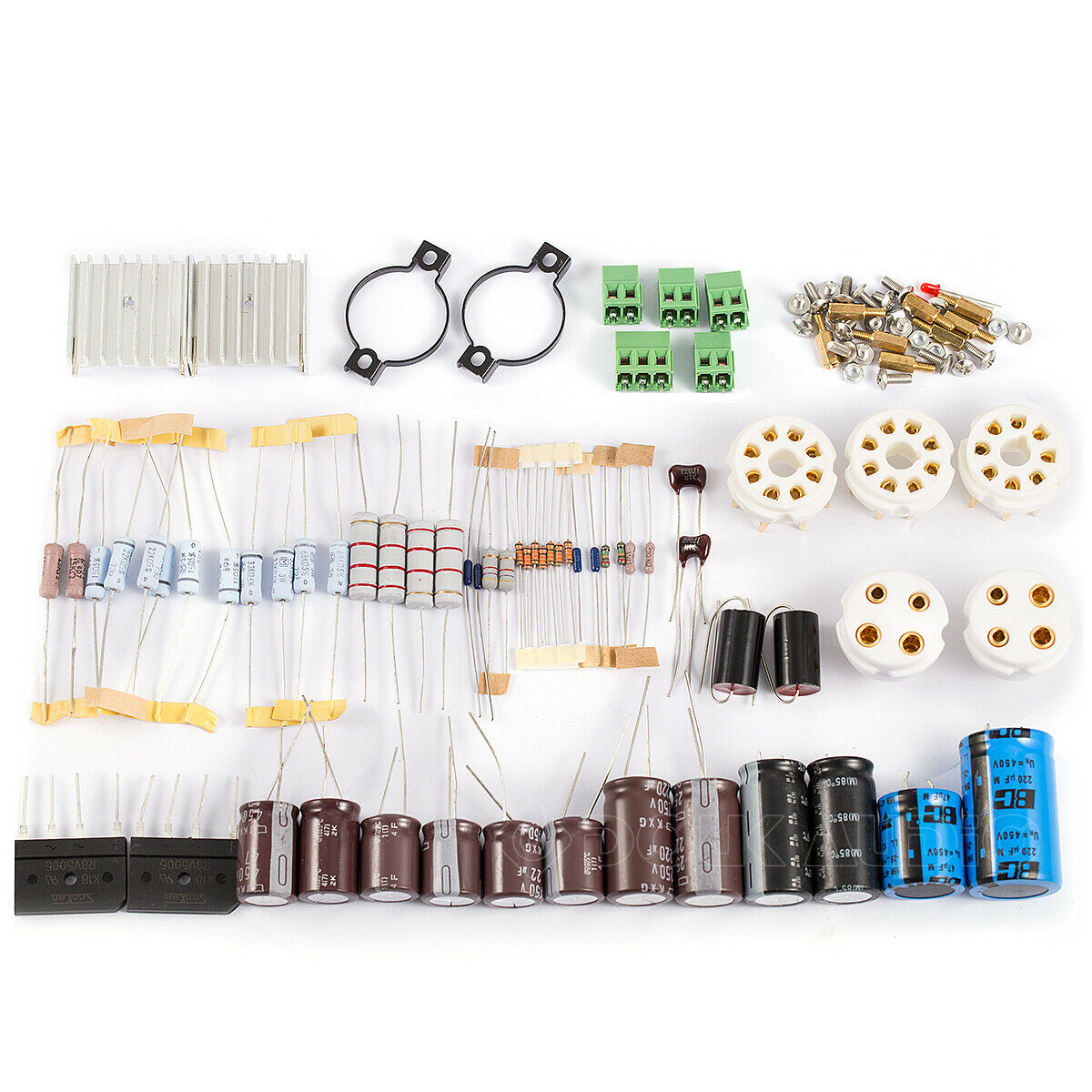

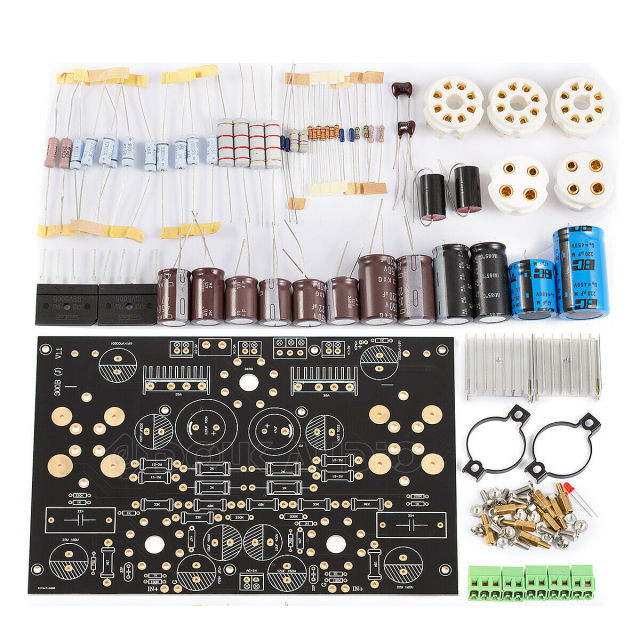

Packing List:

    300B tubes Block----------- 2
    8-pin tubes Block ---------3
    PCB ---------------1
    Small two terminal------------ 4
    Small three terminals------------ 1
    Siemens 68U-450V------------- 5
    Philips 22U-400V -------------2
    France Suren 0.22U------------ 2
    Philips 10000UF 10V -----------2
    25A Bridge--------------- 2
    Heat----------------- 2
    Philips-100UF-160V --------------2
    Philips-100UF-16V Axial -----------2
    LED----------------- 1
    5W-2K imported Resistance------------ 4
    2W-15 imports of Resistance ---------4
    1K 1/4w DALE ------------5
    22K 1/4w DALE -------------2
    220K 1/4w DALE----------- 2
    47K 1/4w DALE ------------1

    150K 1/4w DALE ------------1
