Remote Integrated Amplifier Base On Base on NAP250 Amp + NAC152 Preamp 80W +80W

0.0 (0)

$320.00 ~~$395.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

Works voltage: AC115V or 230V for choose

Output power: 80W +80W at 8ohm load

THD+N=0.001%-0.03%(20HZ-20KHZ 5W-30W 8OHM Audio Precision 2 TEST)

Size: Machine size: W:430mm D: 300mm H:70mm (excluding machine feet and various protruding positions)

Package weight: about 9.6kg

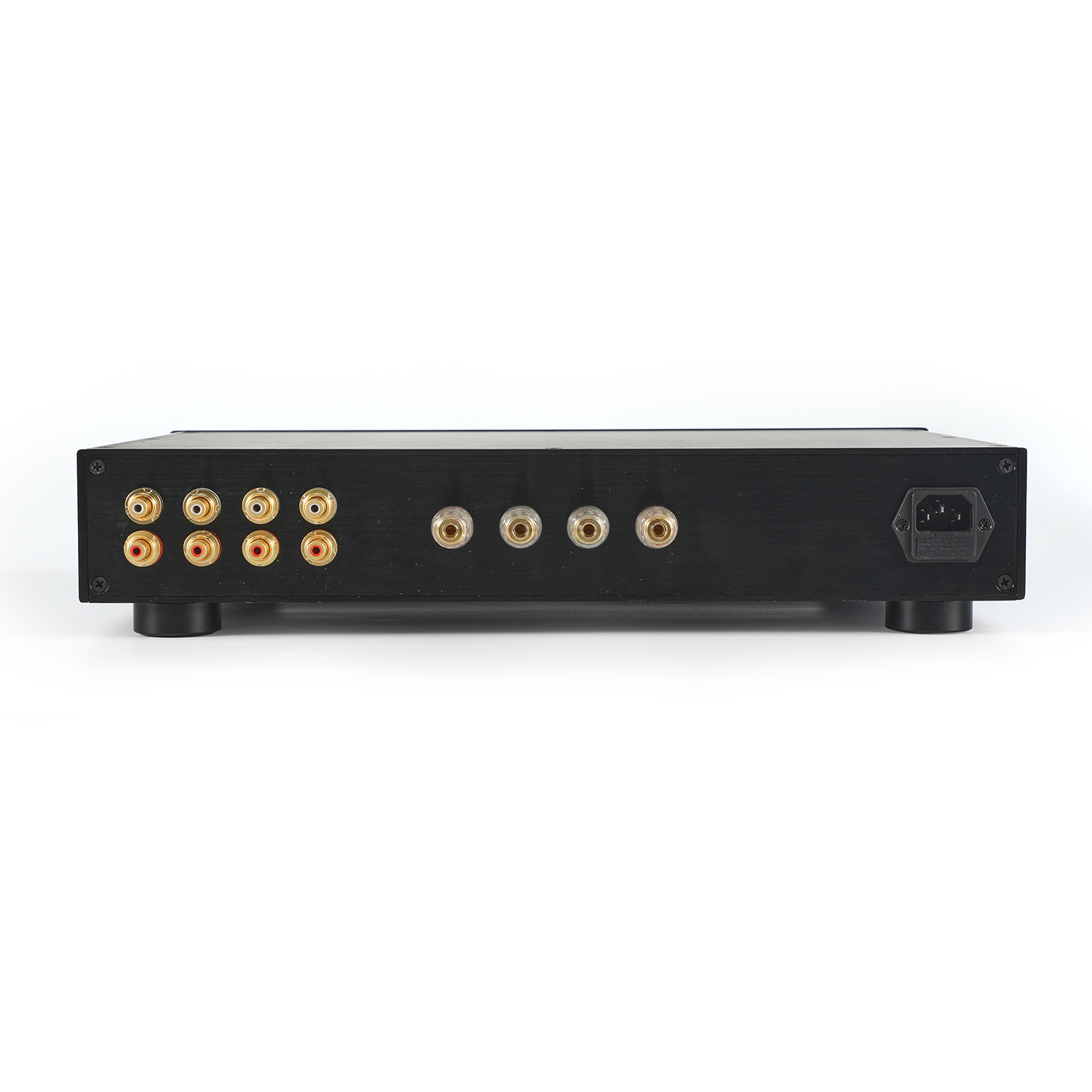

Amplifier support 4 way Audio input. support remote control volume. remote power on/off. remote choose input.

This amp with Power-off memory. that means when you power on it. the volume and inputs will keeps the same state as the last shutdown.

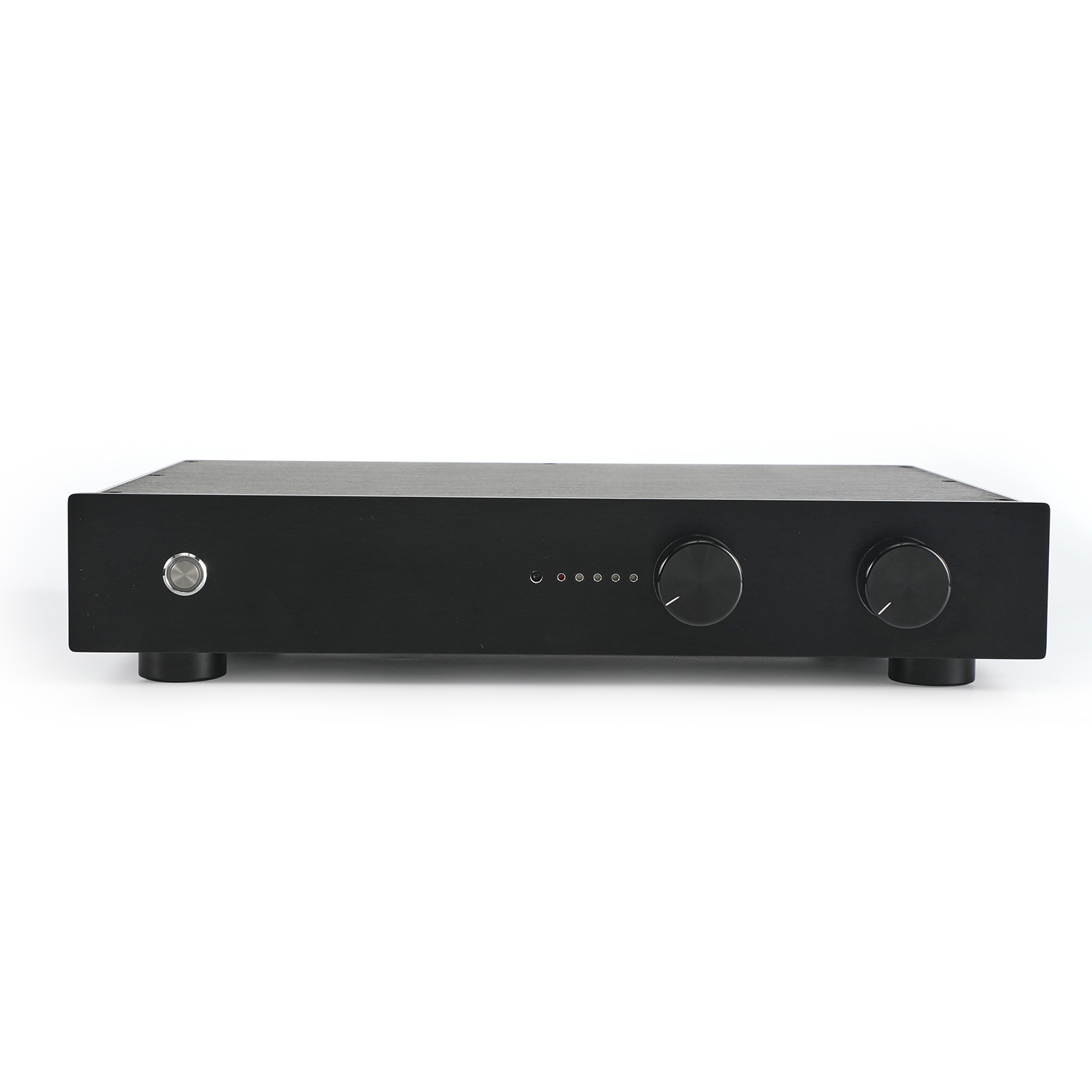

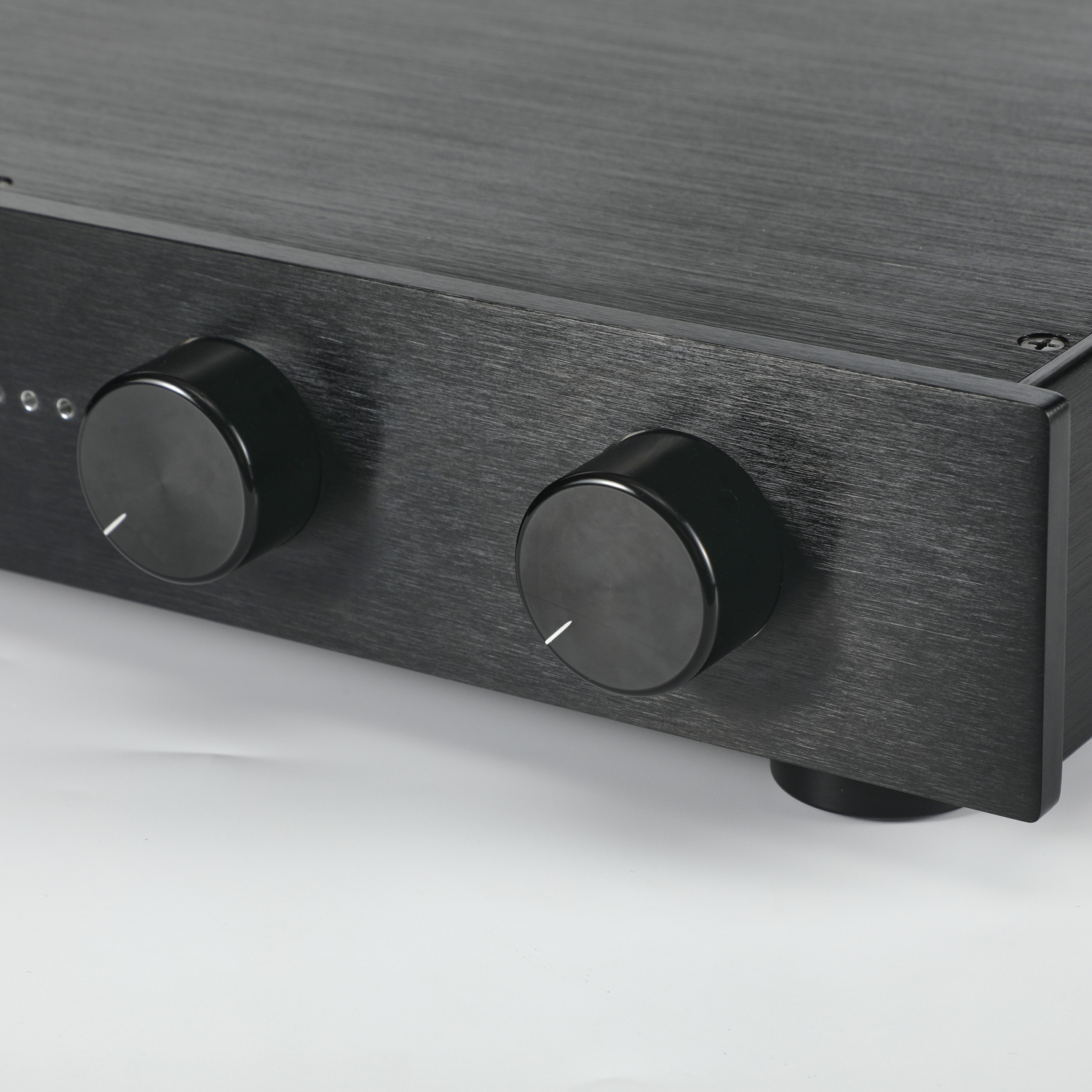

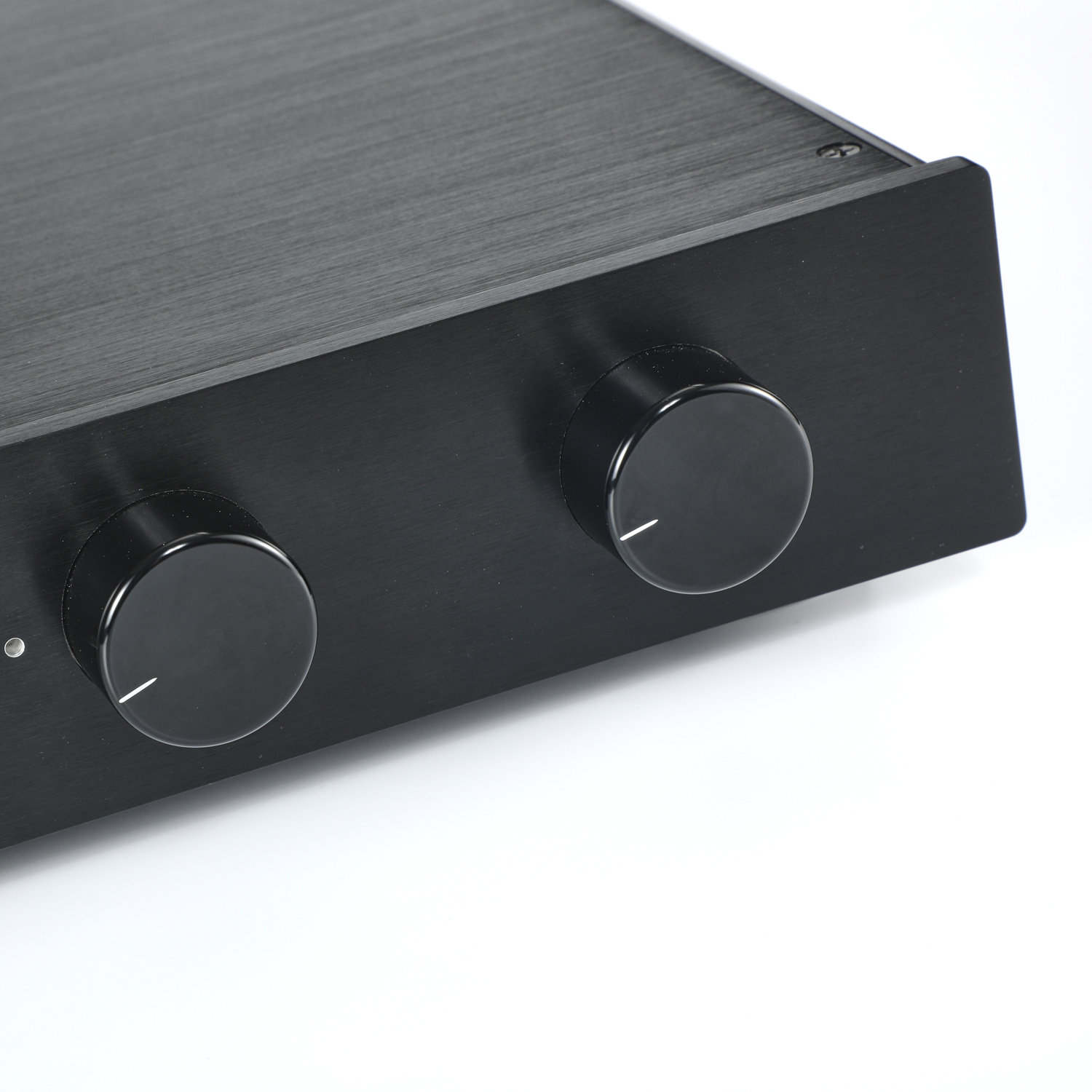

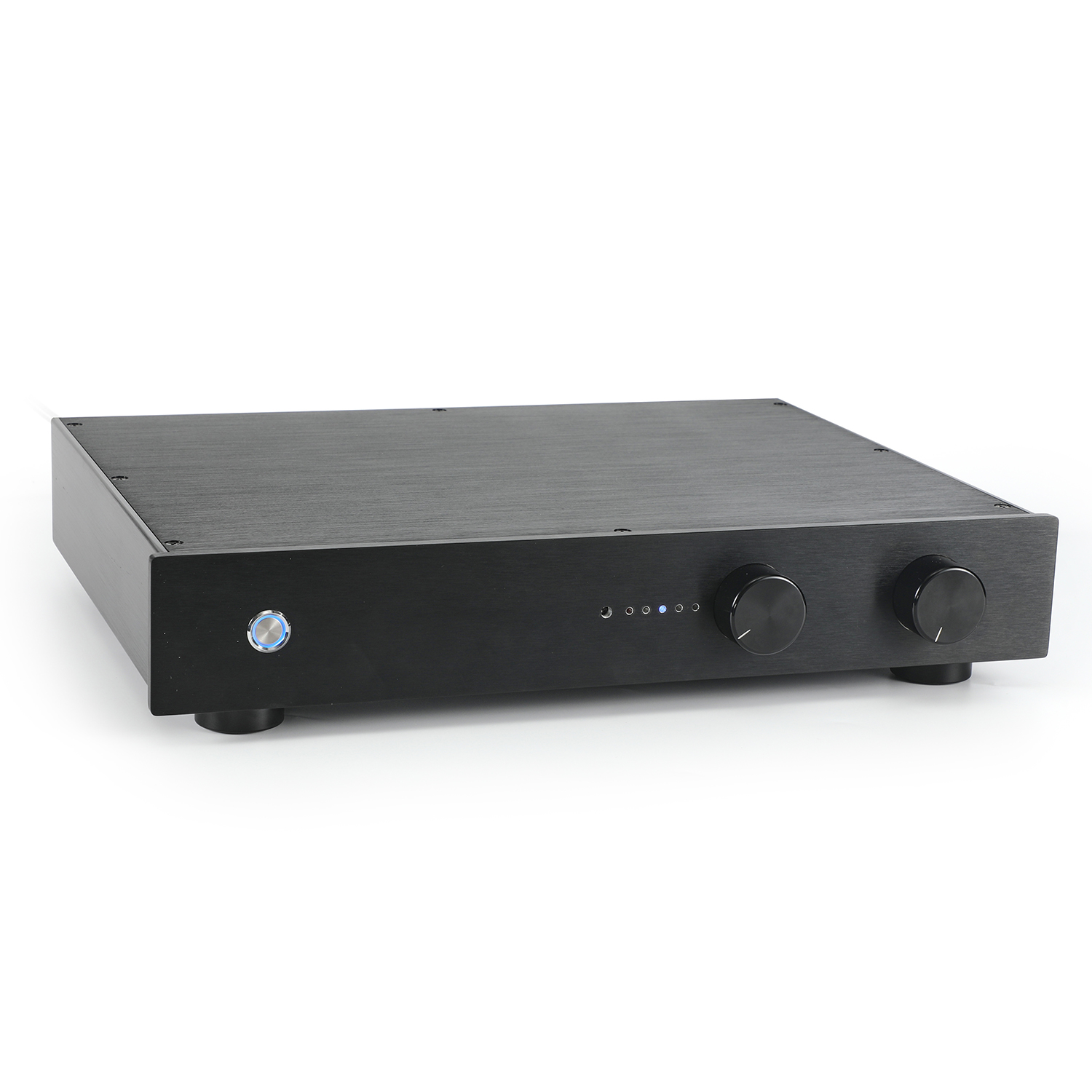

The Front panel Right knob is Manual volume adjustment, Rotate the left knob is Manual choose inputs. Press the left knob is Standby

Note: when you power on the amp. first press the left power switch. then need press one time the left one knob. or press the remote Standby Key.

Use ON MJ15024 power transistors, one pair of transistors each channel.
With speaker independent protection circuit.

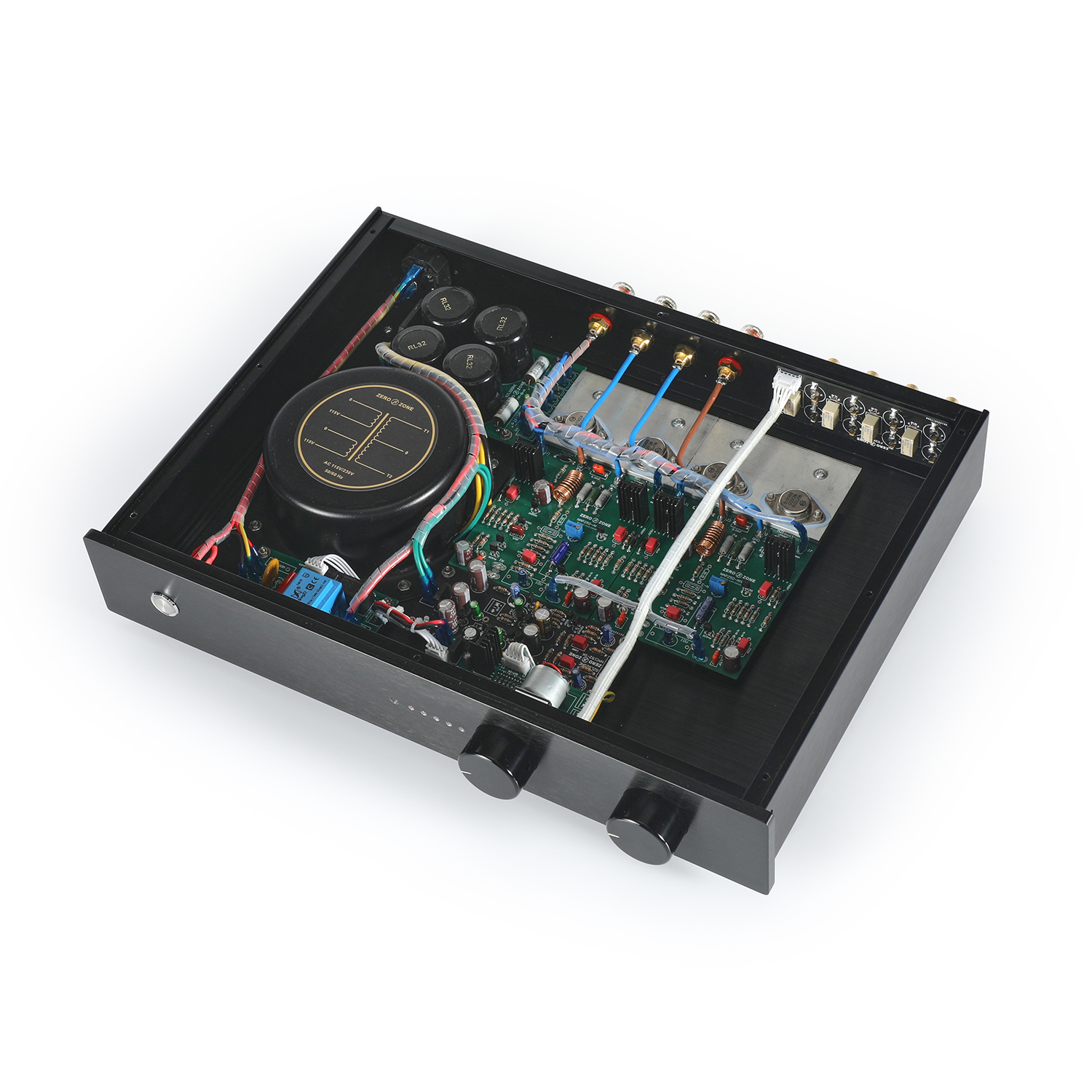

Use 200W copper Toroid transformer
Output power per channel: 80W at 8 ohms
Base On the famouse NAP250 power amplifier circuit.

NAP250 amp part

NAP250 is the high-end power stage, the original machine is priced at tens of thousands, the machine has a very beautiful sound, control, low frequency, analytical charm is very good! This replica version uses the same circuit and the same transistor as the original machine. It adopts a better layout and better grounding, so that the parameters, noise, charm, control and resolution of the board completely surpass the original machine. use NAP250 rear-end original parameter line, the power transistors uses 4 new 1% paired ON MJ15024. with absolute toxic sound The powerful transformer provides 200 watts of transient power.

NAC152 Preamp part

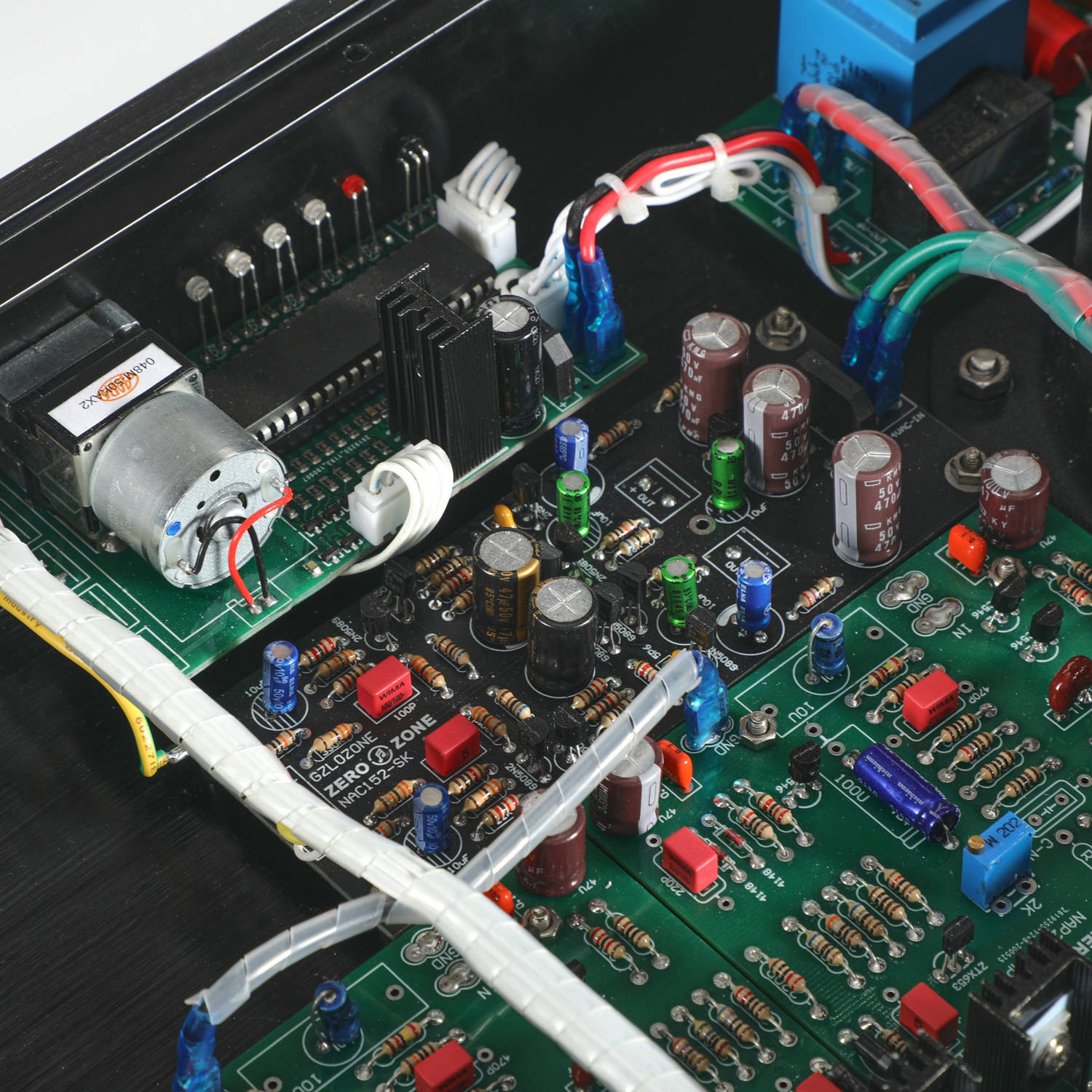

The circuit source of this machine is to the naim pre-stage NAC152, the line is exactly the same as the original machine; time aligned filter -> volume -> gain board; 729 time circuit with 2 levels of buffer. Original machine parameters, original line; mono mode design, physical 100% separation, left and right channels are not crosstalk, sound field positioning is very accurate! Core components: The transistor uses 2N5087/2N5089 used by the original machine; WIMA capacitor, Tan capacitor, 718 military 1% metal film resistor. Sound: The intermediate frequency is especially easy to get into the ear, high and low frequency and dynamic is very suitable! Coupling explanation about electrolytic capacitor We found that not all models of naim use tantalum capacitors for coupling. In order to find out that we have purchased a NAC112 preamplage earlier than NAC152, we chose NAC112 preamp because this preamp is electrolysis. Capacitor is coupled, not tantalum capacitor. After the pre-stage, we carefully compare it with the original NAC152 preamp. At the same time, we also invited several industry professionals to audition. After repeated audition and comparison, we finally concluded that The NAC112 with electrolytic capacitors is more warm and has a better musical taste. The NAC152 with coupling of tantalum capacitors is more straightforward and has lower sound. The sound of NAC112 is better because of the combination of NAC112 and NAC152. The circuit of the previous stage is basically the same. The biggest difference is that one tantalum capacitor is not used, so we also tried to use our electrolytic capacitors in the front stage of the NAC152 to make the coupling. The conclusion is the same as the previous two original machines. The use of electrolytic capacitors for coupling sounds is warmer and the flavor is better, so we used electrolytic electricity in this version of NAC152. Coupling, compared to everyone will definitely like the sound charm brought by the new NAC152 preamp

Material:
Full aluminum chassis.
Full aluminum feets + knobs

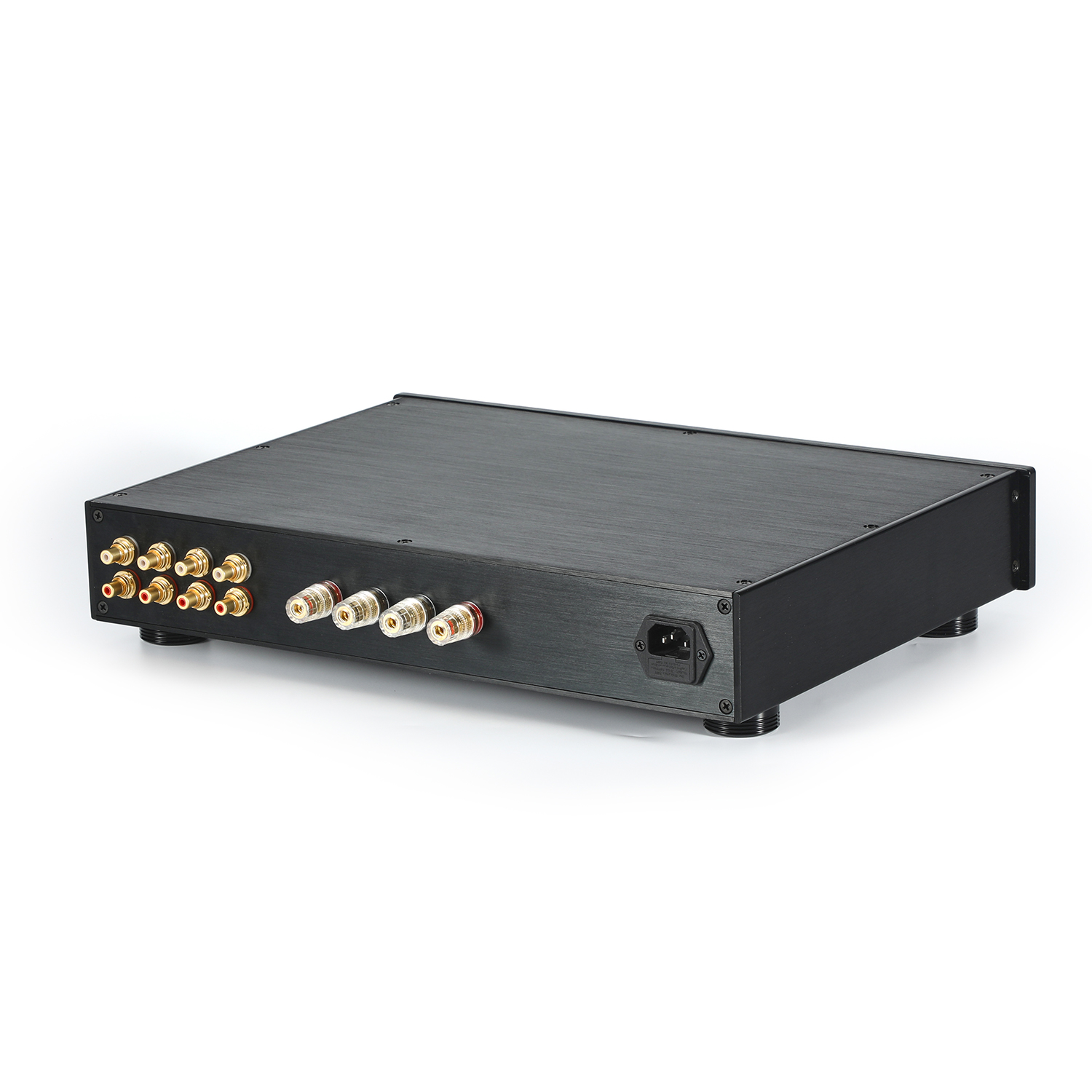

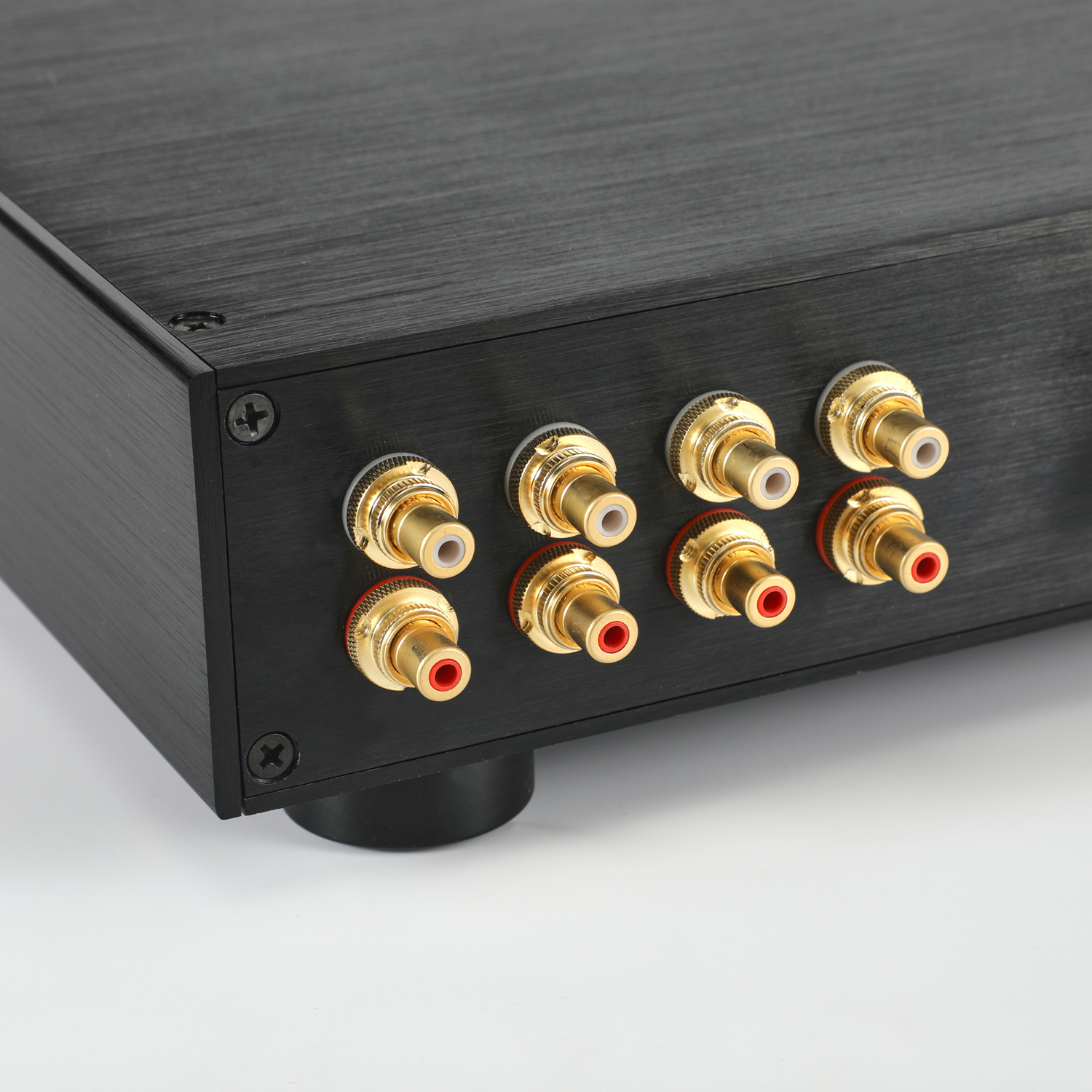

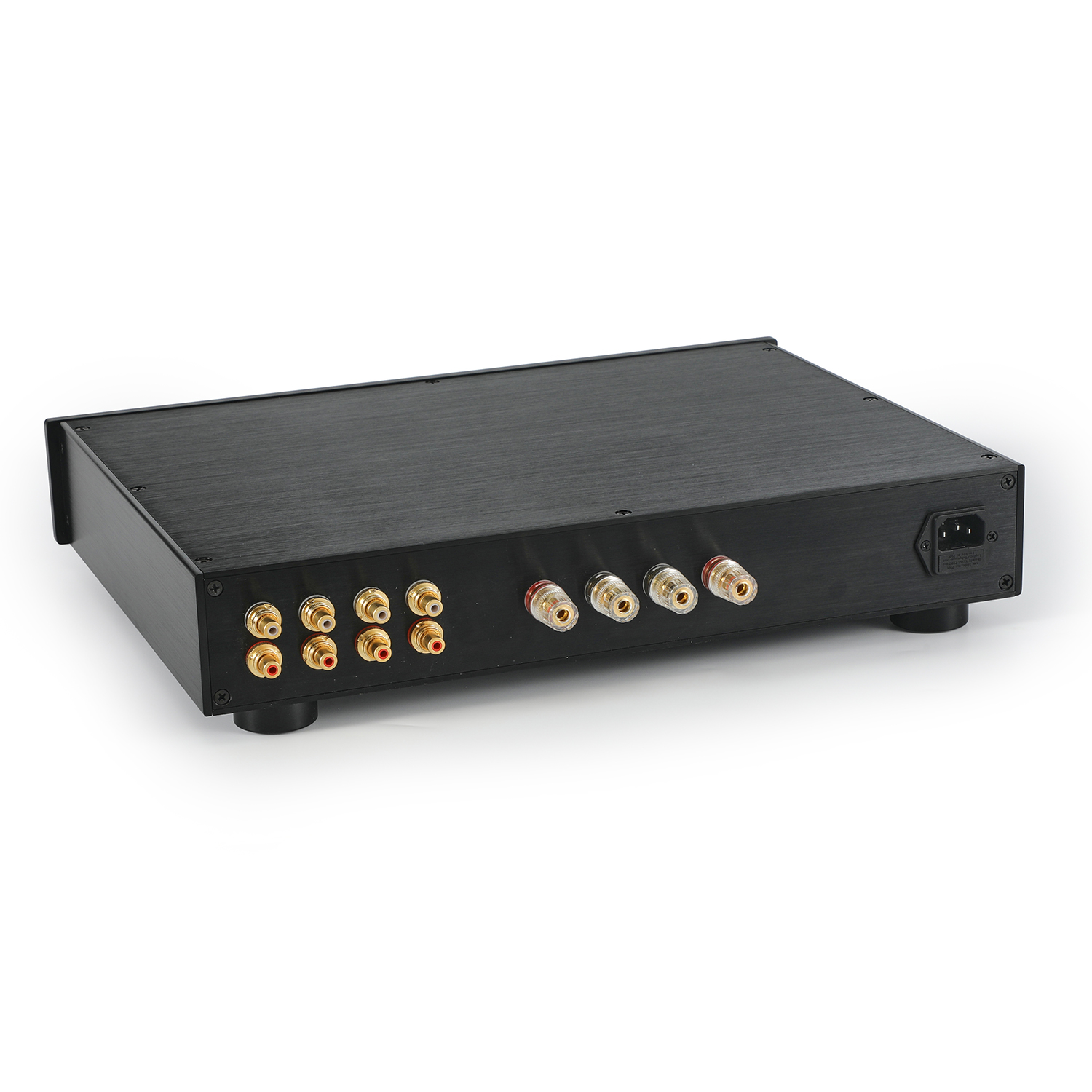

Tai Wan Gold-plated RCA+ Speaker posts.
High current stainless steel switch
The high-power signal line in the machine uses UK copper wire, and the small signal line uses Japan's CANARE.

Package include:
amplifier X 1

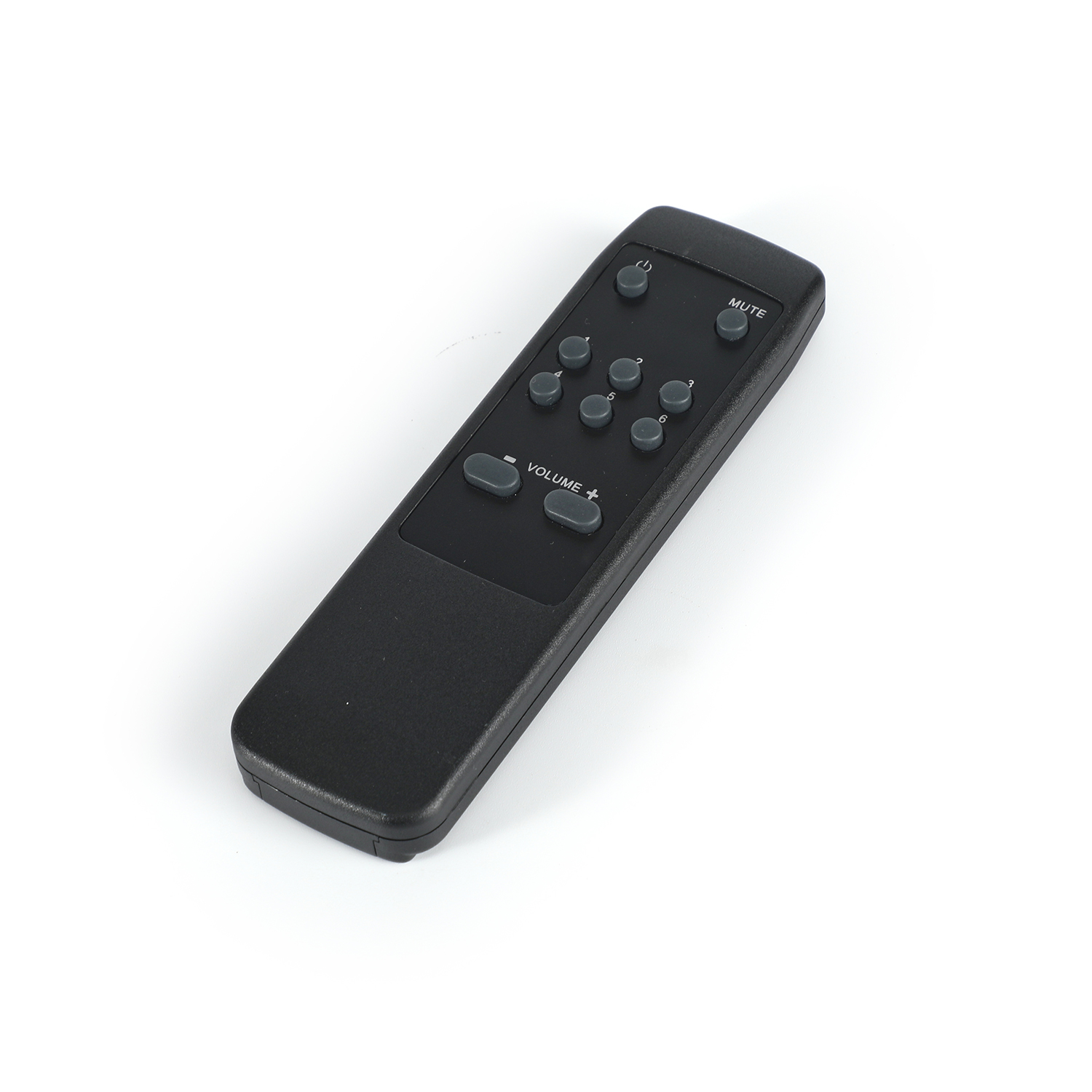

Remote X 1 (default is not include battery)

(NO IEC type mains power lead included)

Every amp has been professionally tested in perfect working order before shipping! To maintain a stable & reliable high quality, there's no huge stock keeping and handling time may take longer occasionally. Thank you.
