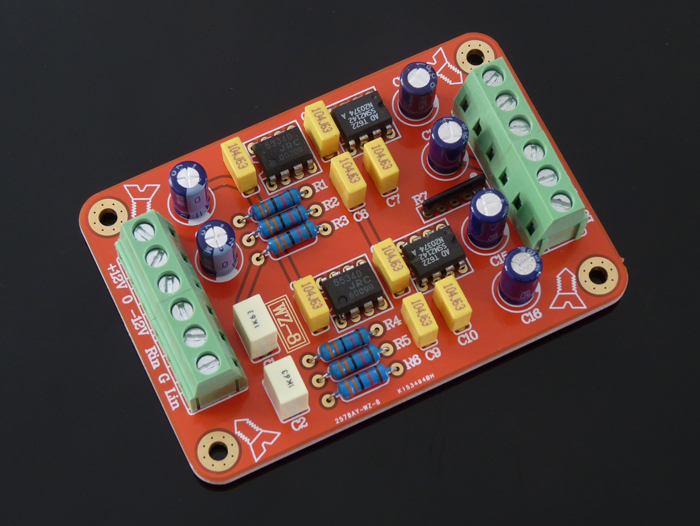

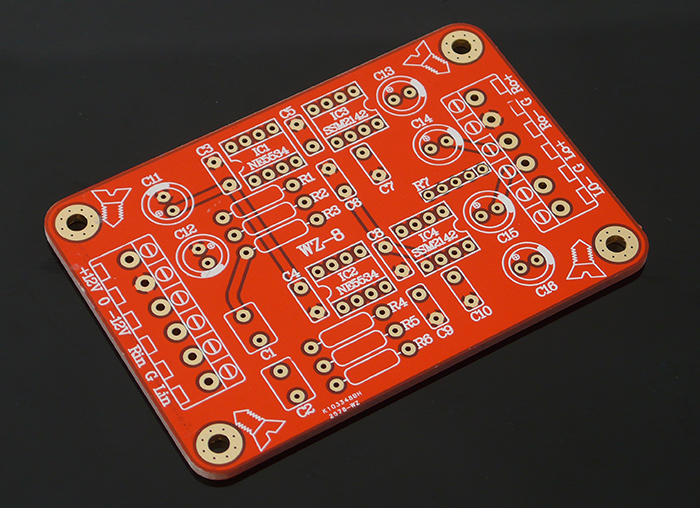

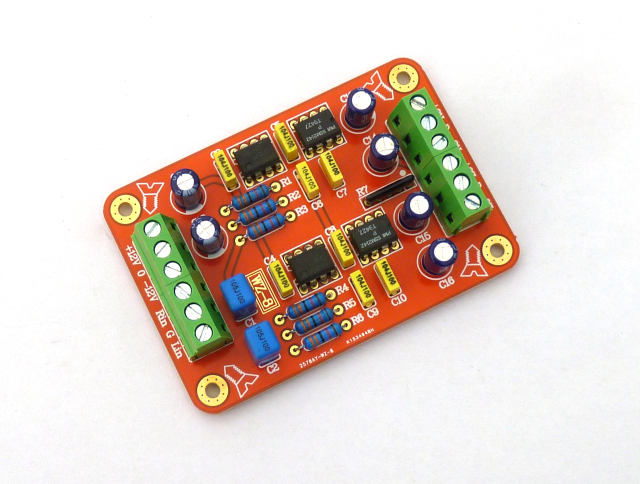

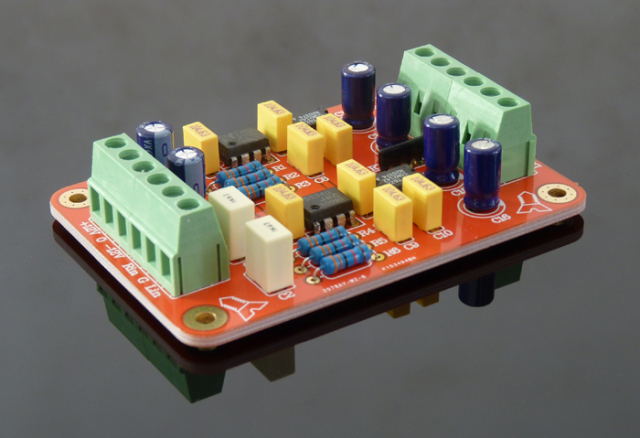

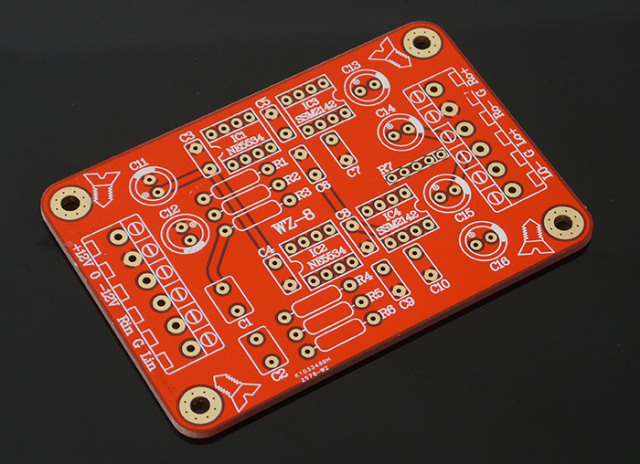

PCB size: length 82mm, width 56mm,
Assembeld board maximum height is about 20mm
The board is two-channel, the power supply voltage use DC±9-16V (recommended ±12V)
Input unbalanced signal, output balanced signal, suitable for the system where the audio source has no balanced output, and the back-end equipment only has balanced input.
The prototype for this circuit is from a Sonic Frantiers DAC, so we can't provide a wiring diagram .we will provide Installation Instructions for the PCB buyers.
Please note that the function cannot be reversed. If you require balanced input, unbalanced output. Please buy the following one:
BOM for PCB:
33Kx6, A104G row resistor x1
0.1uFx8, 1uFx2
47uF BP x4
100uF x2
NE5534 x2
SSM2142 x2
5.08mm pitch 3P terminal block x4
