TU1-EMP V2 6922+12AT7 Tube Headphone Amplifier PCB/DIY Kit/Finished Board (No Tube)

Name: TU1-EMP V2 6922+12AT7 Tube Headphone Amplifier PCB/DIY Kit/Finished Board (No Tube)
Brand: FYFAUDIO
SKU: 243
Price: 6.99 USD
Availability: InStock

0.0 (0)

$6.99 ~~$8.99~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

Summary:
TU1-EMP V2 version is based on EARMAX SE, Earmax Pro circuit model developed, potentiometer and headphones plug can be installed, can also be directly installed streaking; power supply only need double 18V 30W small transformers, easy to do.

TU1-EMP V2 amp is base on Earmax. it is suitable for driver 300-600ohm headphones.

PCB size: 160mm*100mm

Input voltage: AC 18V--0--18V (transformer power is not less than 30W)

Use tube model: 12AT7 in the middle, 6922 left and right

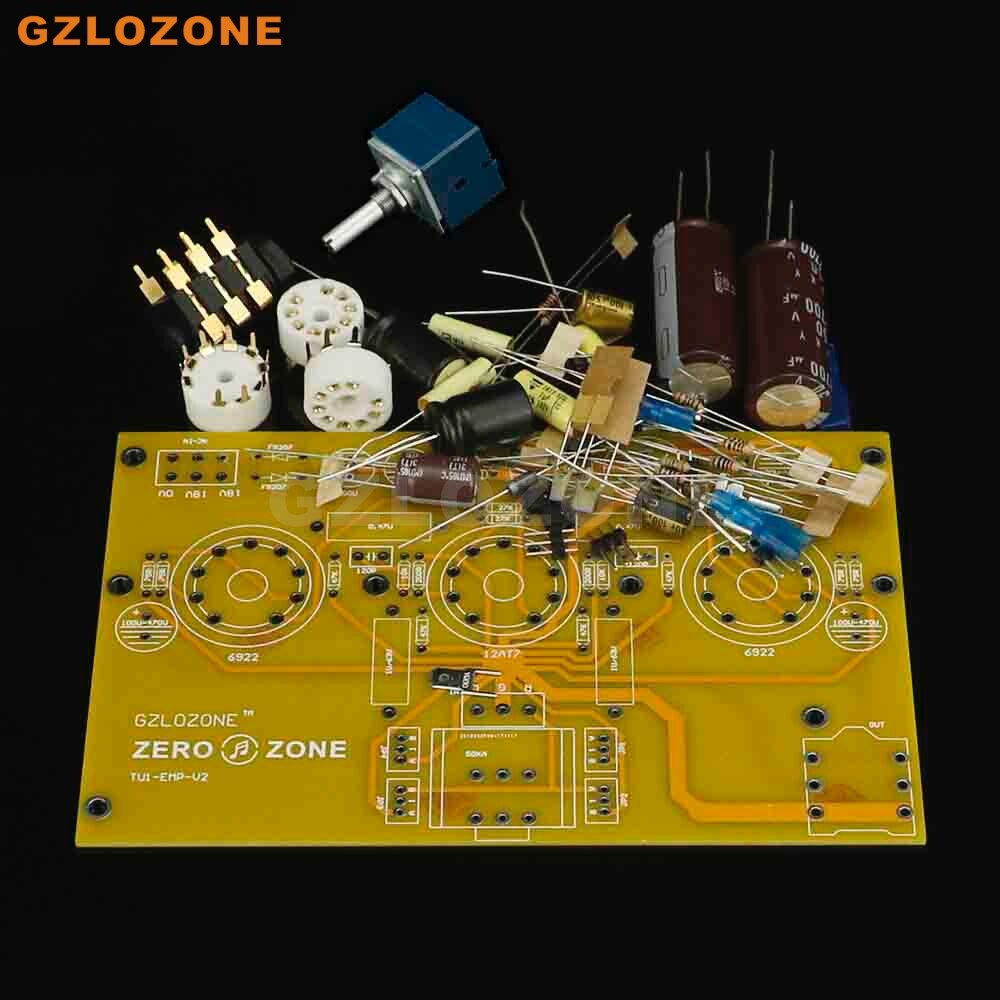

NOTE: We have PCB or DIY kit or Finished board(Optional)

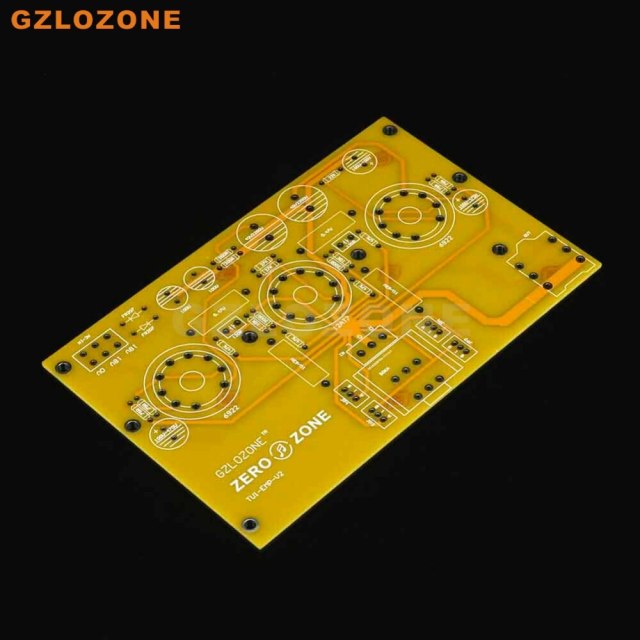

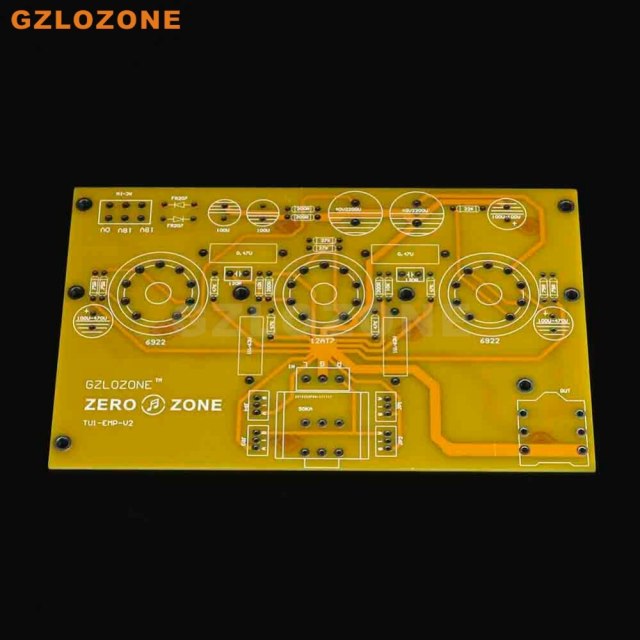

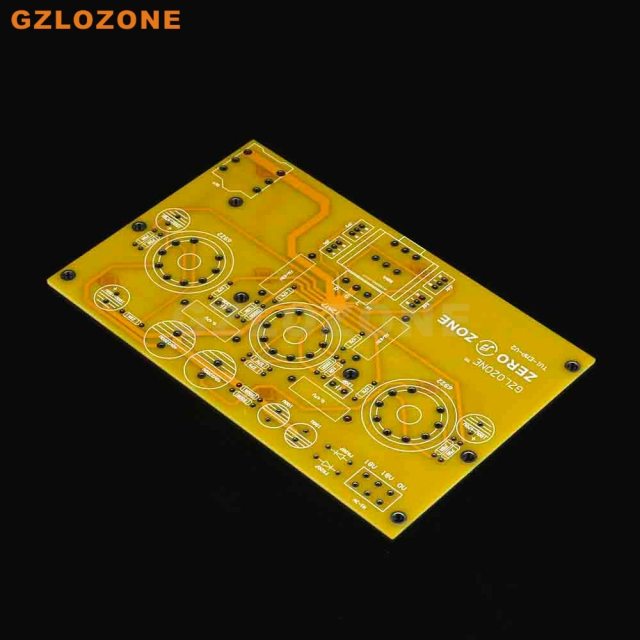

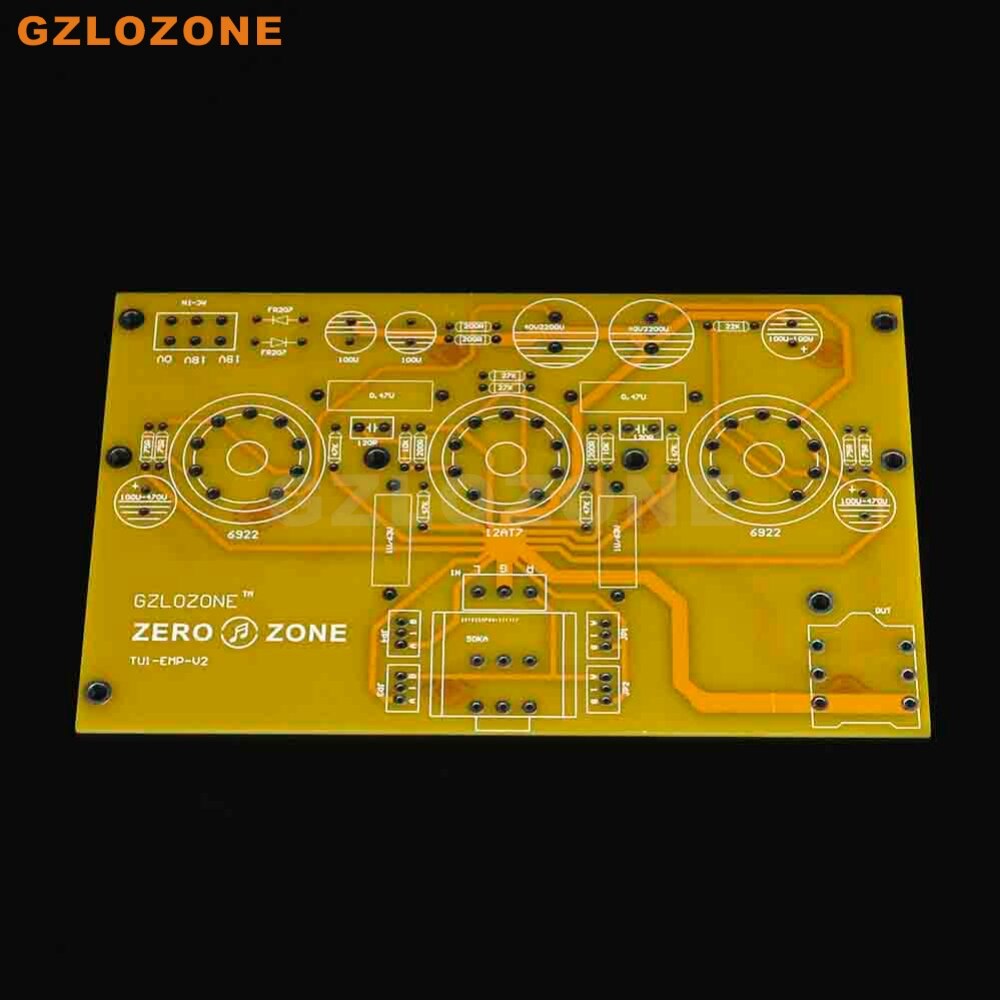

◆ PCB ---- Bare board PCB without any parts.

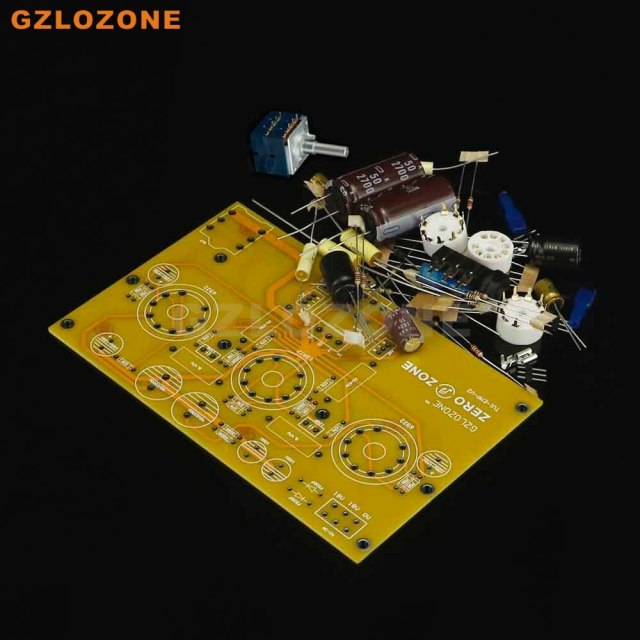

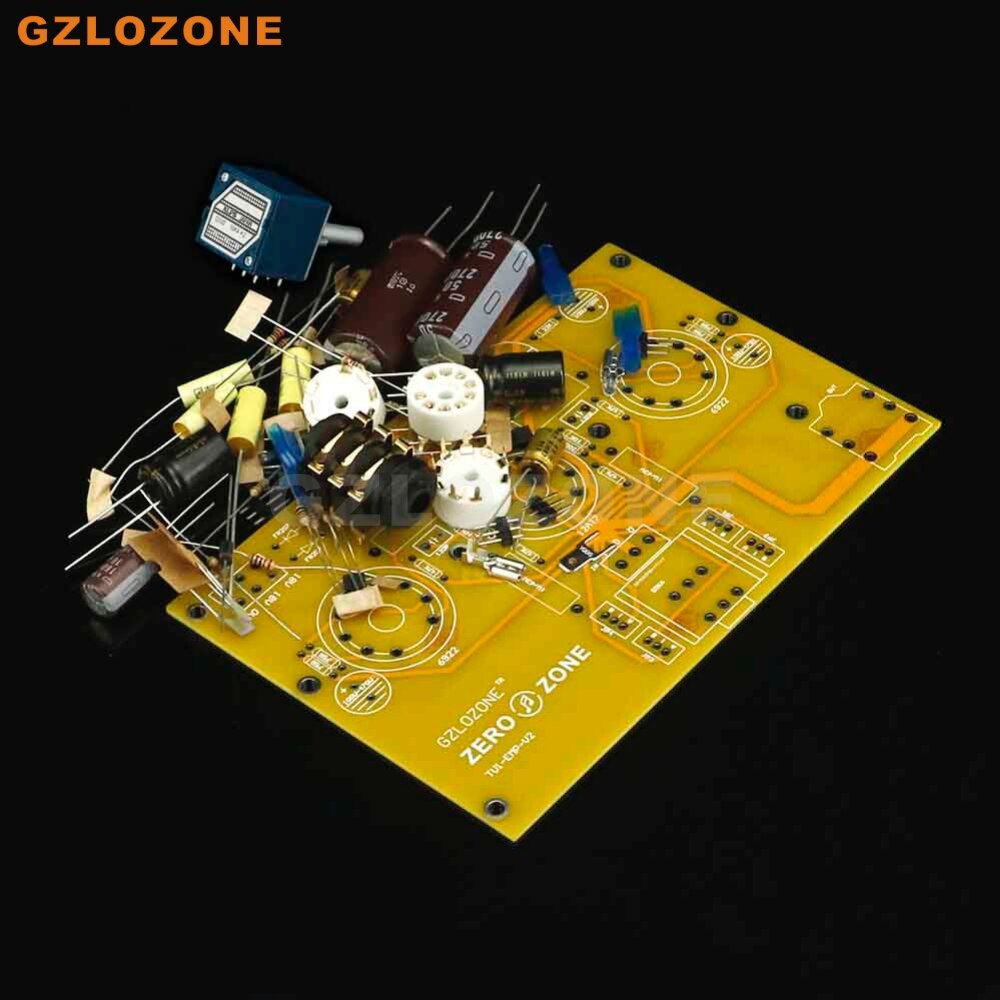

◆ DIY kit ---- All parts need you to solder and test it. (Default price is not include tubes.)

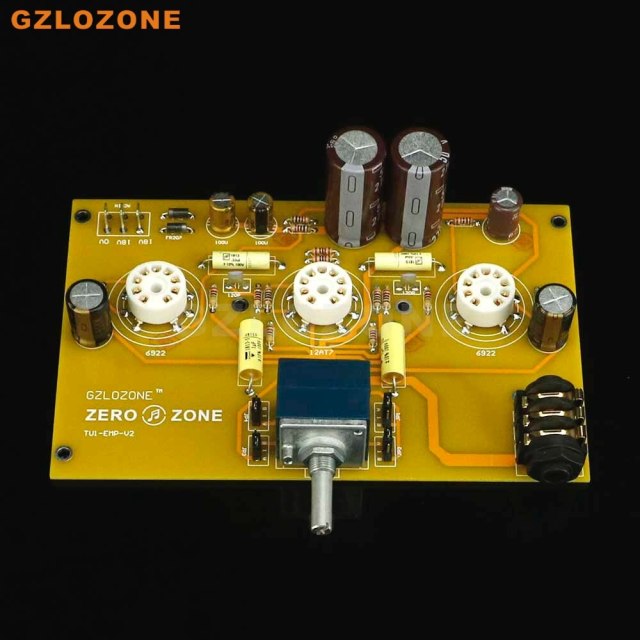

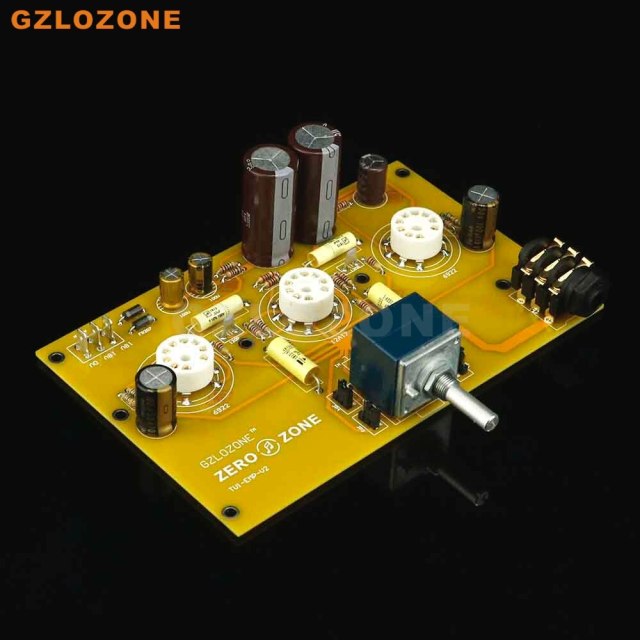

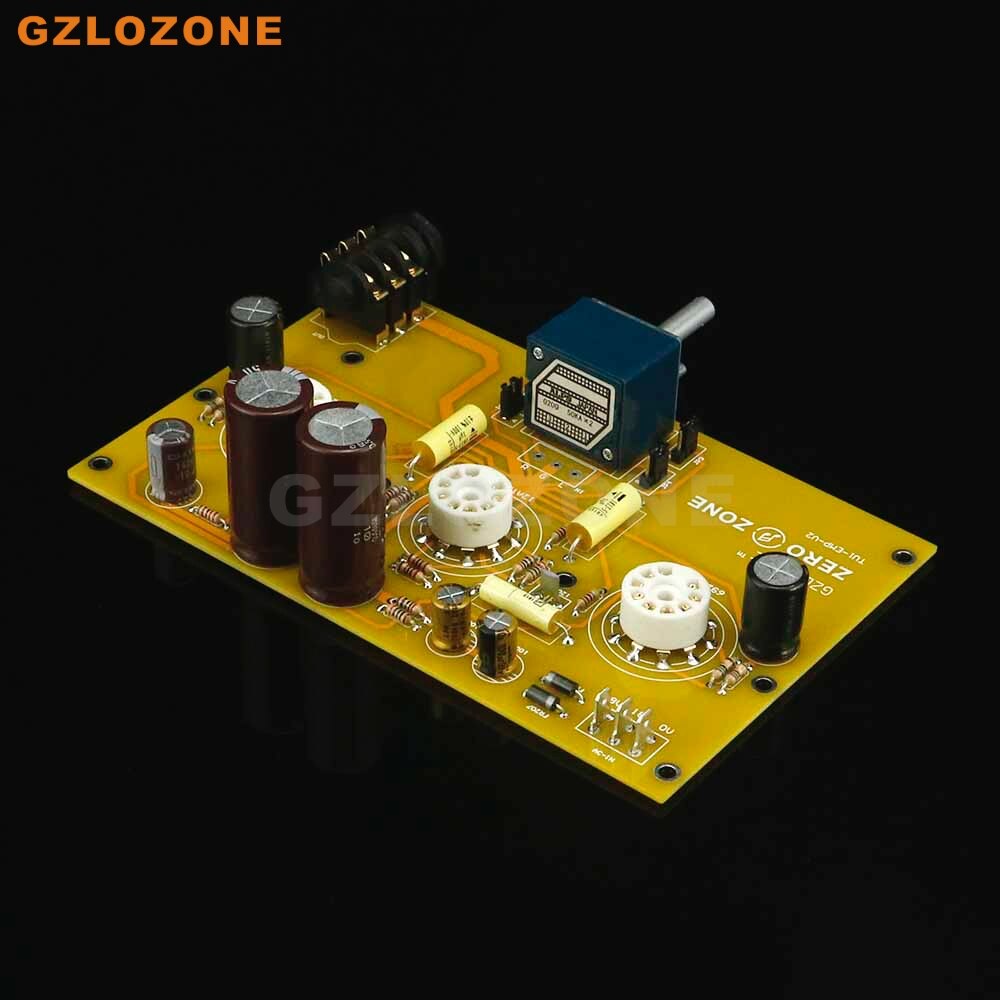

◆ Finished board ---- All parts have been welded and tested OK. (Default price is not include tubes.)
