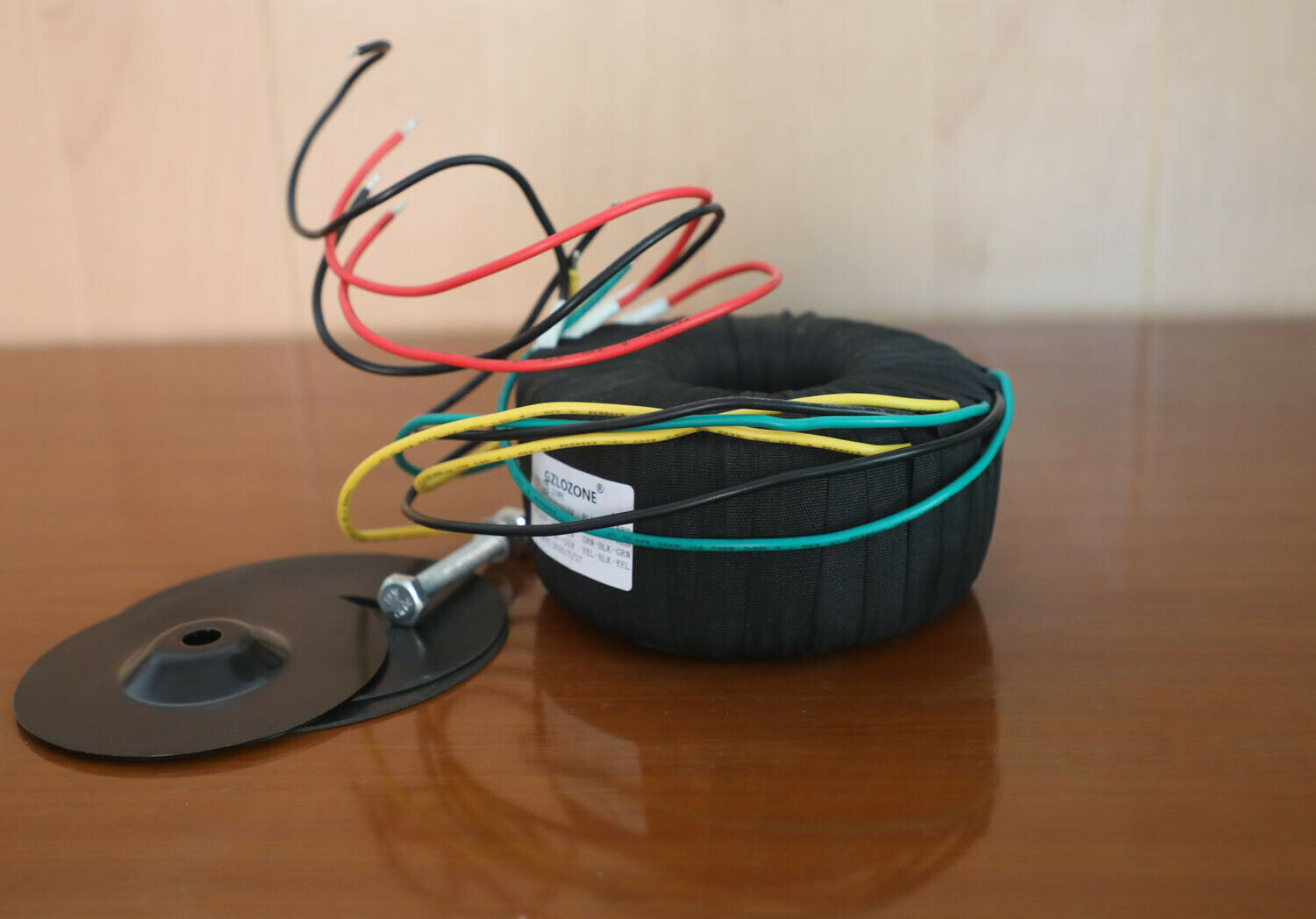

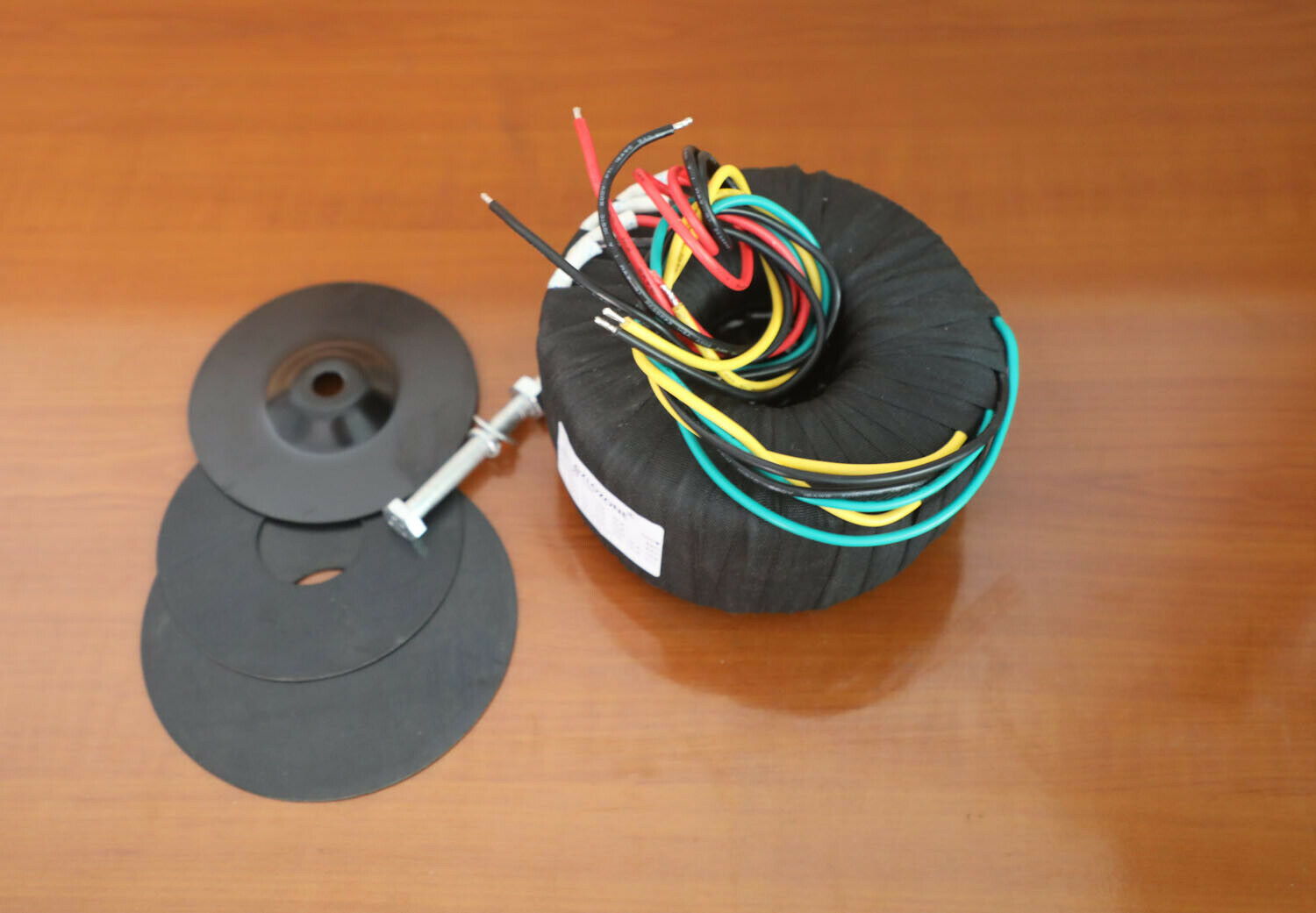

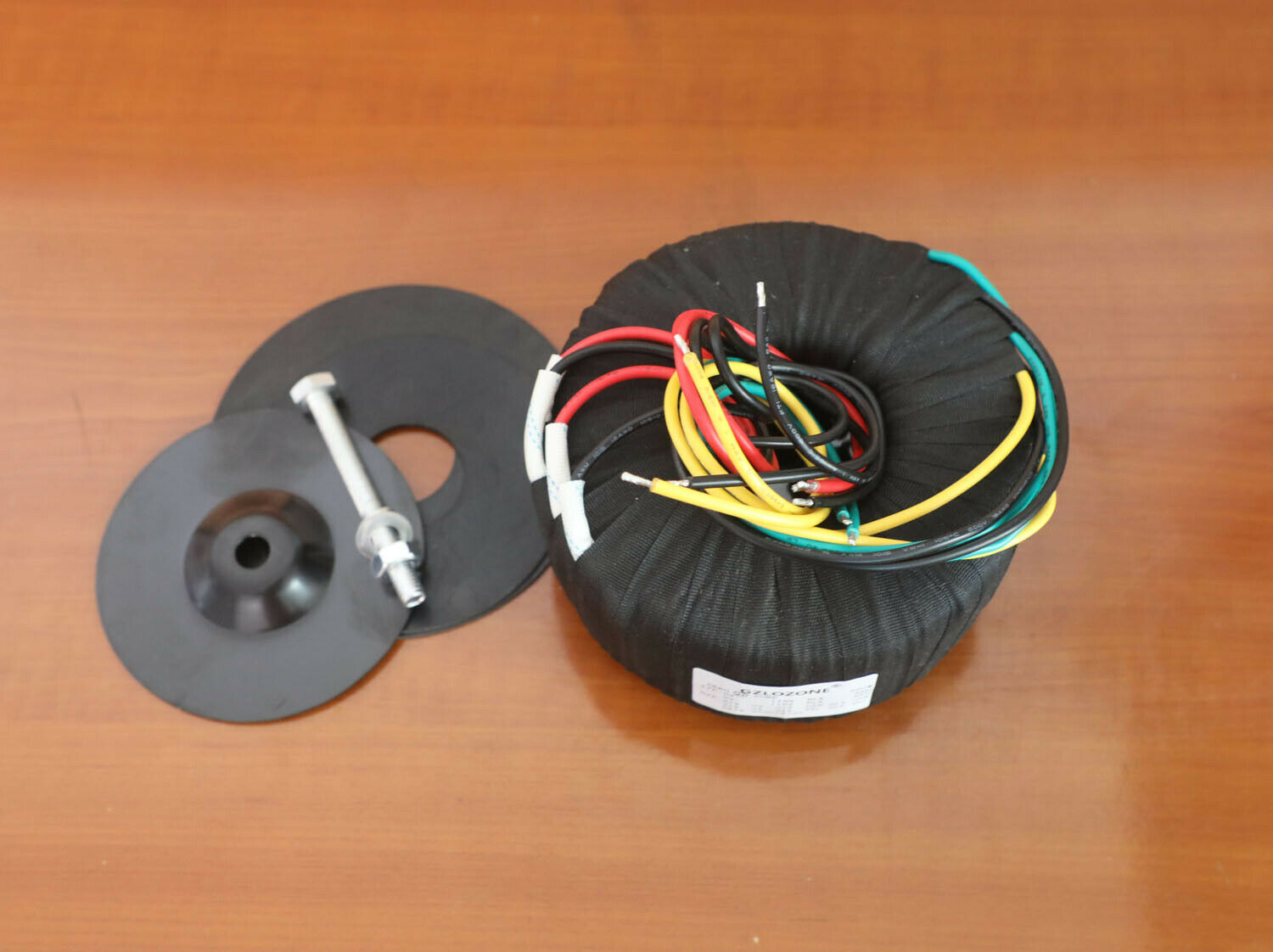

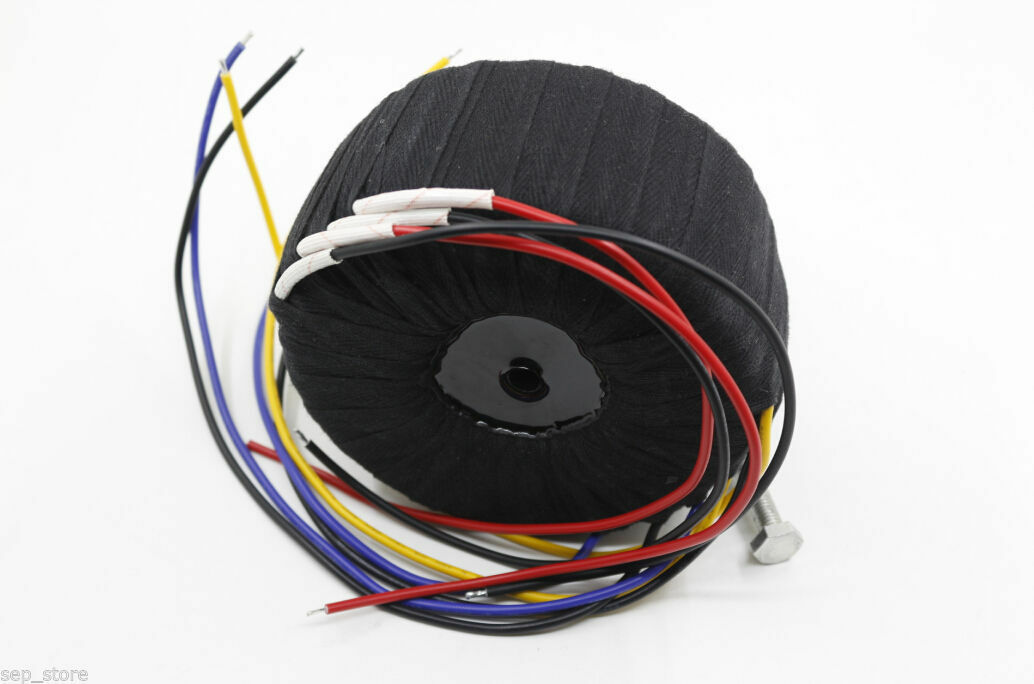

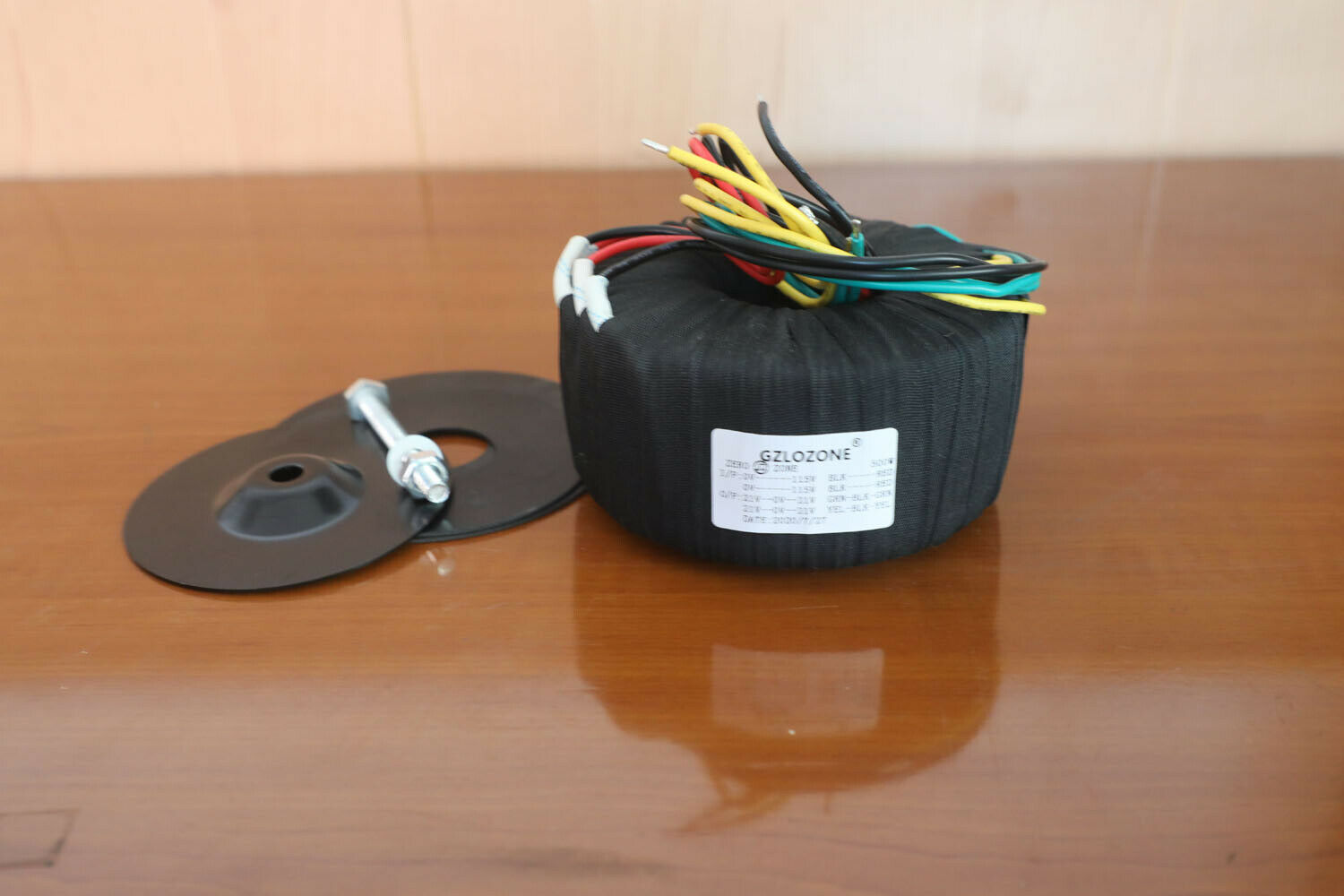

ZEROZONE 115V/230V 500VA Black Cloth Toroid Transformer

Name: ZEROZONE 115V/230V 500VA Black Cloth Toroid Transformer
Brand: FYFAUDIO
SKU: 178
Price: 48.5 USD
Availability: InStock

0.0 (0)

$48.50 ~~$54.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

ZEROZONE 115V/230V 500VA Black Cloth Toroid Transformer

Size: 135mm*70mm (D*H)

Weight: about 5.5kg/pcs

Grade A core , 4N oxygen-free copper with black cloth and central fat filling process, effective anti-vibration.
Output voltage: We have the following output voltages to choose from.

Primary: 0-115V 0-115V ( can connect as 115V or 230V version)

Secondary:

Type 1:
1: AC28V-0-AC28V 4.46A
2: AC28V-0-AC28V 4.46A
-----------------------------------------------------------
Type 2:
1: AC21V-0-AC21V 5.77A
2: AC21V-0-AC21V 5.77A
3:12V-0-12V (0.6A)
-----------------------------------------------------------
Type 3:
0-18V 13.5A
0-18V 13.5A
0-15V 0.5A
0-15V 0.5A
-----------------------------------------------------------
Type 4:
1: AC19V-0-AC19V 6.6A
2: AC19V-0-AC19V 6.6A

If you need other voltage, we can accept custom-make.

Package include:
Transformer X 1
Fix screws X 1
